6.10 Angle of tilt of the seat cushion
• Electrical Adjustment
For the electrical adjustment of the tilt of the seat base, refer to pages 34 or 36 of the owner’s manual according to the
corresponding command.
• Manual Adjustment
To adjust the tilt angle of the seat it is recommended to make this operation
with two persons. For this it is necessary to:

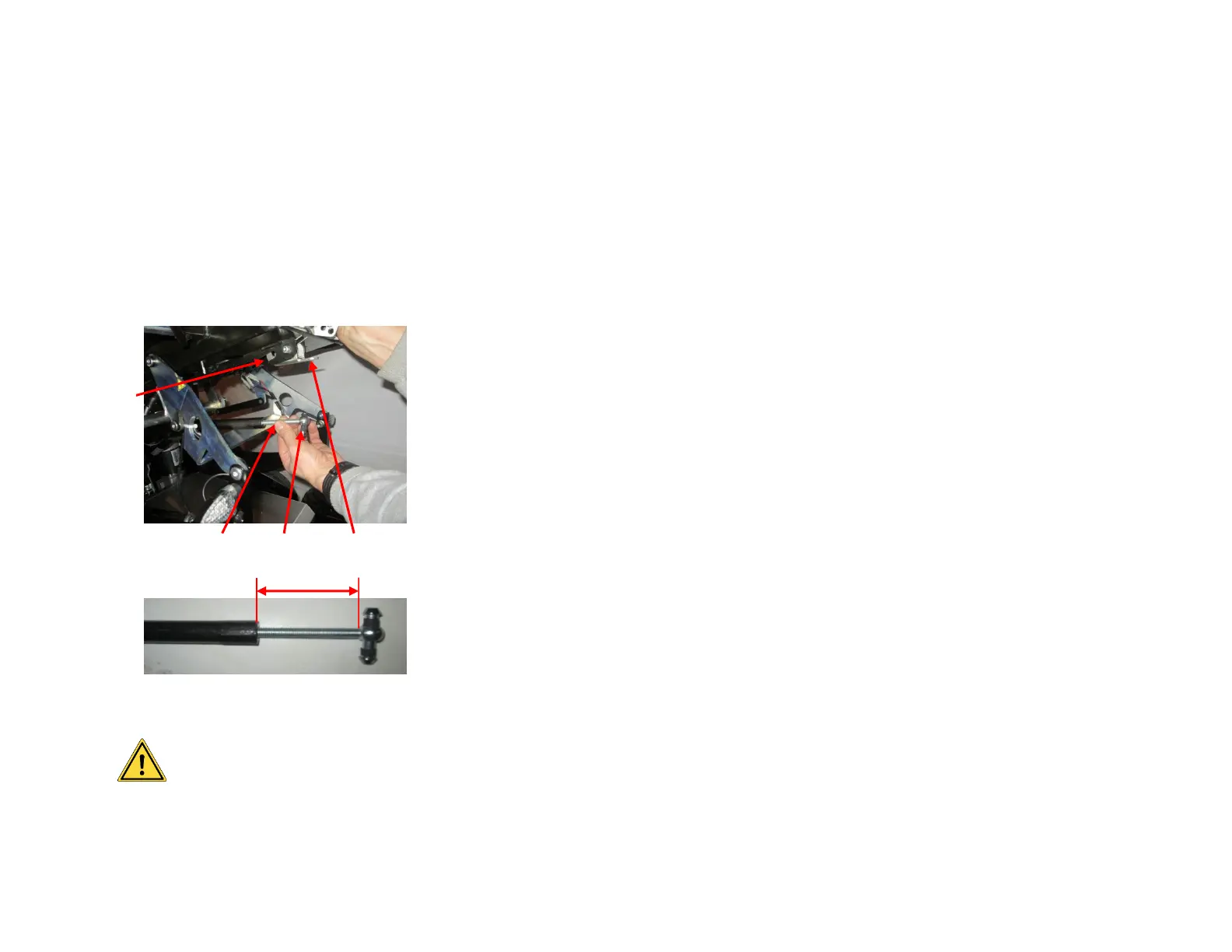

1 - Release the adjusting rod by pushing up the metal tab 1 located at the front of
the seat cushion and maintain the seat bottom to the top.
2 - Screw the rod 3 toward the rear to reduce the tilt or the Unscrew to increase the
tilt angle of the seat.
3 - Again push on the tab 1 and then refit the pin 2 in its housing 4 and release the
tab 1 to lock the axis 2.
Note: For safety reasons, the exposed length of the thread on the adjusting
rod should never be more than 7.5 cm (3’’)
Caution:
The free length of the thread of the rod for seat tilt adjustment should never be higher
than 7.5 cm (3’’) Risk of damage and injury.
