6.12 Tilting the backrest
To allow the occasional transport in a low vehicle, the wheelchair Magix provides the ability to fold the backrest on the
base of the seat.

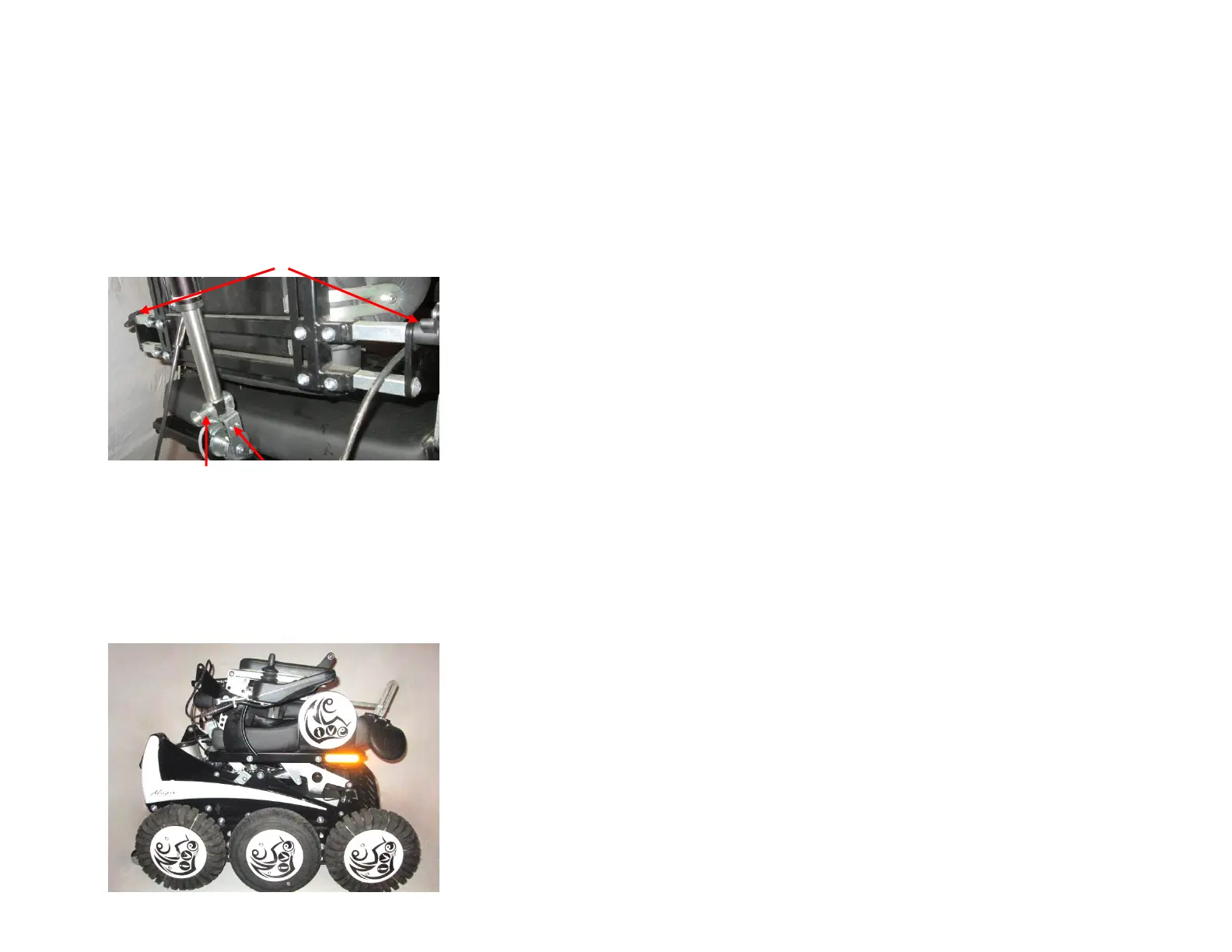

To fold the backrest you must:
• Unscrew and remove the 2 thumbscrews #1
• Remove the pin 2 (refer to the previous chapter)
• Fold down the backrest on the seat base.
Reverse the instructions to put the seat back in place by lifting the backrest to
put the thumbscrew. Caution: Do not pinch the cable of the command.
Note: The motors of the chair are flanges or blocked if the bracket 3 is tilted to the rear. To roll the wheelchair
with the command and the backrest folded up, it is necessary to ensure that the bracket 3 is in the raised
position or rotated toward the front.
