Safety and information
Indoor range: up to 30 m (optimal conditions). The range is strongly
dependent on local conditions, such as the presence of metals. For
example, the thin metal coating in Low-emissivity (Low-E) glass has
a negative impact on the range of radio signals.
There may be restrictions on the use of this device outside the EU. If
applicable, check whether this device complies with local directives.
Maximum load: Never connect lights or equipment that exceed
the maximum load of the receiver, as it can result in defects, a short
circuit or fire.
Life-support: Never use Nexa products for life-support systems or
other applications in which equipment malfunctions can have life-
threatening consequences.
NEXA AB, DATAVÄGEN 37B, 436 32 ASKIM, SWEDEN
info@nexa.se | www.nexa.se
ENGLISH

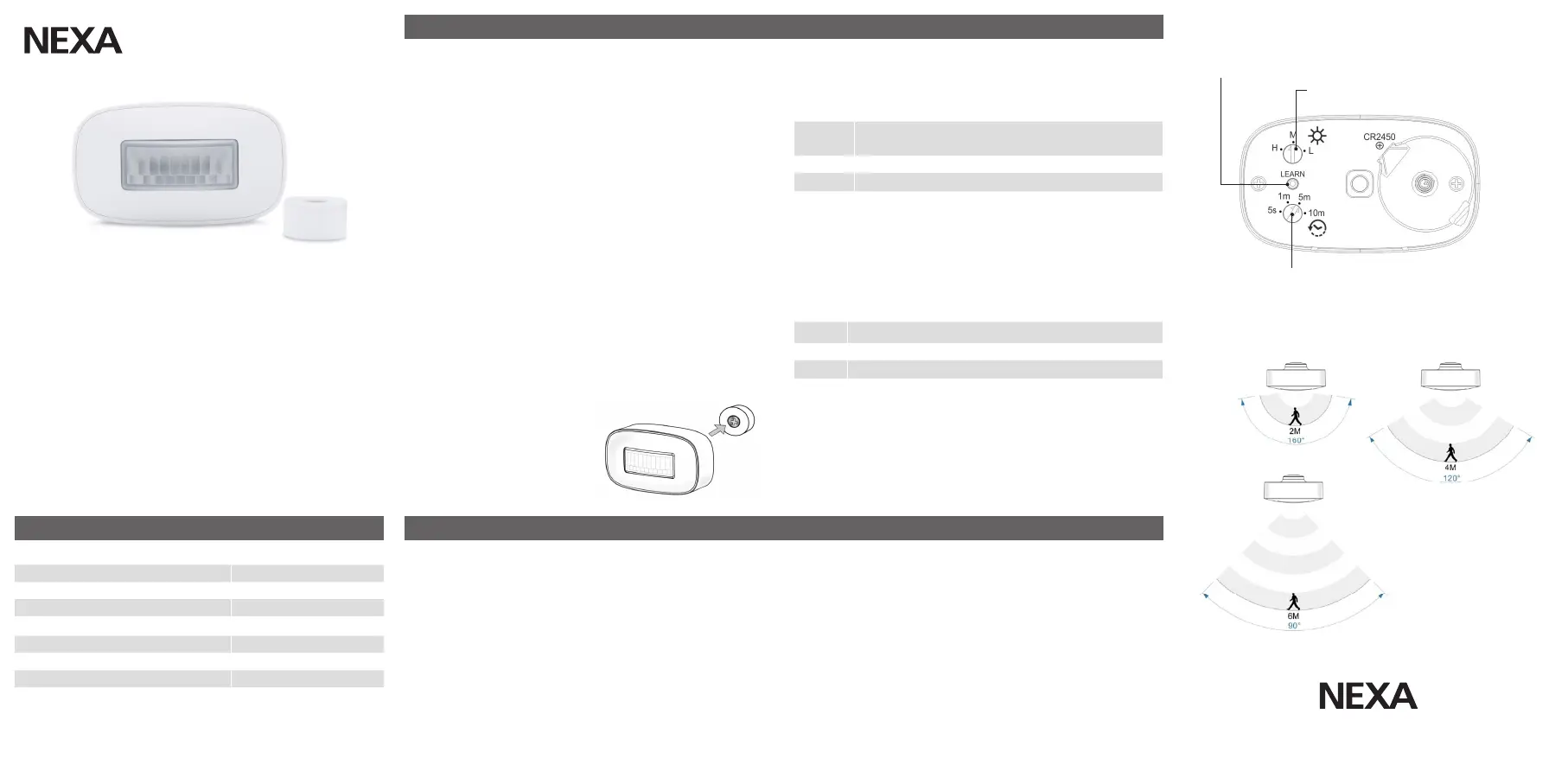

LUX setting
Learn button
Adjustment knob timer
BACK
Interference: All wireless devices may be subject to interference,
which could affect performance. The minimum distance between 2
receivers should be at least 50 cm.
Repairing: Do not attempt to repair this product. There are no user-
serviceable parts inside.
Water-resistance: This product is not water-resistant. Keep it dry.
Moisture will corrode the inner electronics and can result in a short
circuit, defects and shock hazard.
Cleaning: Use a dry cloth to clean this product. Do not use harsh
chemicals, cleaning solvents, or strong detergents.
Environment: Do not expose the product to excessive heat or cold,
as it can damage or shorten the life of electronic circuit boards.
Indoor wireless motion detector that trigger your receivers on
detection of movement. Not compatible to dimmer receivers.
NOTE: Before use, the back cover must be opened and the
protective strip beneath the battery must be removed.
PROGRAMMING RECEIVERS
1. Set the receiver to learning mode.
2. Press the learn button once.
PROGRAMMING CONFIRMATION
If a light is connected to the receiver, this flashes twice.
DELETING A RECEIVER
1. Set the receiver to learning mode.
2. Press the learn button twice.
CONFIRMATION OF DELETION
If a light is connected to the receiver, this flashes twice.
INSTALLATION
1. Use a cross head screwdriver to mount the magnetic base on a
flat surface.
2. Attach the motion sensor to the magnetic base making sure the
detection lens is not upside down, see picture.
3. Adjust angle.
LUX SETUP
Adjust the light sensitivity to ambient light level. The motion sensor
will only trigger when the lux level is lower than the initial lux
setting.
H (high)
Detecting movement in all ambient light level
(Use this mode when connecting a doorbell)
M (medium) Detecting environment brightness level under 20 LUX (±5 LUX)
L (low) Detecting environment brightness level under 10 LUX (±5 LUX)
5 s ”OFF” is sent 5 seconds after motion detection
1 m ”OFF” is sent 1 minute after motion detection
5 m ”OFF” is sent 5 minutes after motion detection
10 m ”OFF” is sent 10 minutes after motion detection
DELAY OF TIMER SETUP
Each time you trigger the receiver, the timer will start to countdown
and turns OFF the receiver once it reaches to 0 minute.
If the motion sensor detects another object during the first
activation of the timer, the timer will extent and countdown from the
very last movement detected.
MIMST-1703
MOTION DETECTOR
For indoor use
MIMST-1703
Battery 1 x 3 V CR2450
Frequency System Nexa (433,92 MHz)
Range up to 30 m
Power consumption < 1 W (standby)
Environment temp. 0–40 °C
IP rating Indoor use
Max ERP 10 mW
Size 37,5 x 65 x 31 mm
TEKNISK DATA / TECHNICAL DATA
Declaration of conformity is available at www.nexa.se
