GEOM12 RIGGING
GEOM1210-I - GEOM1220-I Page 9 / 20
GEOM12 RIGGING

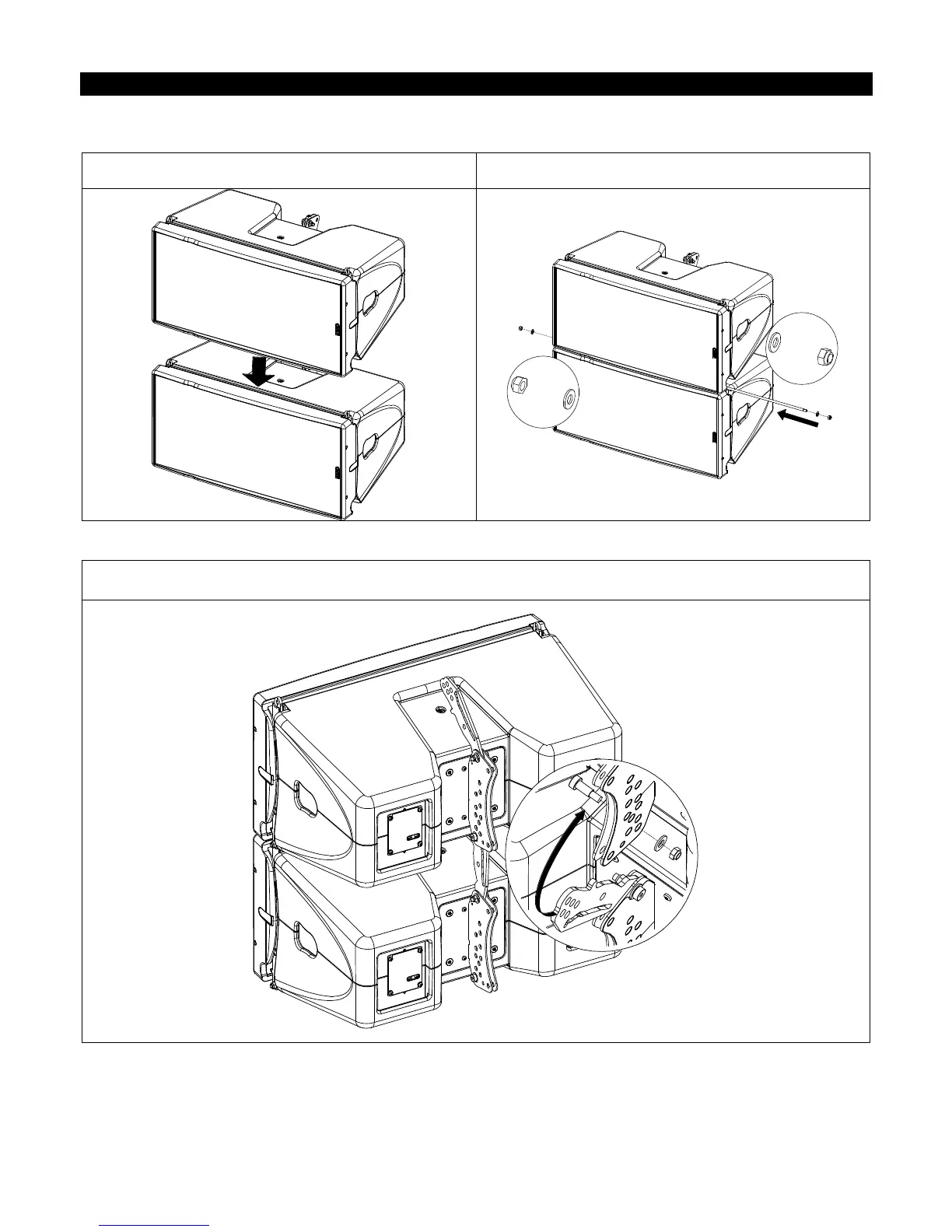

Assembly
Front
Positioning 2x GEOM12-I.
Connect both cabinets by inserting the axis through front holes
and secure axis with brake nuts.
Back
Adjust the appropriate inter-angle value with the Linkbar and secure with the provided screws.
Screws: 1 shoulder screw (D10x20), 2 washers (M10), 1 brake nut (M8).
