Nexus 21 L-65 - Page 11

11
23.5”

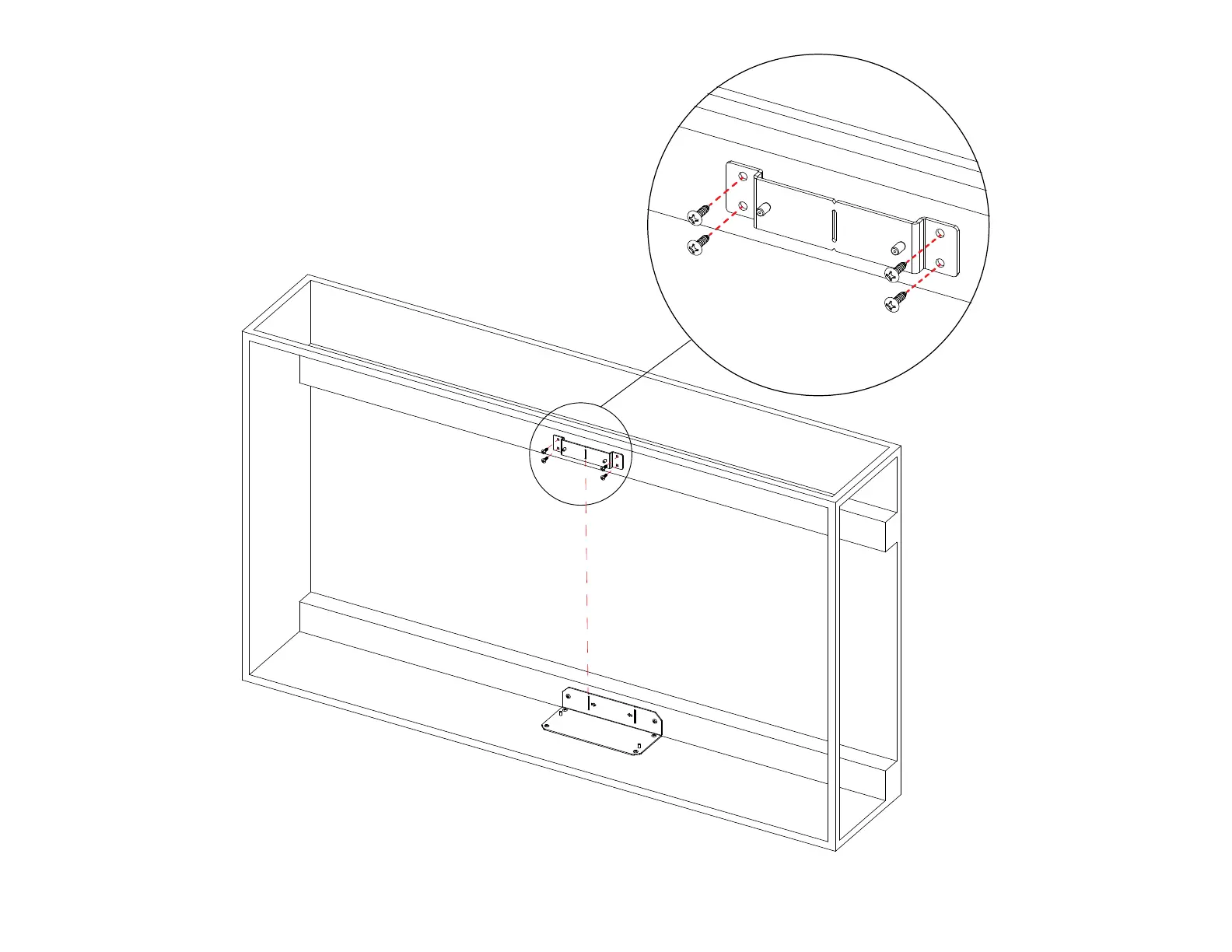

3. Attach the Column Clamp Base to the rear of the cabinet 23.5” [59.7cm] from the top of the Base Mount using (4) #10 x 3/4 THWS.
Note: Use the Center line Cutout on the Base Mount and Column Clamp Base to assist with locating them on the inside of your cabinet.
