Nexus 21 L-77i - Wiring Diagrams

24
A1
A21
2
3 4
DC AC
To Power Outlet
Top Motor - Port 1
RJ 45 Splitter
RF Receiver
Bottom Motor - Port 2
Collision Detection Module - Port A2
Wired Backup Switch

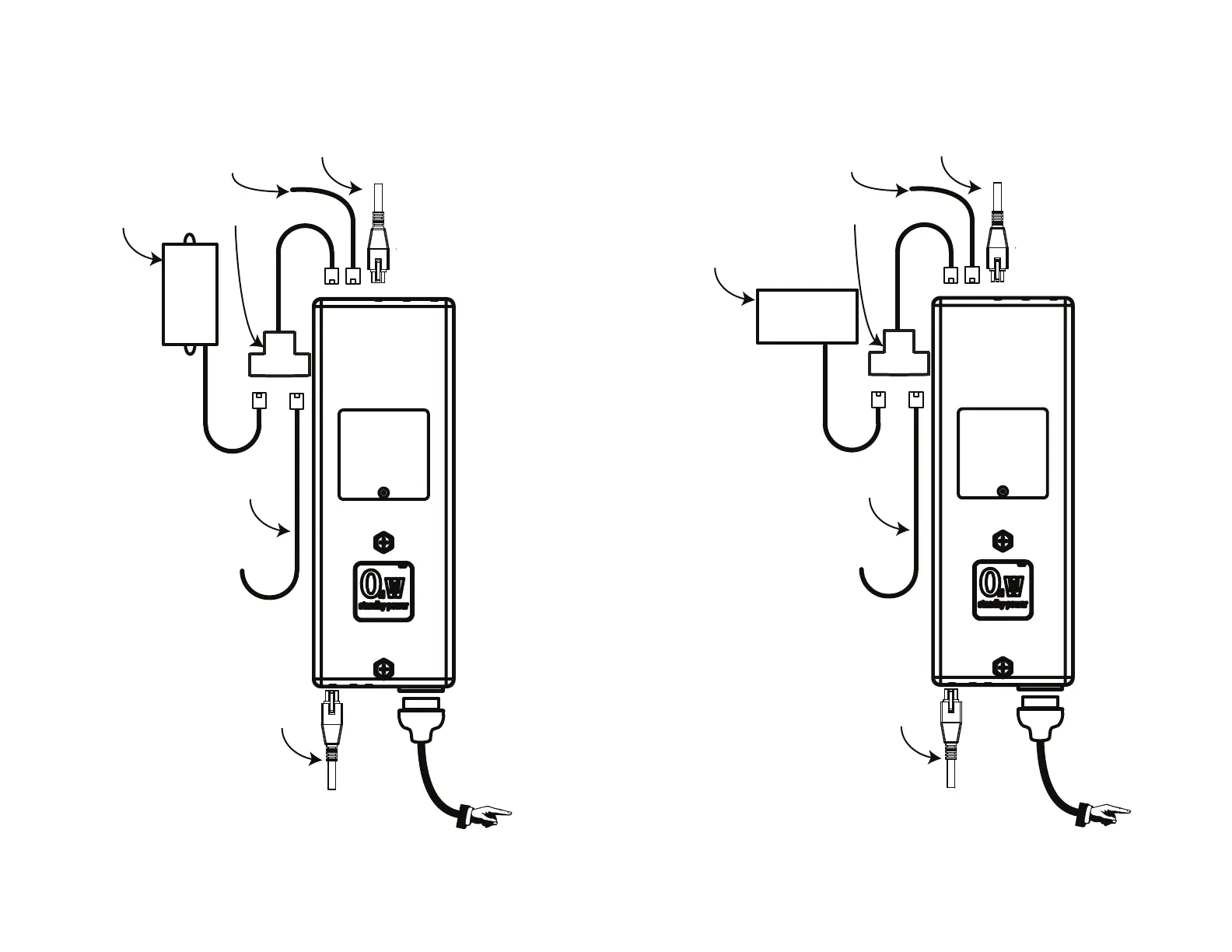

Wiring Diagram - RF Controls
A1
A21
2
3 4
DC AC
To Power Outlet
Top Motor - Port 1
RJ 45 Splitter
IP Module
Bottom Motor - Port 2
Collision Detection Module - Port A2
Wired Backup Switch
Wiring Diagram - IP Controls
14a. Connect your Cables according to the diagram that corresponds to your control type. IR Controls can be found on the next page.
Note: The Top Motor will use the shorter Motor Cable & the Bottom Motor will use the longer Motor Cable.
The lift will not operate unless all cables are plugged in according to this diagram.
