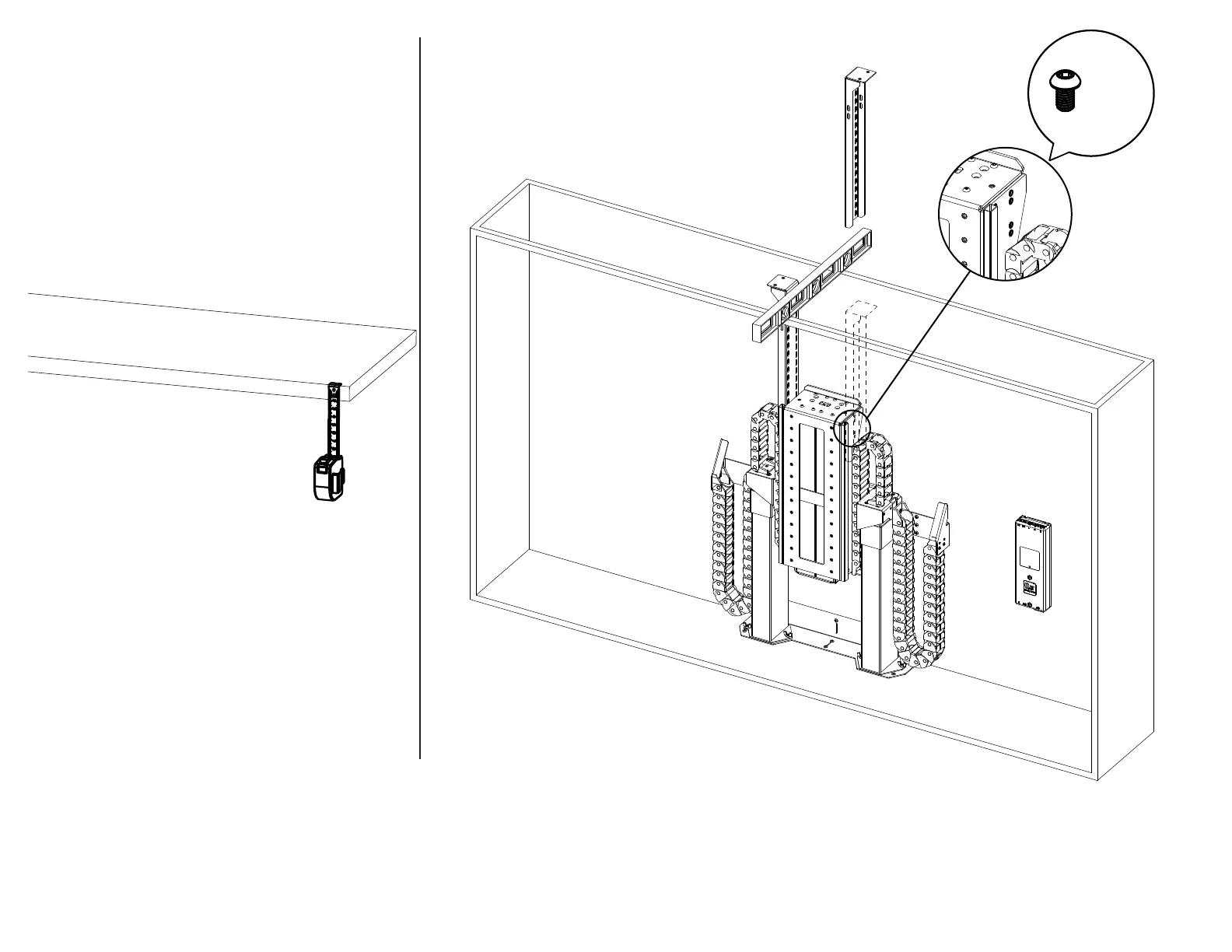

18a. Measure the thickness of your lid and add 1/4” to it. Write that measurement here: _____________
18b. Place a level or straight edge across the top of your opening. The bottom of the level or straight edge will be used to locate your Lid Supports.
18c. Position your Lid Supports along the left and right sides of the Upper Assembly so the tops of them rest a distance equal to the measurement taken in step
18a below your level or straight edge, then attach them using (4) M6 x 10 BHMS per Lid Support.
Note: If necessary, (2) M6 x 10 BHMS can be used per Lid Support, instead of (4).
