Nexus 21 L-85 - Center Line Cutout; Center Line Cutouts

Center Line Cutouts
x 9

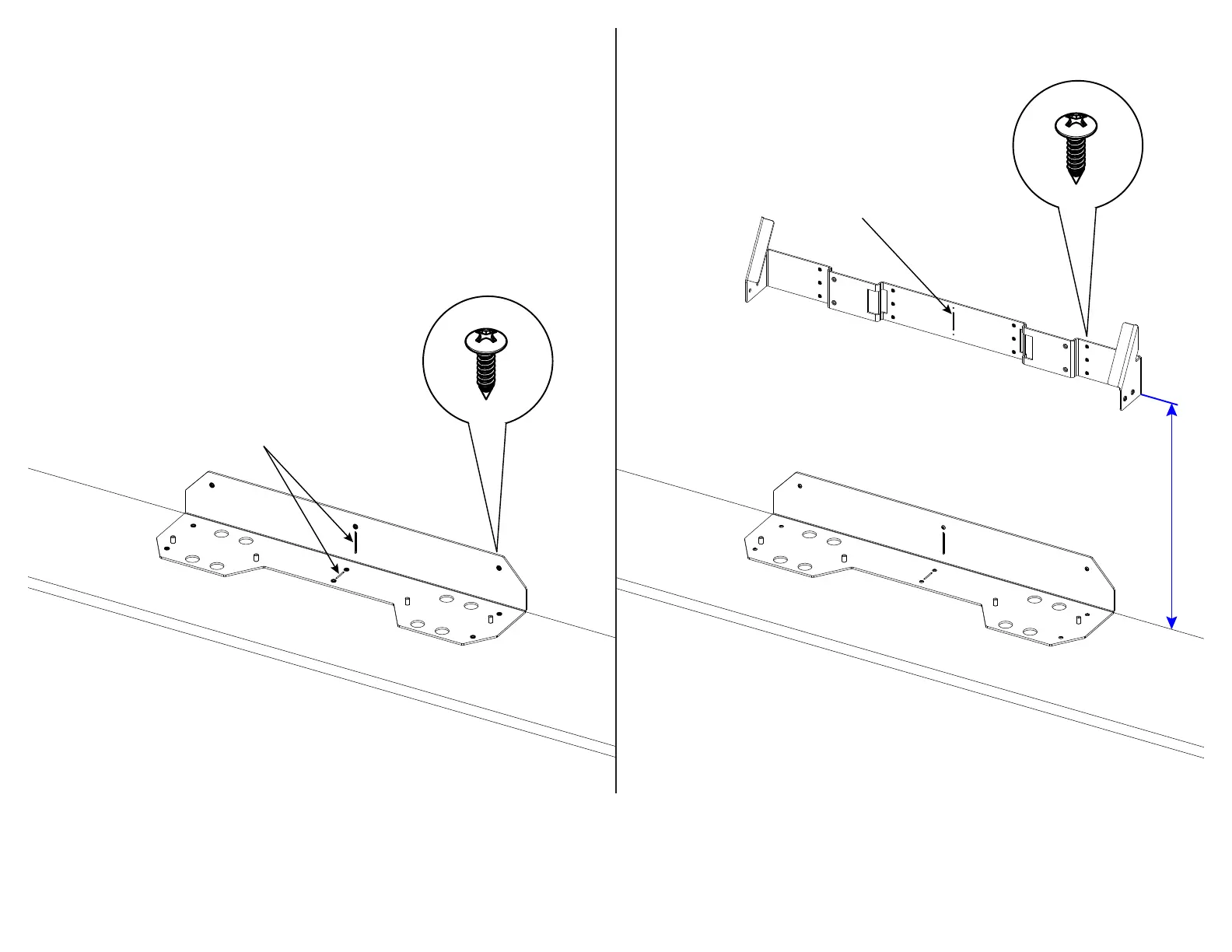

1a. Attach the Base Mount to the base and rear panels of the cabinet using (9) #10 x ¾” THWS.
1b. Attach the Rear Support to the rear of your cabinet, 15.75”(L-85) or 23.75”(XL-85) from the bottom of your Base Mount, using (12) #10 x ¾” THWS.
Note: Use the center line cutouts on the Base Mount and Rear Support to assist with locating them inside your cabinet.
8
L-85 = 15.75”
XL-85 = 23.75”
x 12
Center Line Cutout
