Nexus 21 L-85 - IR Control User Guide

Page 1 of 4

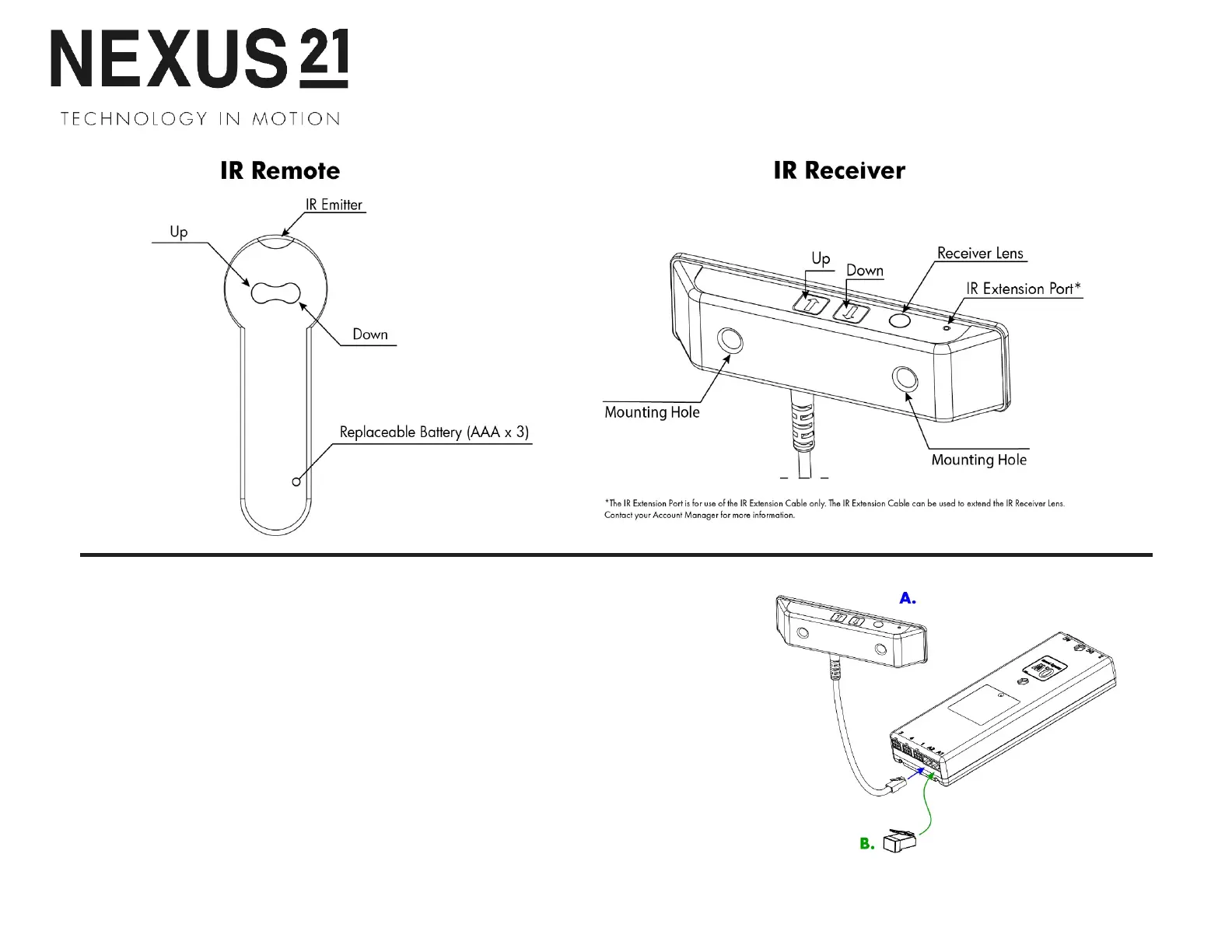

A. Connect the IR Receiver
Connect the IR Receiver to port A1 or A2 on the Control Box.
B. Setting a Height Limit (Optional)
Use the IR Remote to run your system to the desired extended
position, then plug the Height Limit Insert into the Control Box.
Note:
This will set the maximum extension for your system, to
reset this, remove the Height Limit Insert and repeat these steps.
IR Control User Guide
42
