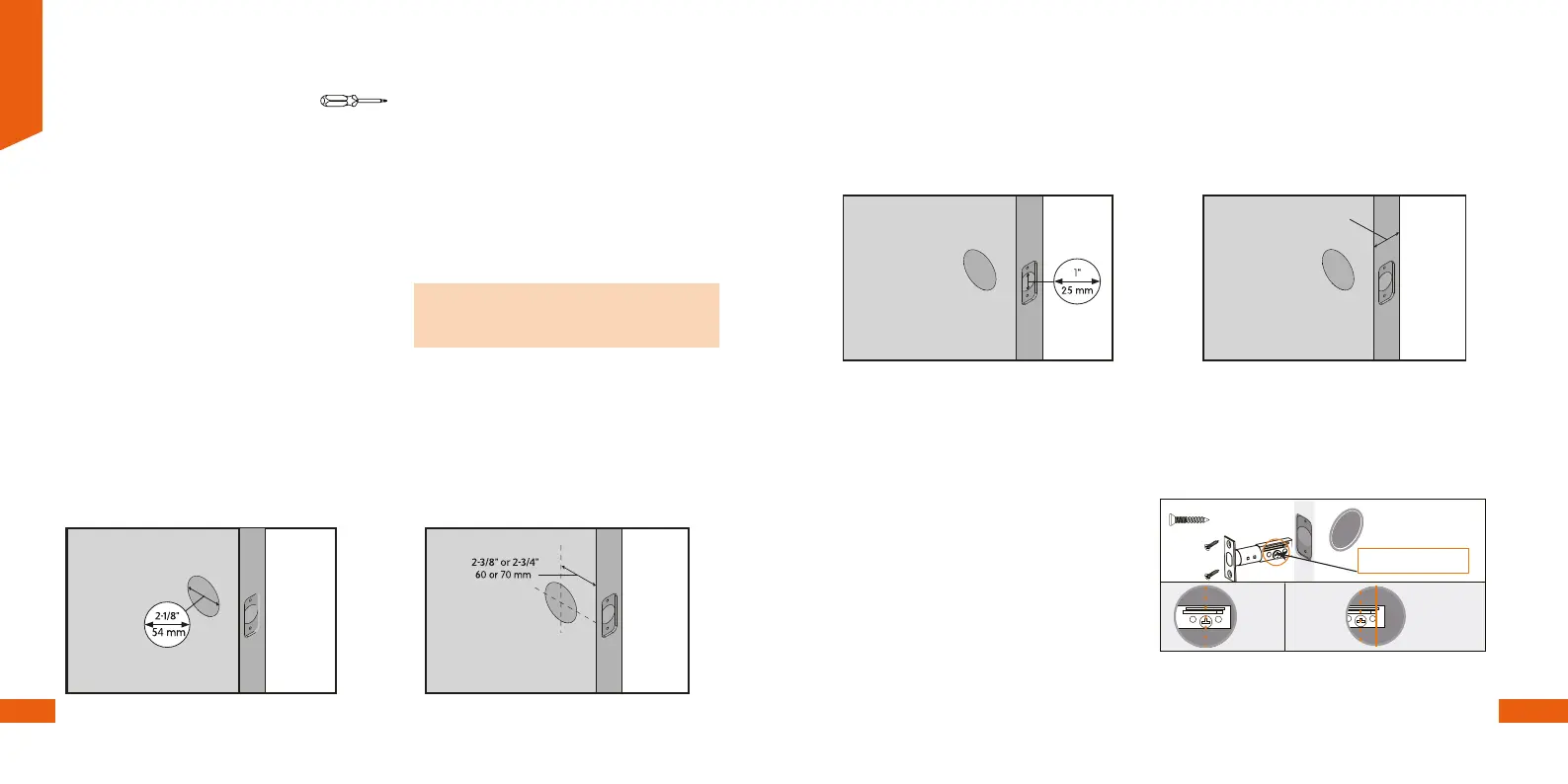

4. Installation procedure
4.1 Preliminary steps
Door compatibility:
The smart lock can be installed on doors with
a thickness of 1-3/4in to 2in.
Once you have removed the existing door
hardware, you should use the included
template to make sure your door is
compatible (with the proper door thickness,
backset placement, and bore hole size).
Tools required: Phillips screwdriver.
Do not use a power drill.
Measure to conrm that the diameter
of the bore is 2-1/8in (54mm)
Step 2:Step 1:
Measure from the edge of the door to the
center of the main bore hole. This is called
the backset. Conrm that the diameter is
either 2-3/8in (60mm) or 2-3/4in (70mm).
The new latch and strike plate are installed in
the bore holes. There are two components of
the door lock the external escutcheon with
the keypad, and the internal escutcheon with
the thumbturn.
NOTE: Keep in mind that this is a deadbolt
door lock. The handle or door knob are not
included.
English
6 7
Backset
4.2 Latch and strike plate installation
• Install the latch into the door in the
retracted and unlocked position.
• Ensure the latch is facing upwards with
the T shape hole positioned at the bottom.
• Secure it into place using the two latch
screws provided.
Step 1:
Measure the edge bore hole. This must
be 1in (25mm) in diameter. Note that
when viewing the latch indention on the
side of the door, the edge bore hole is
the large circle in the center.
Step 4:Step 3:
Measure to conrm that the width of your
door is between 1-3/8in (35mm) and 2in
(50mm).
up
up
Make sure the T-shaped hole
is in positioned at the bottom.
1-3/8” and 2”
35mm and 50mm
Actual Size
NO
3/4” (19mm) Screws-2ea.
To Next Page
