The external unit is mounted to the door and attached to the inside mounting plate on the other
side with the long through screws.
English
8 9

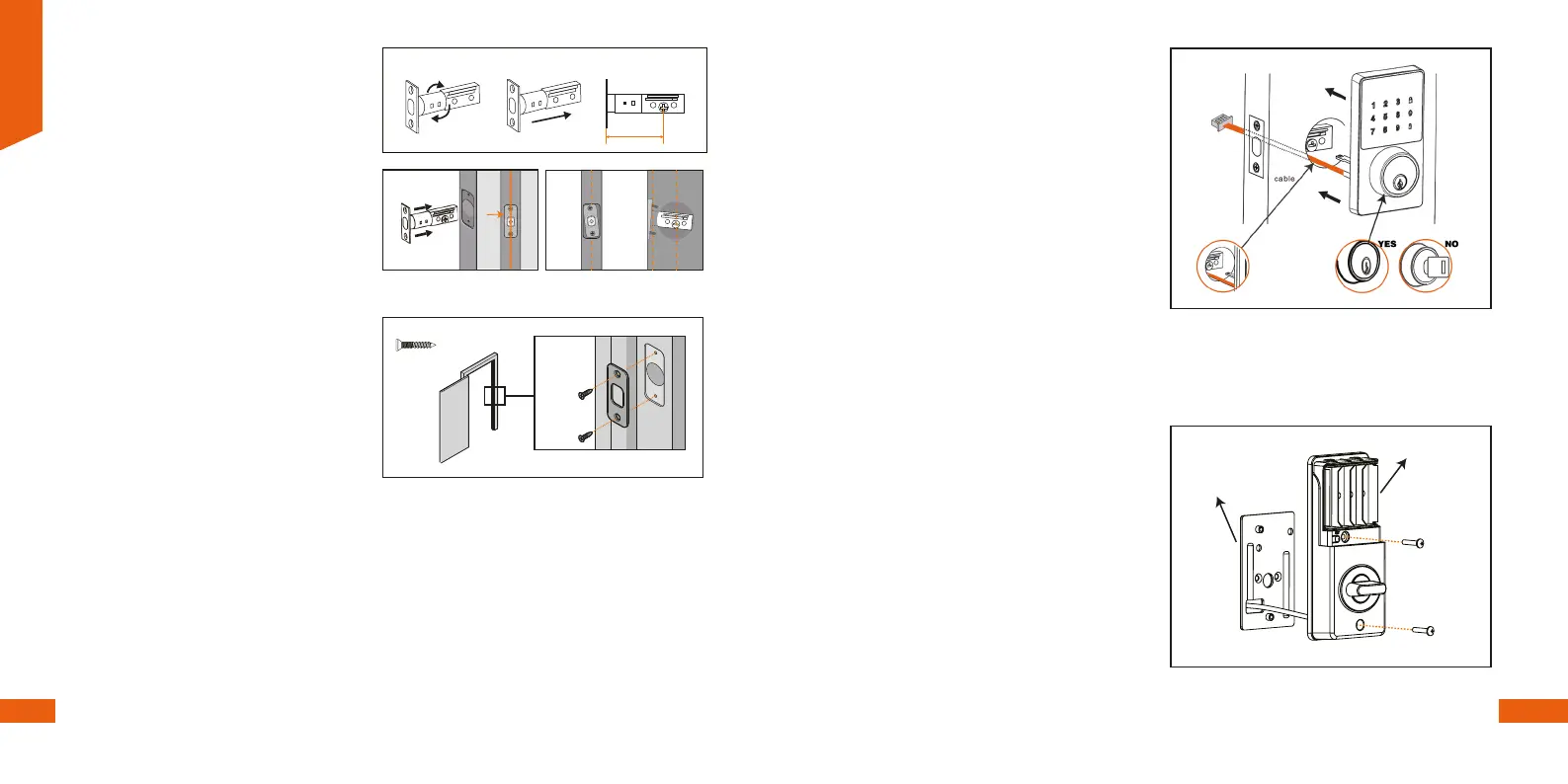

4.4 Mounting plate and inside lock installation
• Remove the battery cover and loosen the
two screws to remove the interior
mounting plate from the inside piece of
the lock.
Step 1:
(Make sure the latch bolt is retracted)
4.3 Exterior keypad installation
Mount the exterior keypad lock so it is ush
with the door. Make sure that the wires are
placed under the latch.
Note: during the installation, do not insert
the mechanical key into the keyway.
Step 1:
• Install the strike plate into the doorframe
and secure it with the 3/4in screws.
• Make sure that the hole in the door frame
is at least 1in (2mm) deep.
Step 2:
• The latch is set to 2-3/8in. Adjust the
latch to 2 ¾in (70mm) if you require a
longer length for installation.
up
2-3/4”
70(mm)
YES NO NO
Actual Size
3/4” (19mm) Screws-2ea.
Battery
compartment
Mounting plate
To Next Page
