Mounting Plate
1-5/32” (33mm)
Srews (2 ea.)
Control Wire

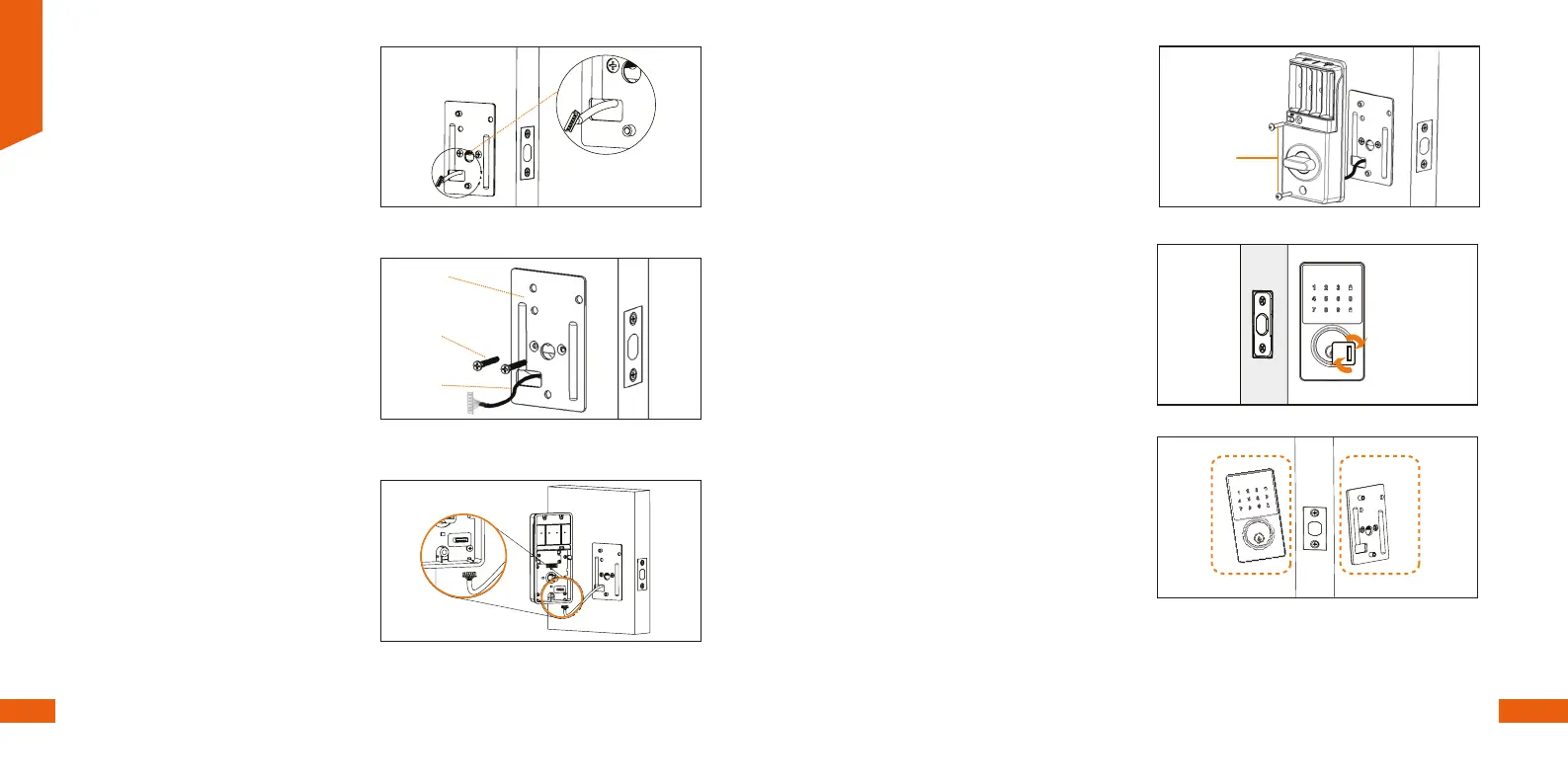

• Guide the cable assembly through the
cable hole of the interior mounting plate.
Step 2:
• Make sure it is ush with the door and
straight before attaching it with the two
screws.
Note: hold the external assembly against the
door during the mounting plate installation.
Step 3:
• The two units plug together via the 6-pin
cable attached to the keypad unit. Insert
the cable into the white jack making sure
that the blue ridge matches on both, the
plug and the jack located on the board.
Step 4:
•Test the mechanical operation of the lock.
Insert the key and turn it several times to
make sure the latch extends and retracts
smoothly.
• If the latch operation fails, check the
previous installation steps and whether
the mounting plate screws are rmly
tightened.
• If the keypad and mounting plate are
offset, loosen the mounting plate screws
and re-align.
Step 6:
• Proceed to tighen the secrews to secure
the assembly to the door.
Step 5:
3/4” (19mm)
Srews (2 ea.)
NONO
To Next Page
