iControl Circuit Board Quick References
Manual # 42-02-7223 C1 6-111
6
iControl DC

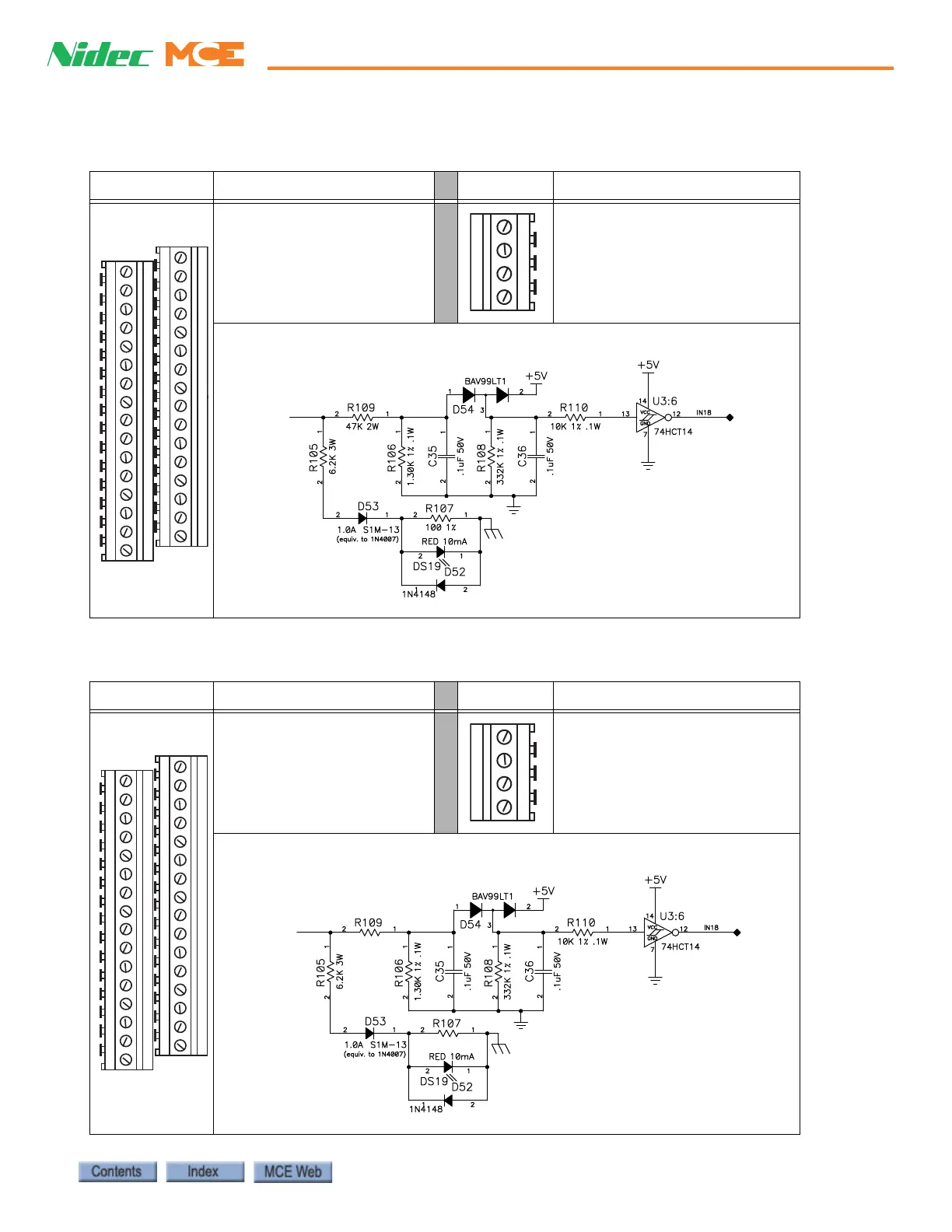

Table 6.13 ICE-MIAC Board Connections
Connector Signal Connector Signal
Orange Terminals
Inputs 1 - 32
120VAC = input active
1: Common
Typical Input Circuit
Table 6.14 ICE-MIAC-24V Board Connections
Connector Signal Connector Signal
Blue Terminals
Inputs 1 - 32
24V AC or DC = input active
Caution! Connecting 120V
to these terminals will
damage the board.
1: Common
Typical Input Circuit
To Next Page
