iControl Circuit Board Quick References
Manual # 42-02-7223 C1 6-113
6
iControl DC

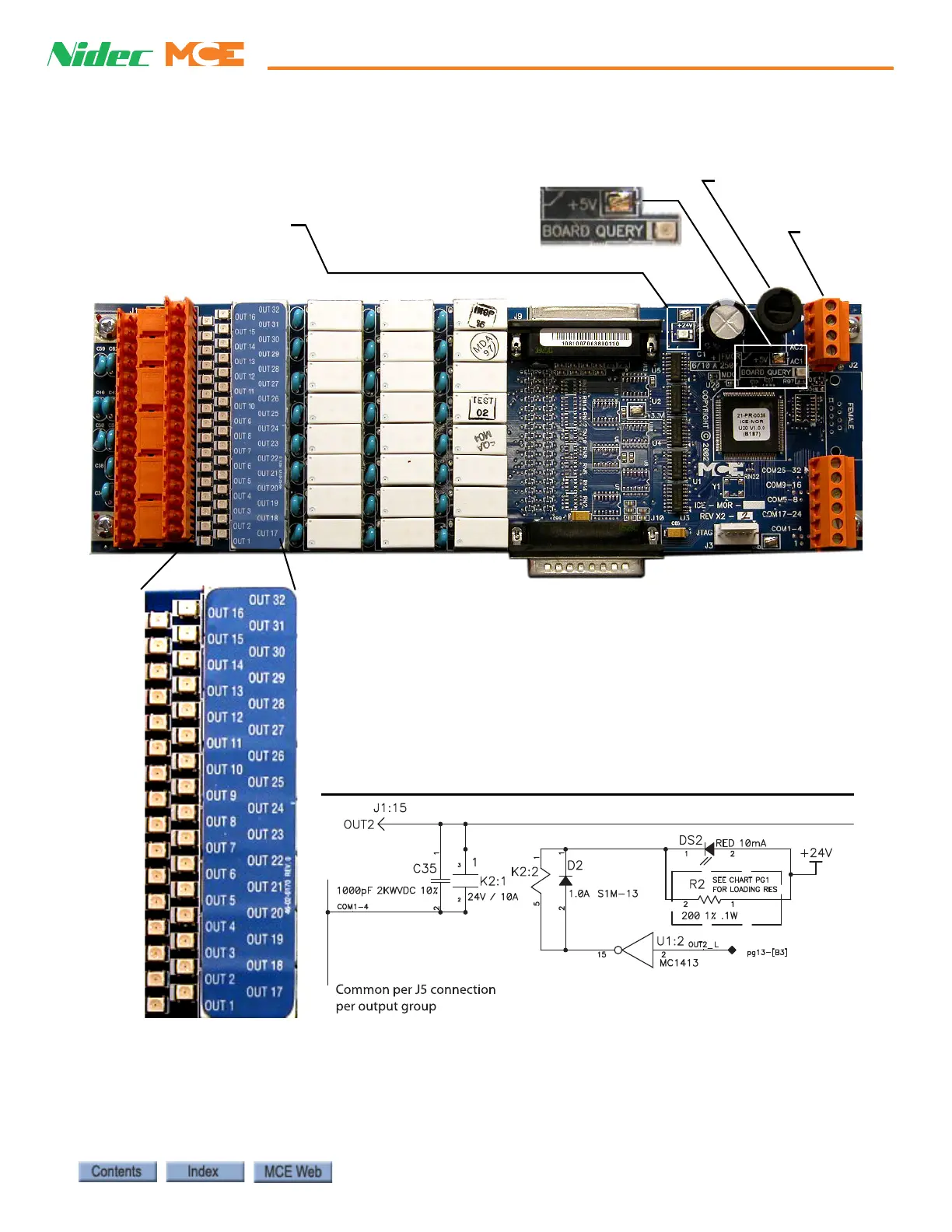

Figure 6.12 ICE-MOR Board
FMOR Fuse
6/10A, 250V, MDQ
Board Query LED
On when iBox queries board
+24V Test point
24V OK LED
LED lights when corresponding
output relay is active.
Active = Open
Active = Closed
Determined by iView settings
according to user requirements.
Typical output circuit
18VAC
1 bus
+5V Test point
