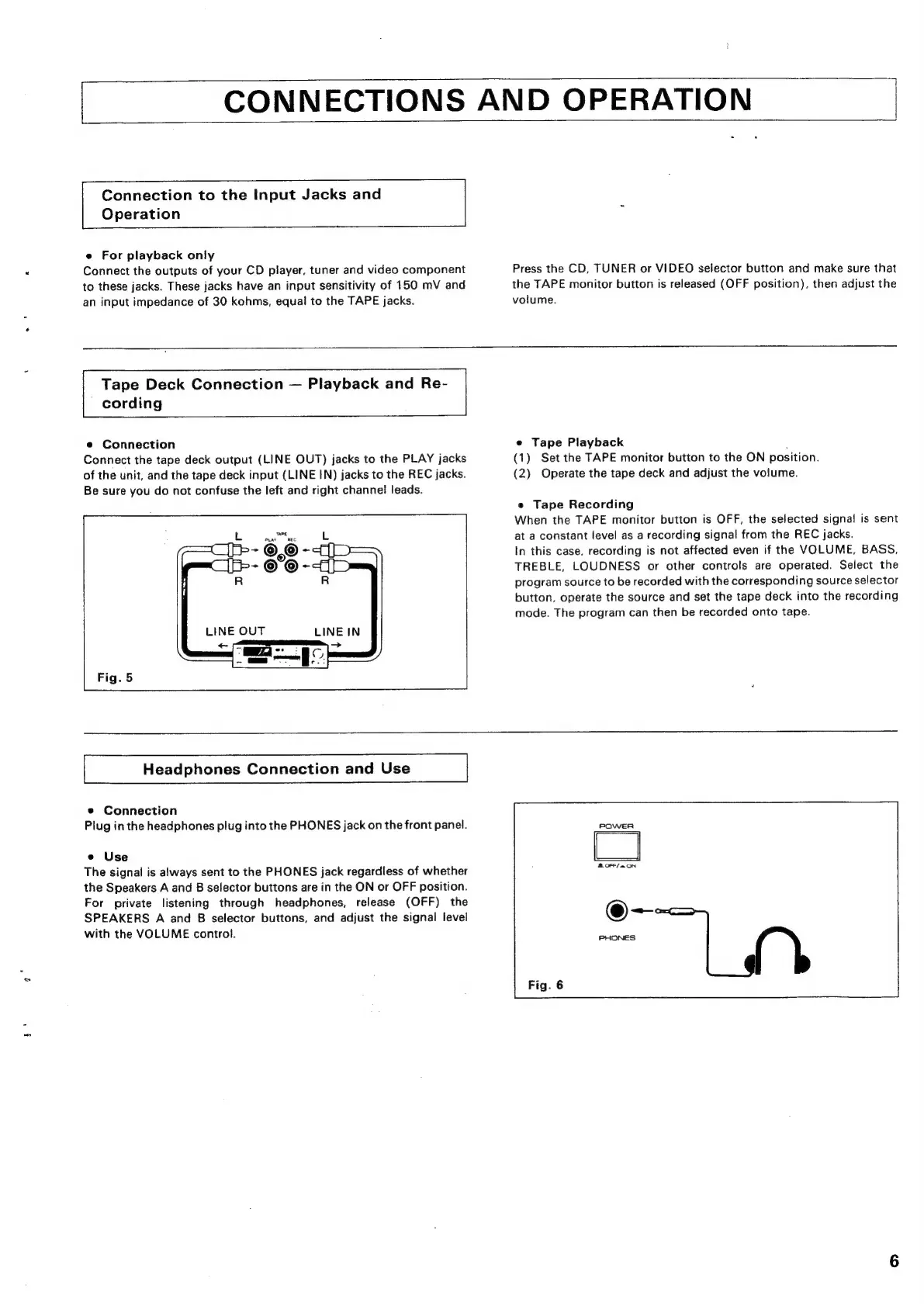

CONNECTIONS
AND
OPERATION
Connection
to
the
Input
Jacks
and
Operation
e
For
playback
only
Connect
the
outputs
of
your
CD
player,
tuner
and
video
component
to
these
jacks.
These
jacks
have
an
input
sensitivity
of
150
mV
and
an
input
impedance
of
30
kohms,
equal
to
the
TAPE
jacks.
Press
the
CD,
TUNER
or
VIDEO
selector
button
and
make
sure
that
the
TAPE
monitor
button
is
released
(OFF
position),
then
adjust
the
volume.
Tape
Deck
Connection
—
Playback
and
Re-
cording
e
Connection
Connect
the
tape
deck
output
(LINE
OUT)
jacks
to
the
PLAY
jacks
of
the
unit,
and
the
tape
deck
input
(LINE
IN)
jacks
to
the
REC
jacks.
Be
sure
you
do
not
confuse
the
left
and
right
channel
leads.
LINE
OUT
LINE
IN
Headphones
Connection
and
Use
e
Connection
Plug
in
the
headphones
plug
into
the
PHONES
jack
on
the
front
panel.
e
Use
The
signal
is
always
sent
to
the
PHONES
jack
regardless
of
whether
the
Speakers
A
and
B
selector
buttons
are
in
the
ON
or
OFF
position.
For
private
listening
through
headphones,
release
(OFF)
the
SPEAKERS
A
and
B
selector
buttons,
and
adjust
the
signal
level
with
the
VOLUME
control.
e
Tape
Playback
:
(1)
Set
the
TAPE
monitor
button
to
the
ON
position.
(2)
Operate
the
tape
deck
and
adjust
the
volume.
e
Tape
Recording
When
the
TAPE
monitor
button
is
OFF,
the
selected
signal
is
sent
at
a
constant
level
as
a
recording
signal
from
the
REC
jacks.
In
this
case,
recording
is
not
affected
even
if
the
VOLUME,
BASS,
TREBLE,
LOUDNESS
or
other
controls
are
operated.
Select
the
program
source
to
be
recorded
with
the
corresponding
source
selector
button,
operate
the
source
and
set
the
tape
deck
into
the
recording
mode.
The
program
can
then
be
recorded
onto
tape.
POWER
OFF/m
ON
PHONES
Fig.
6
