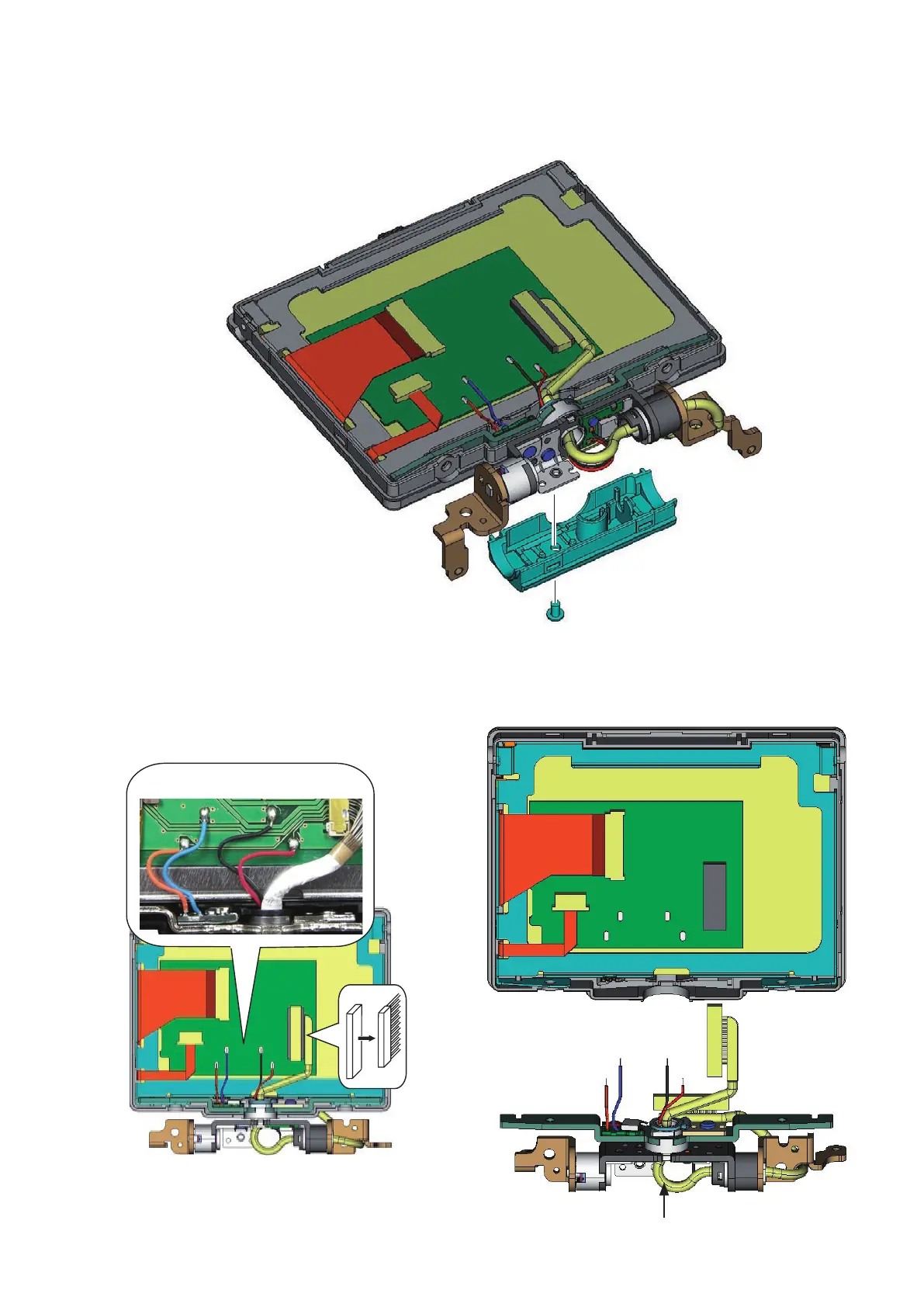

・ Take out the screw (#677).
・ Remove the hinge bottom cover (#438).
(Caution must be exercised that the part does not get scratched or dented. If it does, use a new one.)
#677
#438
・ Unsolder the wires [Orange/Blue/Black/Red].
・ Disconnect the harness from the connector.
・ Remove the hinge unit (#B454).
[Orange/Blue/Black/Red]
#B454
