Nikon F2AS PHOTOMIC User Manual

21

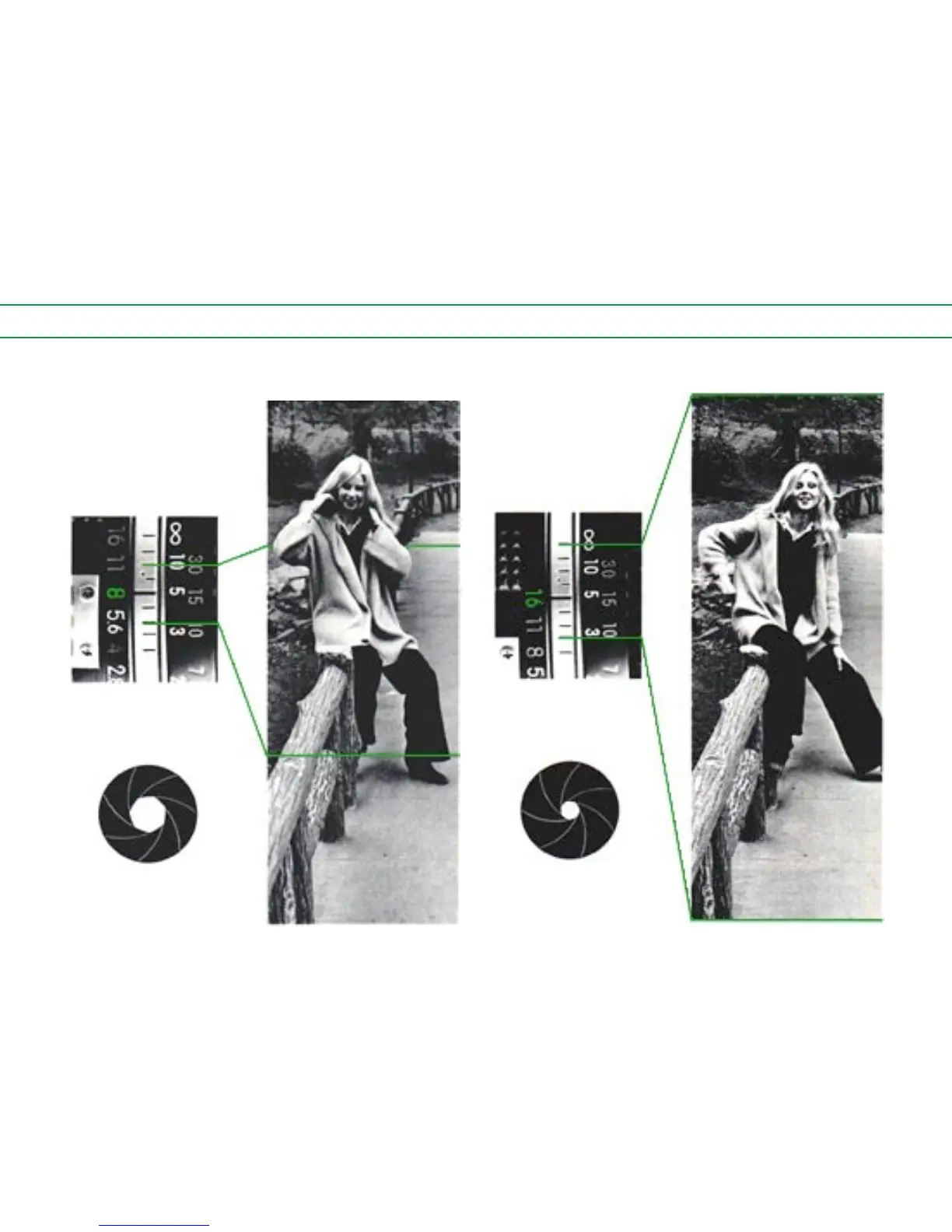

Lens at f/8:Depth of field
extended in front of/be-
hind the main subject.
Lens at f/16:Sharp focus is
extended to encompass the
entire foreground and
background
WWW.LENSINC.NET

Nikon F2AS PHOTOMIC Specifications

Camera Specifications

type of camera	35mm single-lens reflex (SLR)
picture format	24mm x 36mm
lens mount	Nikon F mount (bayonet type)
shutter	Horizontal-travel focal-plane shutter; speeds of from 1 to 1/2000 second and “B”
flash synchronization	Automatic selection as shutter speed is set; hot-shoe contact with built-in safety switch

Exposure and Metering

exposure metering	Through-the-lens, center-weighted, full-aperture measurement
metering range	EV—2 ~ EV 17 with 50mm f/1.4 lens and ASA 100
film speed scale	ASA12 ~ 6400

Weight and Dimensions

weight	840g
dimensions	152.5mm x 102mm x 64.5mm
