Halogen Illuminators
There are two illuminators available: the G-LS of 6V 10W and the C-
DSLS of 6V 20W.
Note) These illuminators are not adequate to observe the sample having a
high reflective surface. Use the P-ICI2 Coaxial Episcopic
Illuminator on p.29 for this purpose.

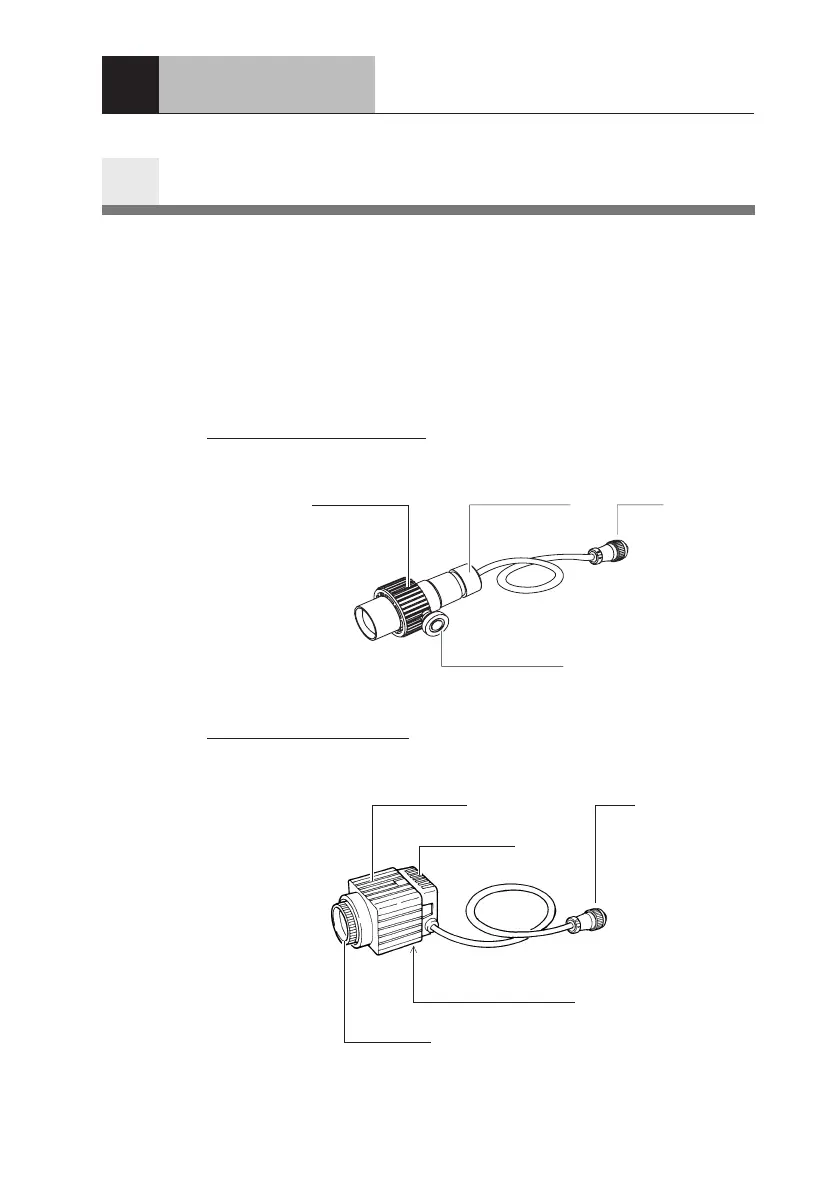

G-LS
Lamp Socket A (6V10W)
C-DSLS
Illuminator A (6V20W)
V
Illuminator
Lamp house
Lamp socket
(may be moved
back and forth)
Plug
Mounting screw
Plug
Lamp house
Filter cap
ø33 mm filter
attachable
Holder and Epi arm
mounting screw hole
Lamp socket
