nilan Compact S CTS 602 User Manual

Subject to alterations Page 8 of 33

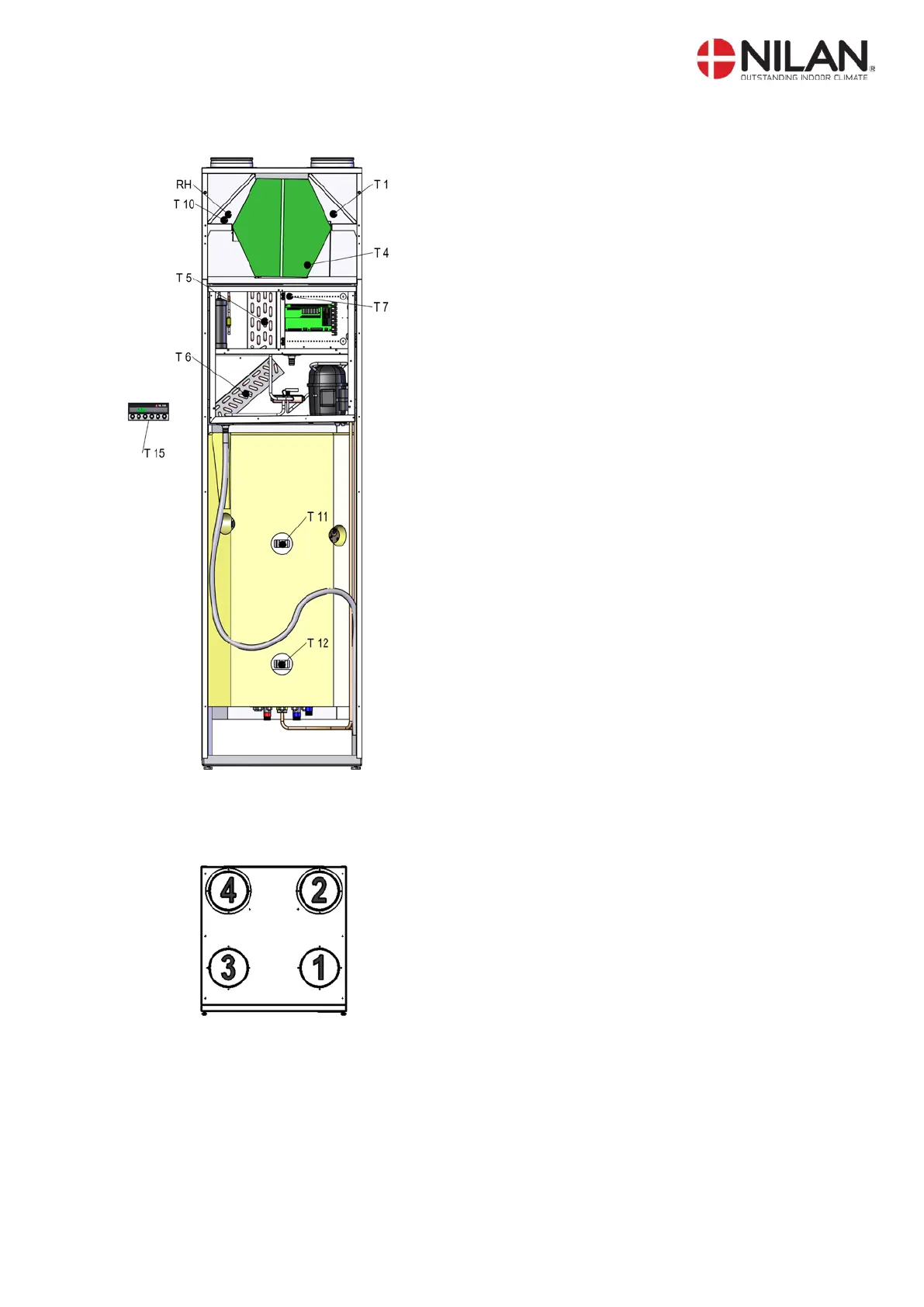

Explanation temperature sensors:
T1:
Fresh air
T4:
In the counter flow heat exchanger
T5:
Condenser
T6:
Evaporator
T7:
Inlet air after the electrical heating
surface. (T2 is change to T7, by
mounting Heating surface)
T10:
Exhaust. The temperature is shown in
the ”Show data” menu”
T11:
Top of the hot water tank
T12:
Bottom of the hot water tank
T15:
CTS602 panel.
E5:
Heating element 1,5kW
Figur 4: Location of temperature sensors
