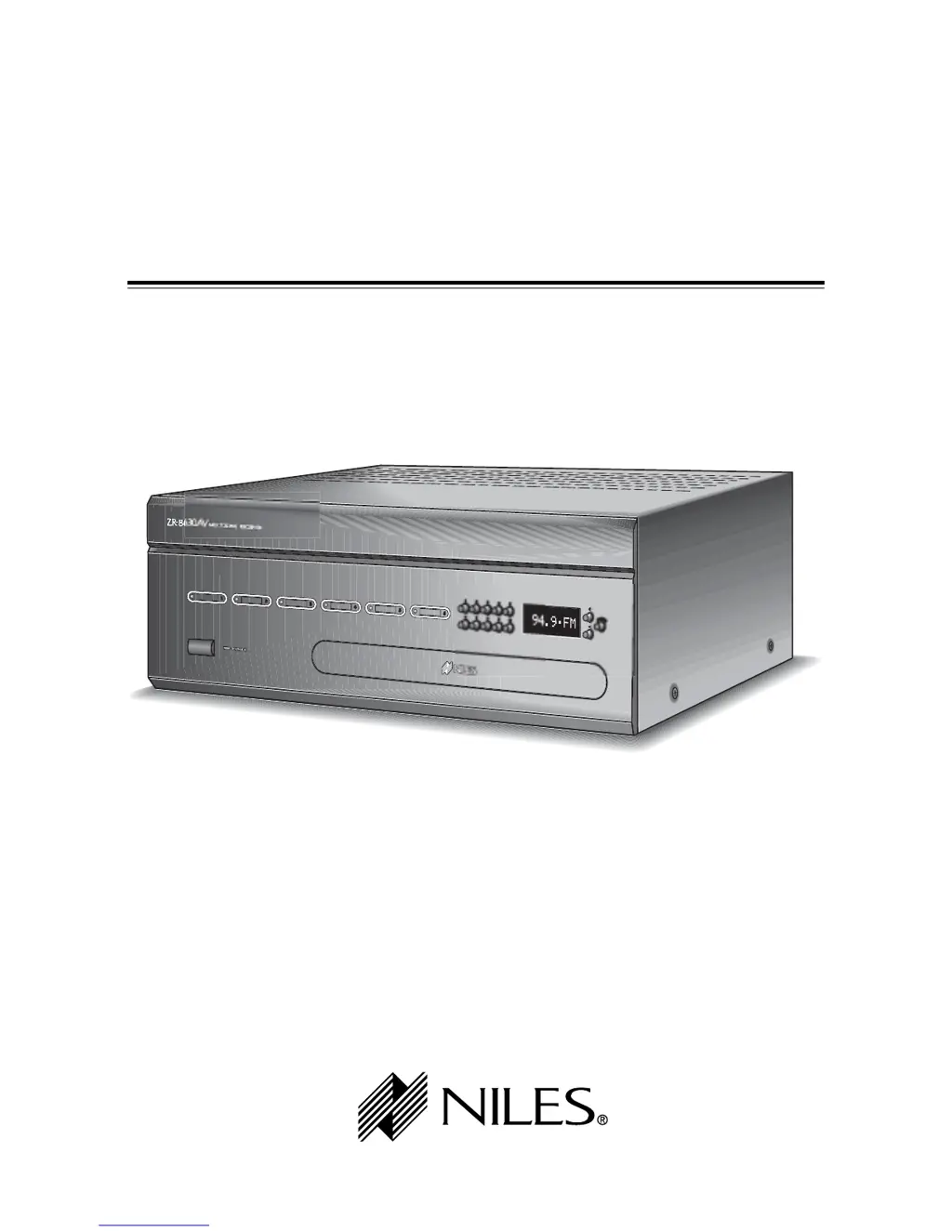

Niles ZR-8630AV - User Manual

Other manuals for Niles ZR-8630AV

Specification Sheet2 pages

Questions and Answers

G
Gregory DudleyJul 29, 2025
Why is there no IR control of the source components on my Niles ZR-8630AV Receiver?
- M
  Matthew YoungJul 29, 2025
  If there is no IR control of the source components, it might be due to interference with the sensors. When using the Niles IRR-4D+ Wall Mount or the Niles TIR-1+ Tabletop IR Sensors, the Status LED should be GREEN when the zone is ON, off when the zone is OFF, and RED when receiving a command. When using the Niles MS-1 or MS-2 IR Sensors, the Status LED should be off when the zone is ON, and GREEN when receiving a command. If the LEDs stay constantly RED (or GREEN when using MS-1 or MS-2), that indicates interference. Try to identify and remove the source of interference, or move the sensor to a place without interference. Common sources include dimmer switches, fan-motor switches, televisions (especially plasma televisions), and sunlight.
M
Megan FlynnAug 2, 2025
How to fix a Niles ZR-8630AV Receiver with no lights on?
- J
  Joshua BoyleAug 2, 2025
  If your Niles Receiver has no lights on, first, check the AC power cord to ensure it's firmly inserted into the receiver's power-cord socket. Next, verify the AC power outlet is working, preferably using an unswitched outlet. If using a switched outlet, confirm that it is switched on and providing power. If you've checked both the cord and the outlet and still have no lights, call Niles for service.
J
Jasmine CraneAug 6, 2025
What to do if my Niles ZR-8630AV Receiver LCD display shows error E7?
- K
  Kelly HawkinsAug 7, 2025
  If the LCD Display on your Niles Receiver shows error E7, it means one or more of the front-panel control or programming buttons is stuck in the depressed position. Check each button by pressing and releasing it.
T
Timothy JohnsonAug 10, 2025
What do errors E1-E6 on my Niles Receiver mean?
- R
  robert72Aug 10, 2025
  If the LCD Display on your Niles Receiver shows errors E1 through E6, it indicates an internal problem that requires service.
R
Richard SimmonsAug 15, 2025
Why do some IR commands work and some don't on my Niles Receiver?
- S
  Sandra WigginsAug 15, 2025
  If some IR commands work for a source and some don't on your Niles Receiver, it's possible that some IR commands were captured incorrectly. To avoid this, test all IR commands with the IR test feature as you capture them.
C
Connie FowlerAug 19, 2025
What does error E8 on my Niles Receiver mean?
- J
  James TaylorSep 12, 2025
  If the LCD Display on your Niles Receiver shows error E8, in an expanded system, one or more of the ZR-8630AV units is not set to the proper Master/Slave mode. Refer to the Installation Settings of this manual for proper setup.
J
Joseph ValenciaAug 23, 2025
What to do if the keypad is connected to my Niles ZR-8630AV Receiver, but no lights come on?
- J
  Janet PierceAug 23, 2025
  If the keypad is connected to your Niles Receiver, but no lights come on, test the keypad cable with an appropriate cable tester.

Summary

Key Features and Benefits of the ZR-8630 AV

Multi-Zone;Multi-Source Capability

Explains the receiver's multi-zone and multi-source capabilities.

12-Channel 30 W Amplifier

Centralized Intelligence for IR Control

Discusses the system's centralized IR command programming.

One-Touch Operation

Explains automated system control via one-touch commands.

System-Wide Operation

Explains controlling all zones simultaneously.

12 V Control Output

Parts Guide: ZR-8630 AV Receiver Front and Rear Panels

Rear Panel Connections and Interfaces

Details all rear panel input/output connectors and interfaces.

Detailed Component Descriptions (Rear Panel)

System Configurations Overview

Configuration 1: Six Zones

Describes the most basic system setup with six zones.

Configuration 1: Six Zones Detailed

Elaborates on the basic six-zone setup and its components.

Keypads, IR Sensors, and Remotes

Source-Component Automation Methods

Explains Synchronized IR and Latching Power automation.

Configuration 2: Adding Zones with Multiple ZR-8630 AV Units

Describes expanding the system with additional receivers.

Sharing Source Components Between Receivers

Explains how to share source components between multiple ZR-8630AVs.

Configuration 3: Distributing Signals with Three ZR-8630 AVs

Details signal distribution with three receivers.

Configuration 3: Distributing Signals with a Home Theater

Describes signal distribution with a Home Theater system.

AVDA-3 Requirements for Home Theater Integration

Configuration 4: Integrating an IR-Controlled Home Theater

Details integrating an IR-controlled Home Theater.

Distributing Audio and Video Signals (Config 4)

Explains signal distribution for IR-controlled Home Theater.

Shared Source-Component Control (Config 4)

Describes control of shared components via Home Theater IR repeater.

Configuration 5: Integrating a Home Theater with IntelliControl

Details integrating an IntelliControl®-based Home Theater.

Shared Source-Component Control (Config 5)

Explains control via IntelliControl® and R-8 IR commands.

Configuration 6: Multiple Master Keypad Modules in a Zone

Explains expanding a zone with multiple keypads using an expander.

Configuration 7: Multiple Listening Areas in a Zone

Describes setting up multiple listening areas within a single zone.

Configuration 8: External Amplifier for More Power in a Zone

Details using an external amplifier for increased zone power.

Configuration 9: External Amplifier for Multiple Listening Areas

Explains using an external amp for multiple areas in one zone.

Configuration 10: External Amplifier for Multiple Rooms

Describes dividing a zone into rooms with an external amplifier.

Configuration 11: System Paging and External Telephone

Details integrating telephone systems for voice paging.

Configuration 12: IR Repeating for Local Component Control

Explains integrating IR repeating systems for local control.

Component Compatibility: Infrared Command Compatibility

Testing for IR Command Conflicts

Provides guidance on testing for and resolving IR command conflicts.

Source Power Synchronization Explained

What is Source-Power Synchronization?

Choosing a Synchronization Method

Guides selection of appropriate sync methods.

Video Sync Method

Voltage Sync Method: Current Sensing

Voltage Sync Method: Light Sensing

Components Requiring Power Synchronization

Operational Overview: Master Keys and Source Buttons

Master Key;Source Button Functionality

Master Key;Source Button Events

Details the four programmable events for keys/buttons.

Event 3: Source Component Power ON

Event 4: Sequence Execution

Master Key;Source Button Operation Modes

OFF Key;Button Operation

Describes how to turn zones and the system OFF.

OFF Key Events and Source Deactivation

Single-Zone and System-Wide OFF

Volume Keys;Buttons Operation

Explains how to adjust volume using keys/buttons.

Mute Key;Button Operation

Describes how to mute/unmute sound in a zone.

Function Keys;Buttons Overview

Function Key;Button Operation for Source Components

Pre-Programmed Tuner Commands

Identical Source Component Control

Shared Source Components

Operating Systems with Multiple ZR-8630 AV Units

Integrating with a Home Theater: Stereo Zone Operation

Home Theater Integration Methods Overview

Introduces three methods for integrating a Home Theater.

Method 1: Home Theater Sync and IR Repeating

Details integration using 12V sync and IR repeating.

Method 2: Home Theater Sync and Niles R-8 Commands

Details integration using 12V sync and R-8 IR commands.

Method 3: Home Theater without 12 V Sync

Details integration without 12V sync, using R-8 commands.

Source-In-Use Indication

Installation: Placement and Ventilation

Unit Placement Guidelines

Ventilation Requirements

Connections: Speaker Wire to No-Strip Connector

Connecting Speaker Wire

Terminating Four-Pair Twisted Cable

Connecting IR Sensors (Four-Pair Twisted Cable)

Connecting IR Sensors (Three-Wire Adapter)

Source Component Audio;Video Signals and Video Synchronization

Source-Component Power Synchronization Signals

Home Theater Sync Input Connection

12 V Control Outputs Connection

IR Input from Home Theater System

Preamplifier Zone Outputs (Variable Mode)

Preamplifier Zone Outputs (Fixed Mode)

Connecting IR Sensor for Local System Control

Details connecting IR sensors for controlling local components.

Connecting A;B Amplifier Switch for Local System Selection

Explains connecting an A/B switch for local system selection.

Programming Overview and Worksheets

Installer Programming Panel and Software

ZR-8630 AV Programming Worksheet Overview

Programming Remote Controls

Teaching IR commands to learning remotes.

Home Theater Integration Programming Methods

Methods for programming Home Theater remotes for shared components.

Tuner and Zone Programming Worksheet

Source Component Programming Worksheet

Installation Settings: DIP Switches and Zone Labels

ALL ON;PAGE DIP Switch Settings

Fixed;Variable Preamplifier Switch

Programming Master;Slave Mode

Volume Settings: Maximum Turn ON and Source Change Volume

Explains customizable volume levels for turning on and changing sources.

Volume Settings: ALL ON Volume Level

Volume Settings: Page Volume Level

Changing Volume Settings Procedure

Source-In-Use Setting Configuration

Video Sync Selection Procedure

System Programming Steps for IR Commands

Entering Programming Mode and Initial Setup

Alternate IR Learning Mode

Explains how to use the alternate IR learning mode for difficult remotes.

Teaching and Sequencing Source IR Commands

Completing Source Programming and Exiting

Program Editing and Erasing Procedures

Editing Source-Power and IR Commands

Procedures for editing power and IR commands for source components.

Sequence Editing and Tuner Preset Storage

Steps for editing control sequences and storing tuner presets.

Erasing Individual IR Commands

Erasing Individual Sequences

Erasing All Programming

Guides on erasing all programming data for the unit or system.

Erasing Programming for One Source

Troubleshooting the ZR-8630 AV Receiver

Receiver Power and Display Errors

Addresses issues with no lights, LCD errors E1-E8.

System Installation Troubleshooting: Keypad and IR Issues

Troubleshoots keypad connection and IR control problems.

Specifications: Amplifier and Tuner Sections

Amplifier Section Specifications

Tuner Section Specifications (USA;Canada, CE)
