Operation.

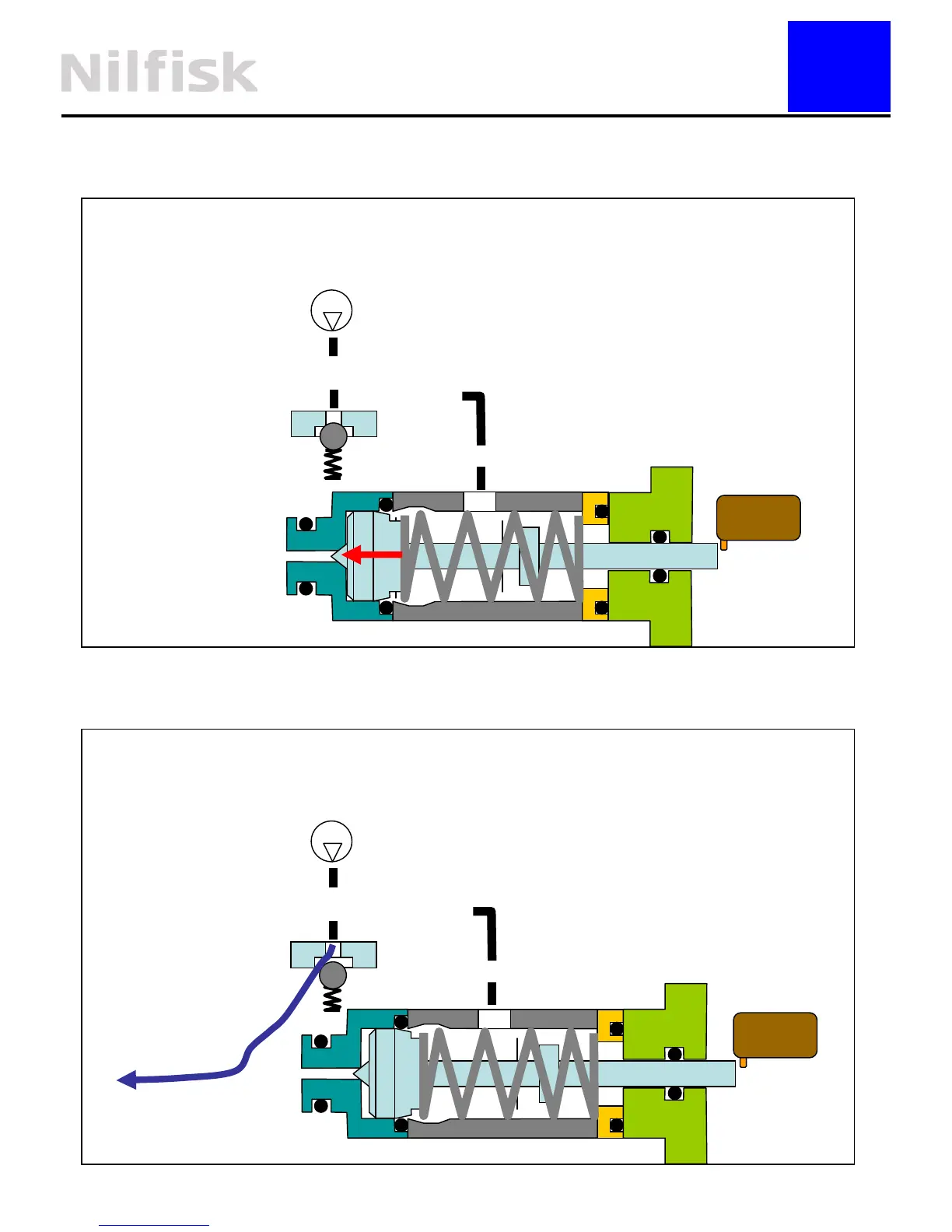

3.5 Gun is activated
3.6 Machine run
Outlet
Inlet
65-90BAR
3 BAR
70-95 BAR
Machine runs (normal working pressure). Gun is open.
Non return valve
Pump
Outlet
Inlet
3 BAR
3 BAR
3 BAR
Gun is open - Control piston is closed. Micro switch is deactivated. Motor
starts.
Non return valve
Pump
