Service / Repair.

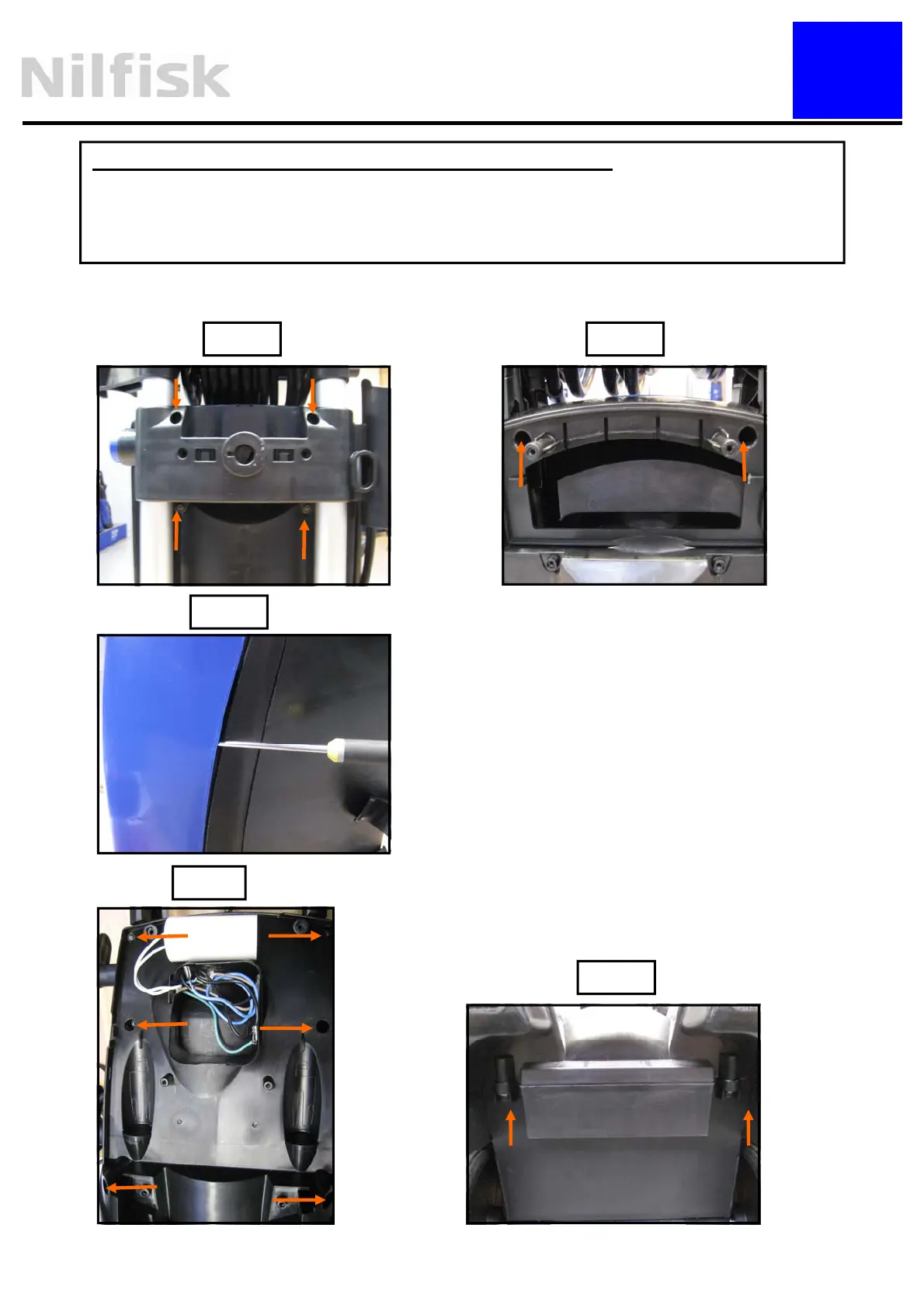

Dismounting / mounting of front cabinet and front chassis.
Remove 4 torx Screws (TX 20 )(fig.1) and then 2 torx Screws (fig.2).Then use a small
screwdriver to tip out the cabinet. (fig.3).Remove 6 torx screws in the front chassis (fig.4)
and 2 screws at the bottom (fig.5)
Fig.1 Fig.2
Fig.3
Fig.4
Fig.5
