Service / Repair.

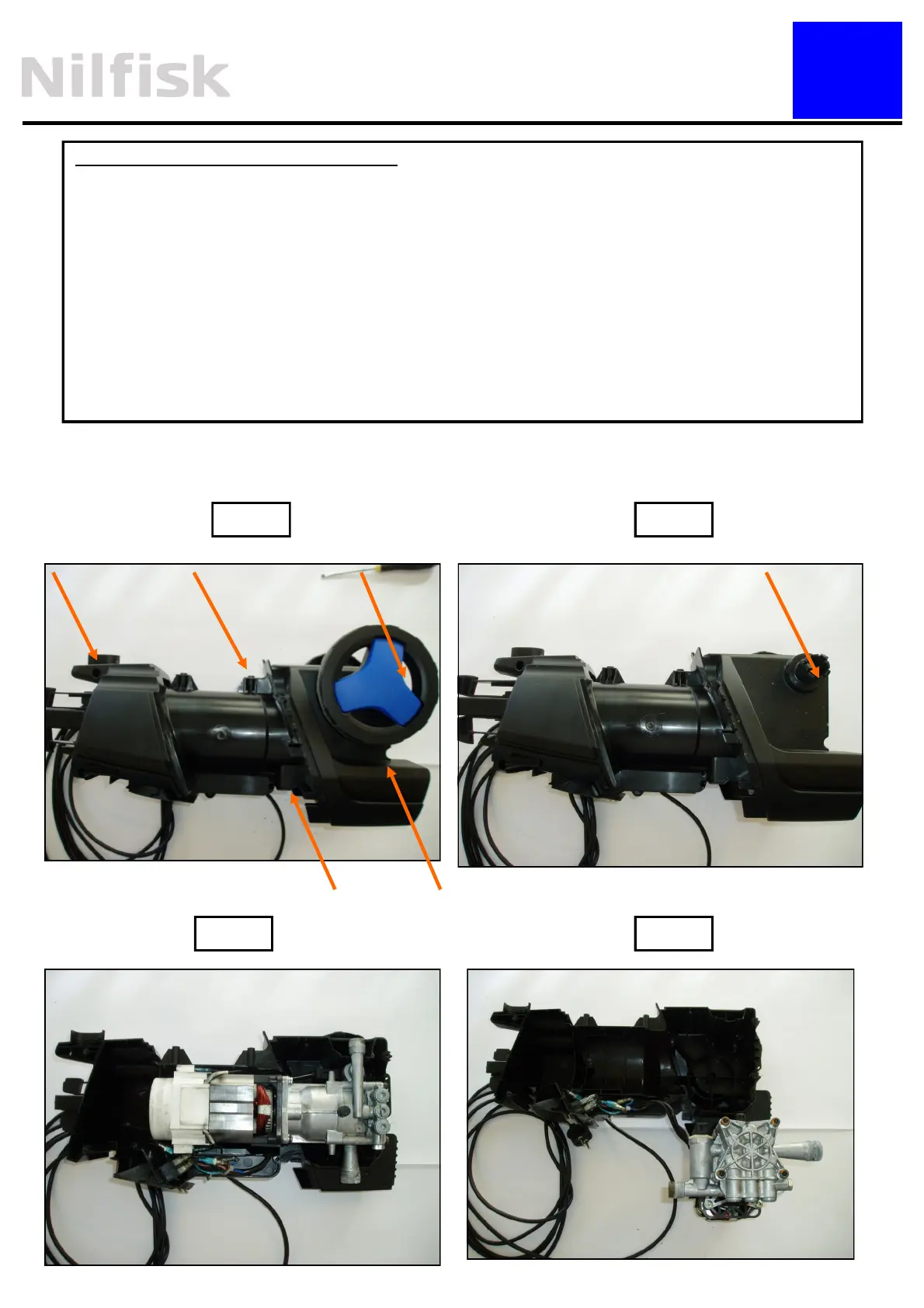

Fig. 1 Fig. 2
Fig. 4 Fig. 3
Dismount / mounting of motor cover.
1. Place the cleaner on the side and remove the 5 torx 20 screws. Fig 1
2. Remove the wheel to remove the 5th. Screw if the torx screw dirver is too short. Fig 2
3. Now the cabinet can be removed and the motor / pump unit can be taken out. Fig 3 & 4
The micro switch box is removed by hand. It can be hard but it is just to be “broken” off!
When mounting the MPU again, first step is to mount the micro switch box. This can be done
by hand (alternatively use a plastic hammer), but be very careful to mount in the correct posi-
tion) Then place the MPU inside the cabinet.
