Service / Repair.
Dismounting / mounting of front cabinet and accessory storage.
1. Tools: Torx 20 screwdriver and flat screw driver
2. Remove the handle by pressing the 2 * 2 snap locks (fig.2). Loosen one side first and
then the other side.
3. Remove the 2 torx (TX20) screws from the rear side (fig. 3)
4. Loosen the front cabinet from the accessories storage with a screw driver as shown on
fig. 4 from both sides. Take off the accessories storage.—When mounting the accesso-
ries storage to the front cabinet, there should be a “click” from the parts before to mount
the 2 screws.
5. Now the front cabinet can be lifted upwards to dismount it.

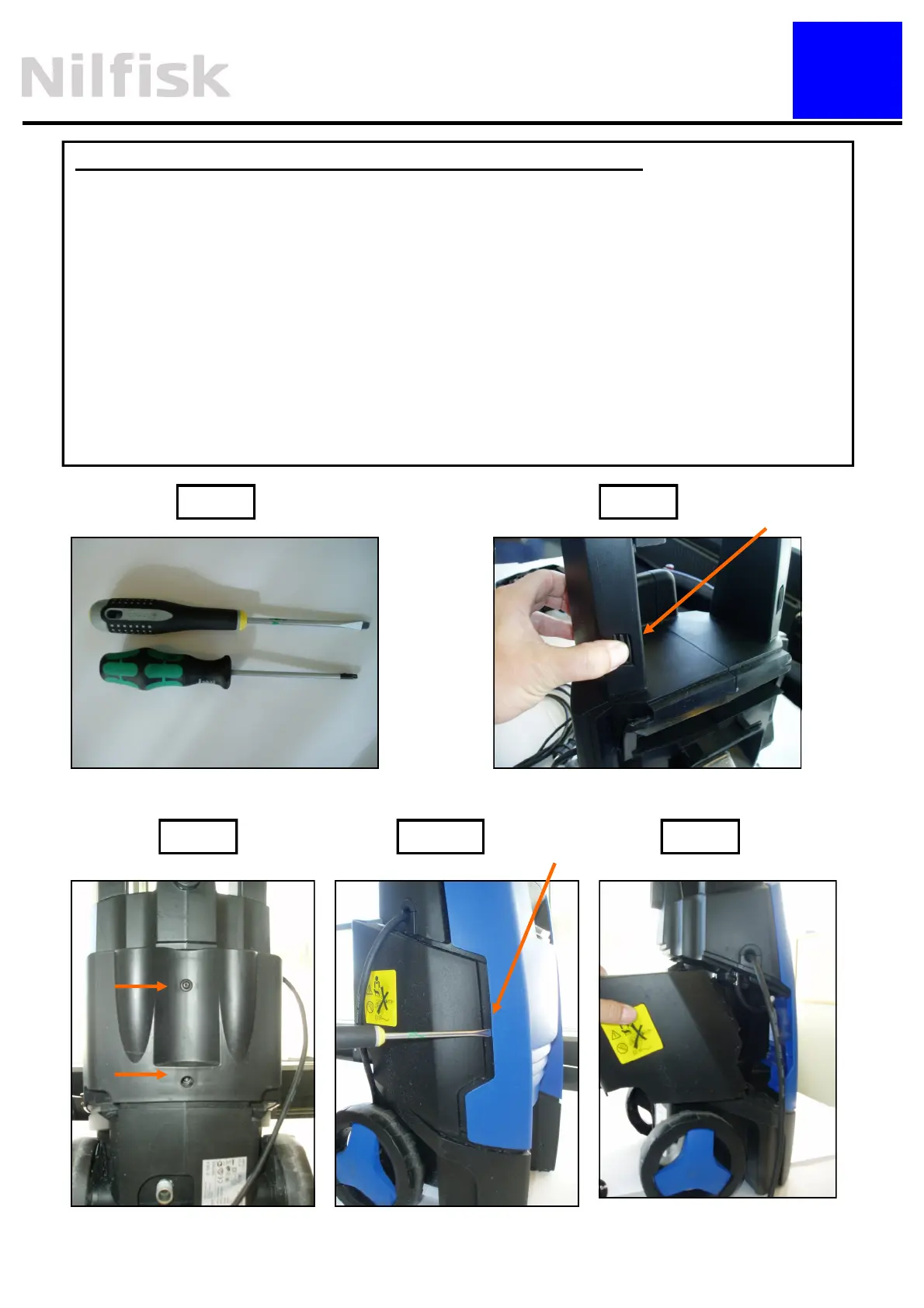

Fig. 1 Fig. 2
Fig. 3 Fig. 4 Fig. 5
