Operation.
3.3 Pressure build up-opening pressure / close gun
3.4 Motor stop – Standby pressure
Outlet
Inlet
130 BAR
3 BAR
130 BAR

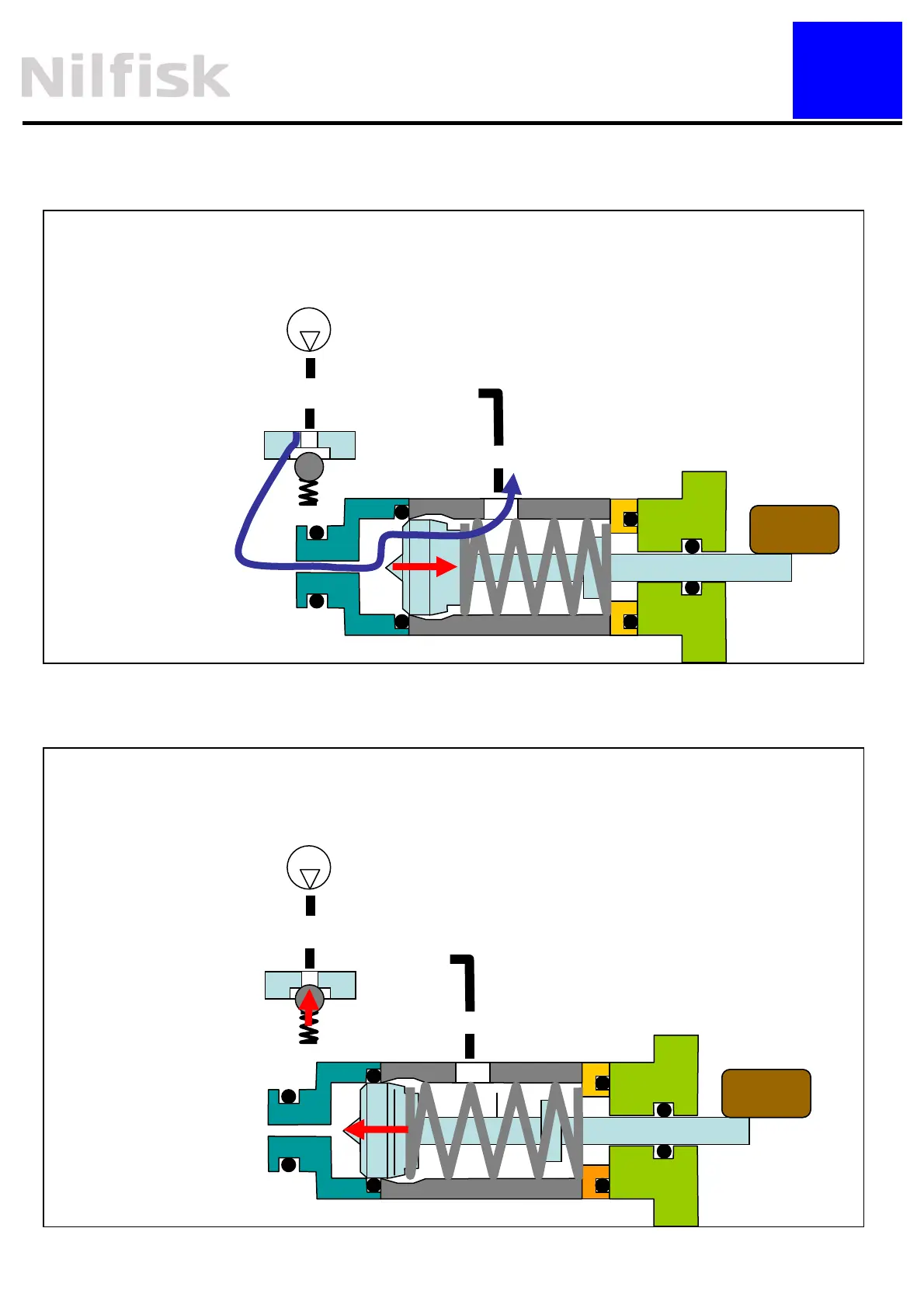

Gun close. Pressure build up. Opening pressure. Micro switch is activated
Non return valve
Pump
Outlet
Inl
25 BAR
3 BAR
25 BAR
Gun close. Motor stops. Pressure in hose decreases to standby pressure.
Pump pressure is also standby pressure.
Non return valve
Pump
