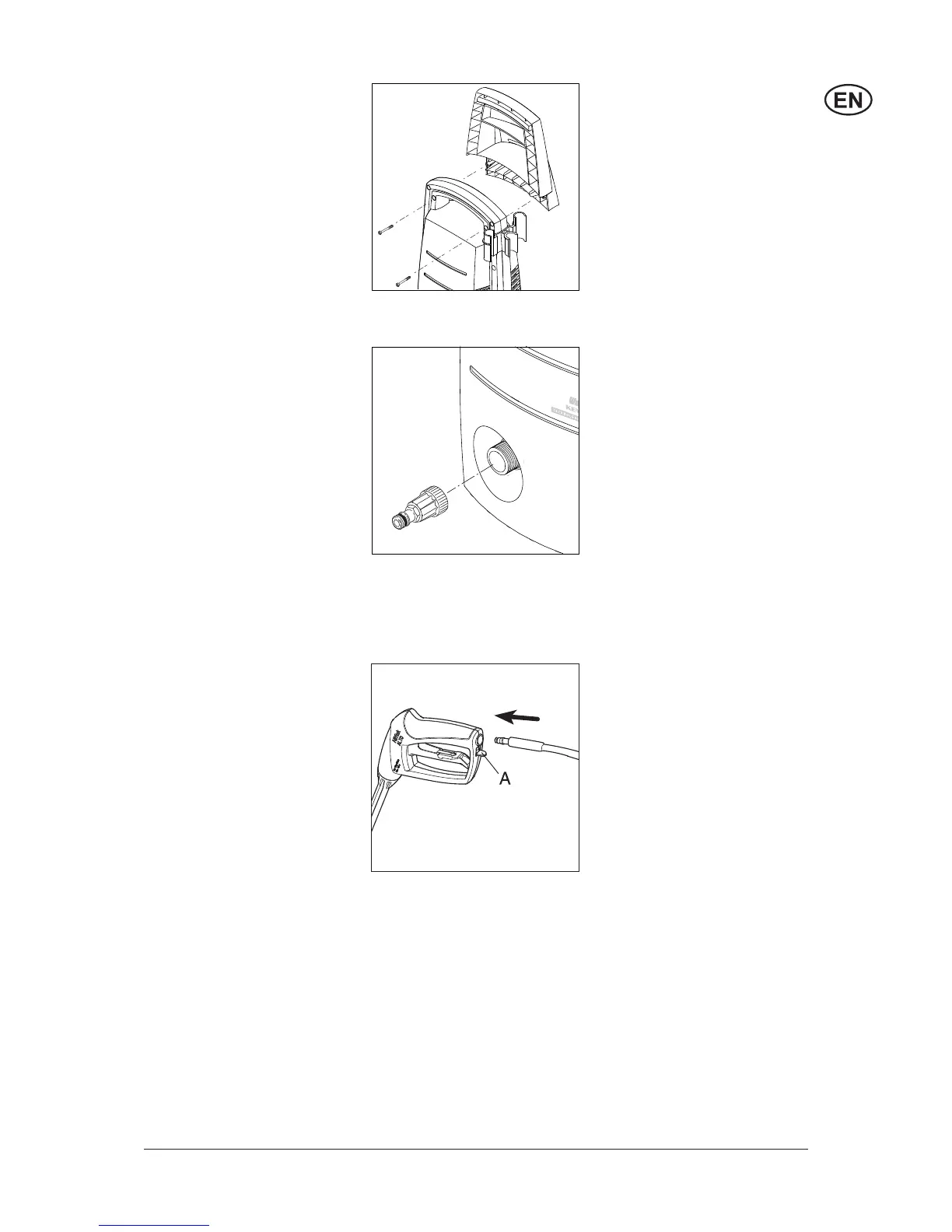

3.6 Mounting of high pres-
sure hose on spray gun
1. Attach the high pressure
hose (4) to the spray gun (7).
Detach the high pressure
hose by pressing the pawl
(A).
3.4 Mounting of trolley
handle (models with trol-
ley handle)
1. Place the trolley handle on
the machine.
2. Secure the handle by mount-
ing the 2 screws.
3.5 Mounting of quick
coupling
1. Screw the quick coupling
tight on to the water inlet (2).
Note: The inlet fi lter (2a) must
always be fi tted in the water
inlet pipe to fi lter out sand, lime-
stone and other impurities as
these will damage the pump
valves.
Caution: Failure
to fi t the fi lter will
invalidate the
guarantee.
