07-02232B 500, 500H 5 Ninja
DAILY OR AFTER EACH USE
Clean the solution inlet filter (Fig. 4). Loosen tank
attachment screw (Fig. 1) and open unit. Remove filter
cover and strainer screen (Fig. 4). Rinse strainer screen
clean in warm water. Replace strainer and retighten filter
cover.
Clean vacuum ball float valve (Fig. 5). Empty recovery
tank, then open recovery tank lid. Grasp valve assembly
and pull gently toward the front of the unit, taking care
not to distort the strainer screen. Rinse assembly clean
and make sure float ball moves freely inside assembly.
Reinstall strainer and vacuum ball float valve assembly
securely.
AS NEEDED
Lubricate the solution line quick-connect coupling
(Fig. 1D) with a small amount of rust-inhibiting oil such
as LPS-3 or WD-40.
To maintain appearance, wipe interior and exterior
surfaces with a damp cloth. For deep cleaning and a
lasting, protective shine, use an automotive vinyl
cleaner/protectant product.
OPTIONS (PURCHASED SEPARATELY)
Wand and Vacuum Hose Kit (48-103): Wand, 25 ft. ¼
in. solution hose and 25 ft. 1½ in. vacuum hose.
HOSS 700 Rotary Cleaning Tool (67-025). Use with
HOSS 700 Adaptor Kit (48-117).
Upholstery Pro (67-019-P)
WARNING: This product and other substances
that may become airborne from its use contain
chemicals, including lead and phthalates, known to the
State of California to cause cancer, birth defects, or
other reproductive harm. For more information, go to
P65Warnings.ca.gov
SPECIFICATIONS
6.6 Ametek producing 659 peak air watts
Solution tank 12 gal. | 37.9 l
Recovery tank: 10 gal. | 37.9 l
Rotomolded polyethylene housing and handle; 10 in. semi-
pneumatic wheels.
One 25 ft. cord (non-heated units)
Two 1 ft. cords (heated units) and two 14/3 AWG 25 ft. ext.
cords
41.5 × 30.25 × 19.75 in. | 105.4 × 76.8 × 50.2 cm
Circuit 1 14.2A
Circuit 2 12.5A

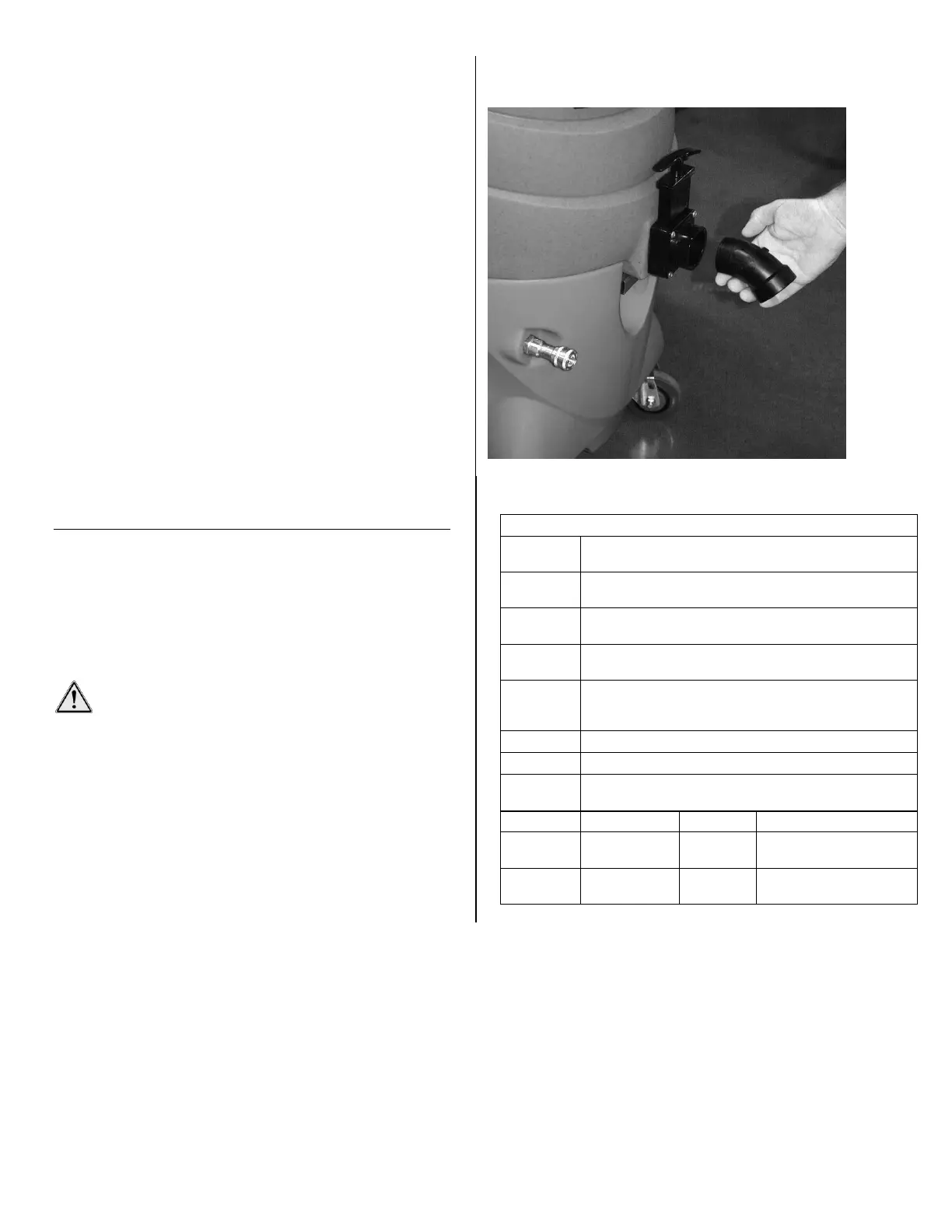

FIG. 6: Gravity drain diverter
