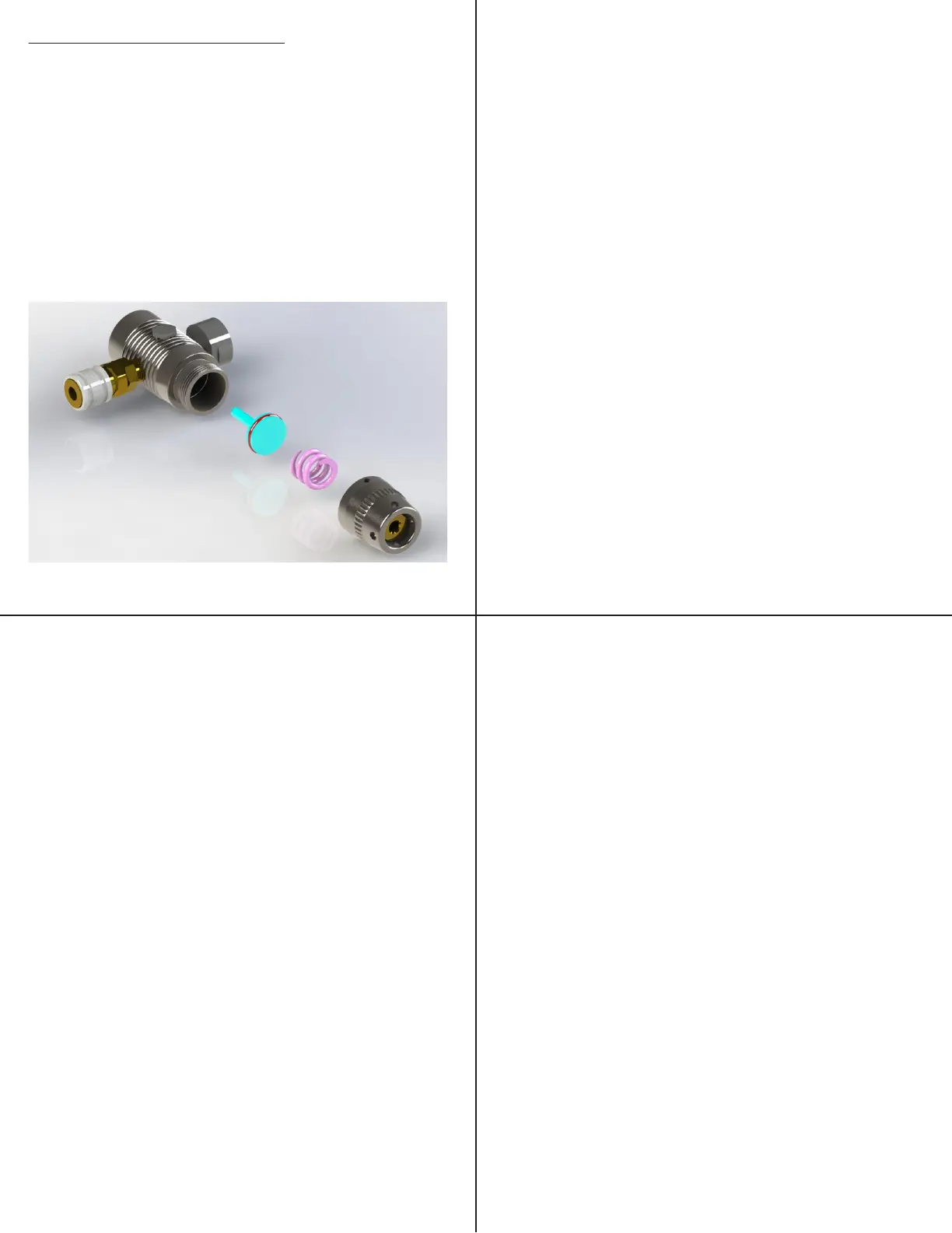

REASSEMBLY (reference figure 2):
1. Reinsert LPRV2 piston # 9 pin- side first. Be certain the pin
enters the center hole (Figure 3: X)
2. Reinsert LPRV2 Main Spring #10, roughly center the
spring on the piston.
3. Verify the LPRV2 Adjuster is fully threaded into the LPRV2
Cap, fully turned counterclockwise.
4. Thread, clockwise, the LPRV2 Cap onto the LPRV2 Body
NO GAP BETWEEN LPRV2 BODY AND LPRV2 CAP.
5. Reinstall the LPRV2 Maintenance Access Locking set
screw #12, DO NOT OVER TIGHTEN!
6. Re-chronograph using the quick start guide in this manual.
Figure 4
