Nintendo Switch Lite User Manual

momentarily displayed on the top left corner of the LCD screen. If this happens,
allow the console to charge for at least 15 to 30 minutes, then press the POWER
Button to boot it up.
 If the console is not charging at all, troubleshoot it by clicking here.

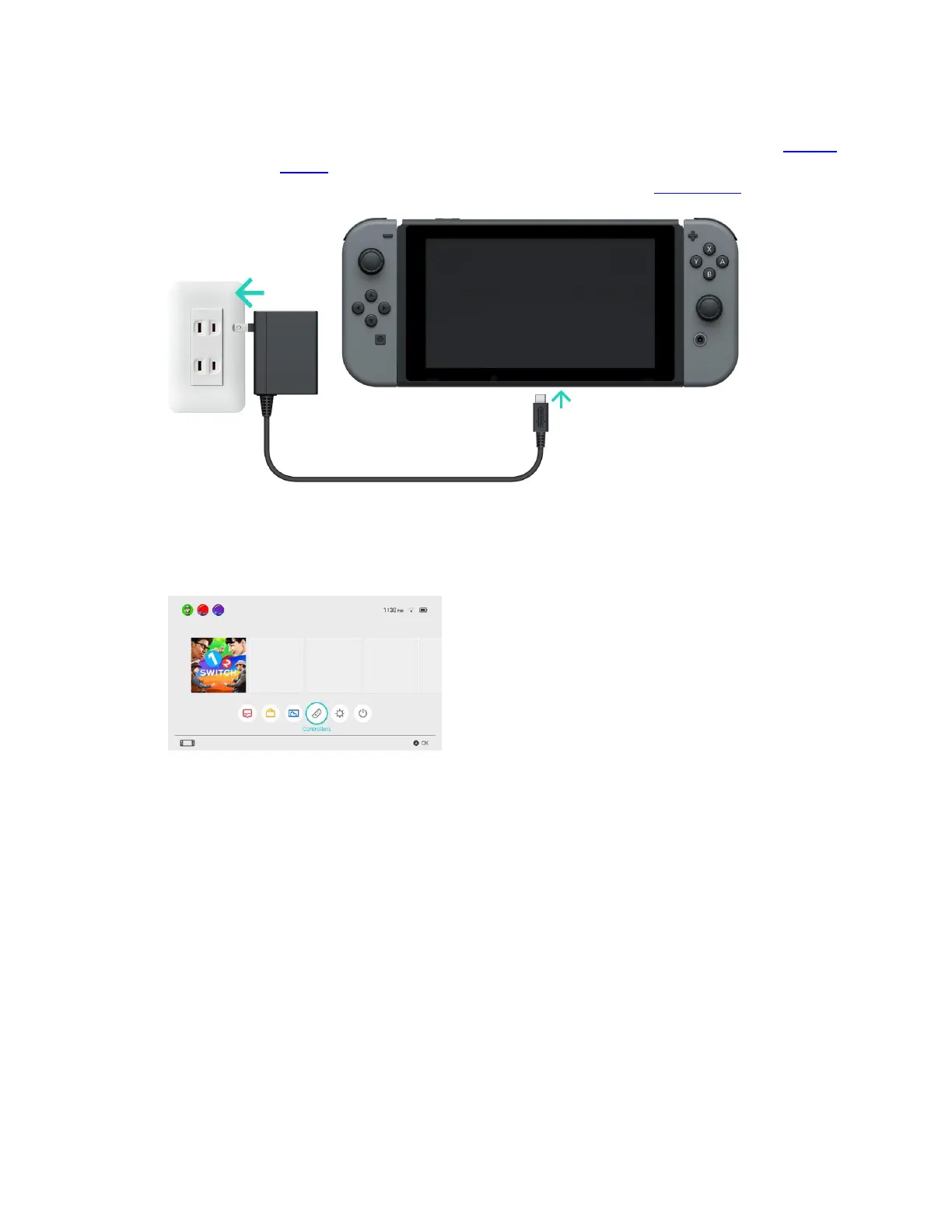

The Nintendo Switch AC Adapter plugging into a wall socket and the Nintendo Switch console
4. From the HOME Menu, select Controllers.
Controllers icon selected on the Nintendo Switch HOME Menu Screen
o The approximate battery charge for the console and any connected controllers will be
displayed within the Controllers screen.

Nintendo Switch Lite Specifications

General

Platform	Nintendo Switch
Accelerometer	Yes
Processor frequency	768 MHz
Headphone outputs	1
USB connector type	USB Type-C
Headphone connectivity	3.5 mm
Built-in camera	No
Number of built-in speakers	2
Product color	Gray
Volume control	Buttons
Gaming control technology	Analogue / Digital
Gaming control function buttons	D-pad
Charging time	3 h
Battery capacity	3750 mAh
Battery life (max)	- h
Aspect ratio	16:9
Display diagonal	5.5 \
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in memory capacity	32 GB
Maximum memory card size	2000 GB
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1

Weight and Dimensions

Depth	13.9 mm
Width	208 mm
Height	91.1 mm
Weight	275 g
