Nirvana FC Series User Manual

To get the best results from your pool heat
pump, its location is critical. The heat pump
takes hot air from its surroundings and
transfers it to the pool water.
To get the best performance from your unit,
there must be a minimum clearance of 48"
(120cm) above the heat pump and 24"
(60cm) around it (image 1). The heat pump
must be installed on a level surface.
We recommend a concrete slab or patio
stone that is detached from the foundation of
the house. The heat pump should not be
installed in an enclosed space (e.g., under a
deck or in a shed ).
2
Image 2: Suggested Bypass System
The electrical connection should be
done by a professional according to
national, state or provincial and city
Codes.
Electrical Connection
WARNING
!
The electrical connection should
be done by a professional
according to national, state or
provincial and city codes.
The unit should be connected
with a sufficient GFCI.
The electrical diagram is located
inside the electrical panel.
Connection requires a 240V
single phase panel.
INSTALLATION
Installation Site Bypass System
Although a bypass system is not necessary
for your heat pump to work properly, we
strongly recommend the use of a bypass
system (image 2) to make the maintenance
and winterizing of the heat pump easier.
24” 24”
48”

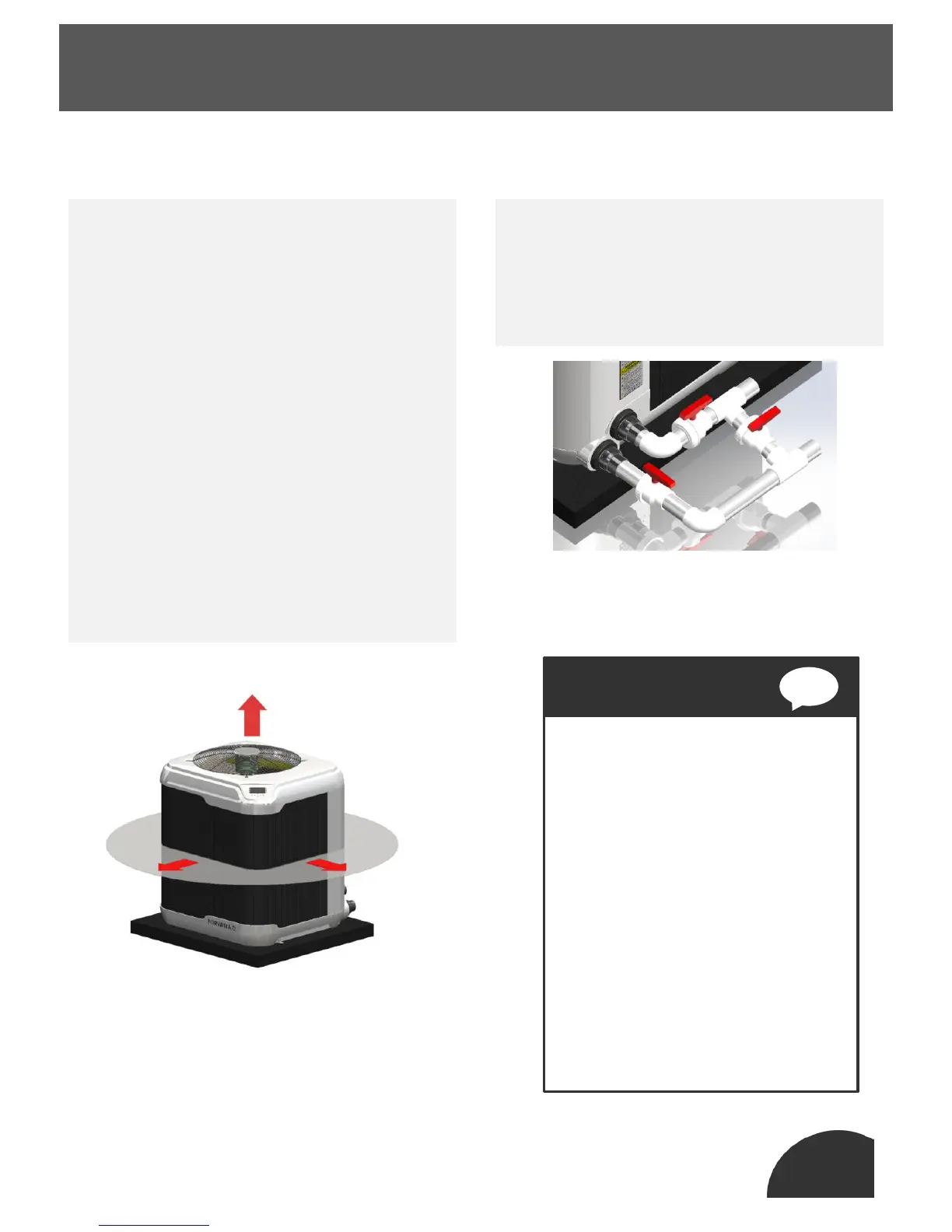

Image 1: Minimum Clearance

Nirvana FC Series Specifications

General

Brand	Nirvana
Model	FC Series
Category	Heat Pump
Language	English
