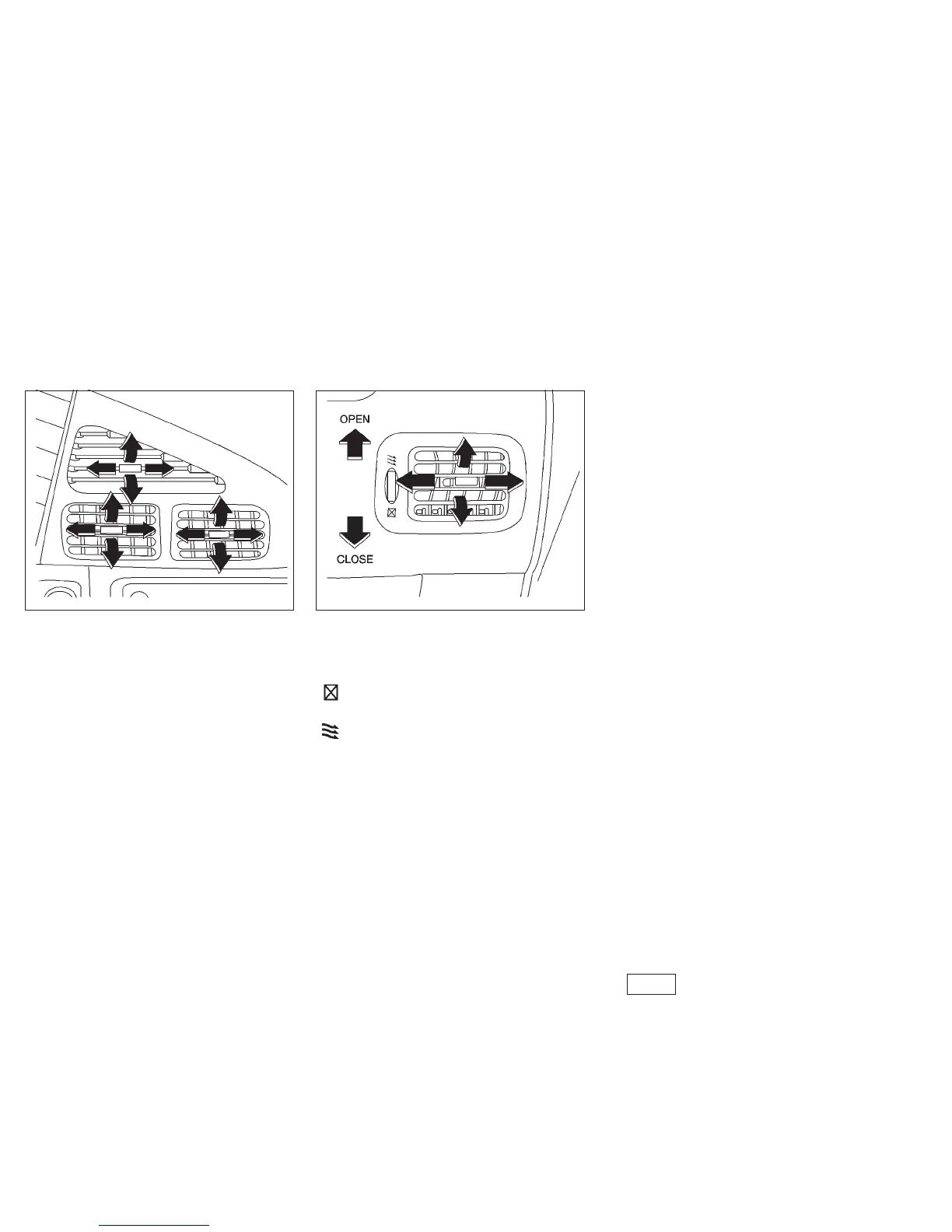

CENTER VENTILATORS
Open, close and adjust the air flow direction
of ventilators.
SIDE VENTILATORS
Open, close and adjust the air flow direction
of ventilators.
: This symbol indicates a vent is closed
when the vent switch is moved down.
: This symbol indicates a vent is open
when the vent switch is moved up.
AHA1056 AHA1055
VENTILATORS
4-2 Heater, air conditioner and audio systems
