HOW TO SELECT PISTON AND BEARING
Undersize Bearing Usage Guide
• When the specified main bearing oil clearance is not obtained with standard size main bearings, use under-
side (US) bearing.
• When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and
grind main journal so that the main bearing oil clearance satisfies the standard.

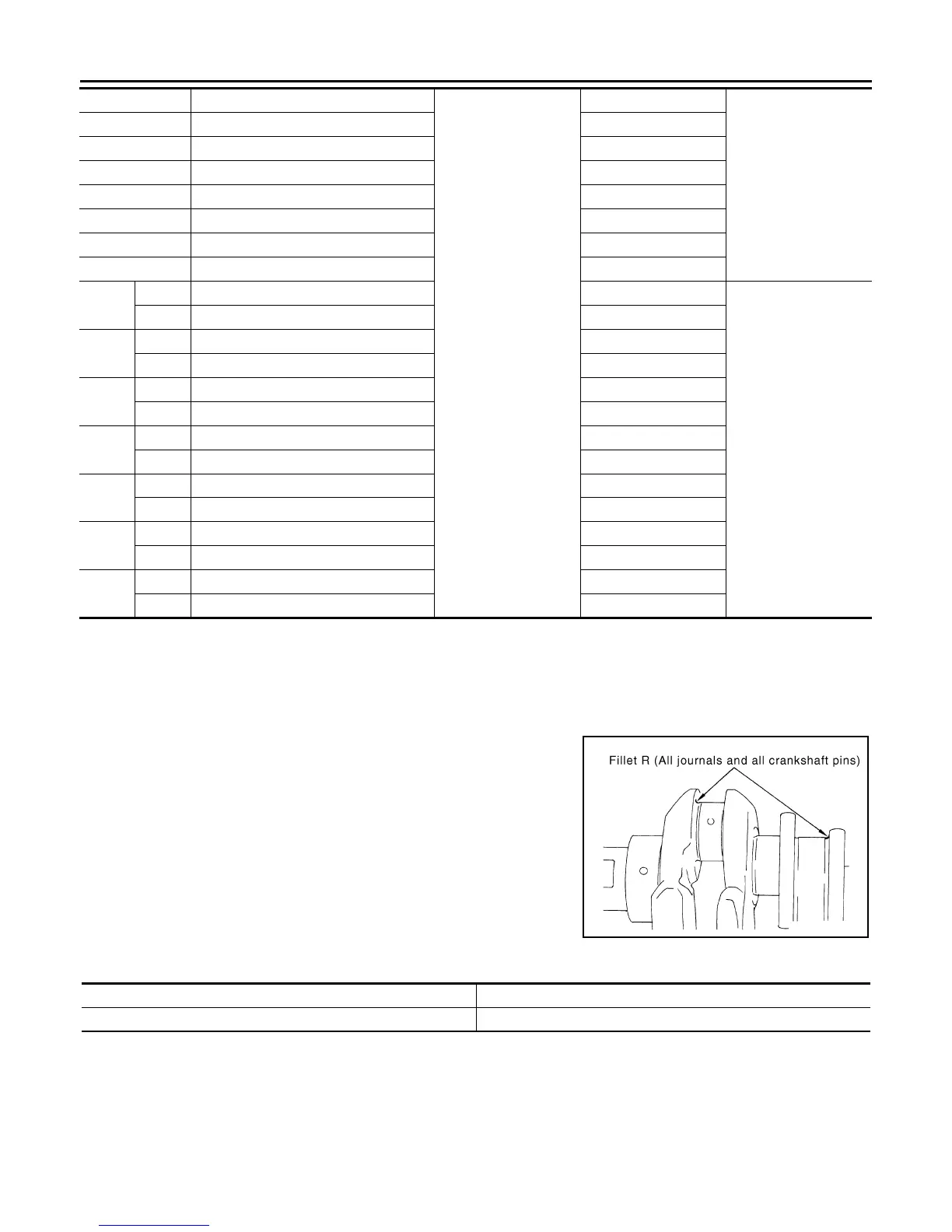

CAUTION:
In grinding crankshaft main journal to use undersize bearings,
keep the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)].
Bearing undersize table
Unit: mm (in)
0 2.500 - 2.503 (0.0984 - 0.0985)
19.9 - 20.1
(0.783 - 0.791)
Black
Grade is the same for
upper and lower bear-
ings.
1 2.503 - 2.506 (0.0985 - 0.0987) Brown
2 2.506 - 2.509 (0.0987 - 0.0988) Green
3 2.509 - 2.512 (0.0988 - 0.0989) Yellow
4 2.512 - 2.515 (0.0989 - 0.0990) Blue
5 2.515 - 2.518 (0.0990 - 0.0991) Pink
6 2.518 - 2.521 (0.0991 - 0.0993) Purple
7 2.521 - 2.524 (0.0993 - 0.0994) White
01
UPR 2.503 - 2.506 (0.0985 - 0.0987) Brown
Grade is different for
upper and lower bear-
ings.
LWR 2.500 - 2.503 (0.0984 - 0.0985) Black
12
UPR 2.506 - 2.509 (0.0987 - 0.0988) Green
LWR 2.503 - 2.506 (0.0985 - 0.0987) Brown
23
UPR 2.509 - 2.512 (0.0988 - 0.0989) Yellow
LWR 2.506 - 2.509 (0.0987 - 0.0988) Green
34
UPR 2.512 - 2.515 (0.0989 - 0.0990) Blue
LWR 2.509 - 2.512 (0.0988 - 0.0989) Yellow
45
UPR 2.515 - 2.518 (0.0990 - 0.0991) Pink
LWR 2.512 - 2.515 (0.0989 - 0.0990) Blue
56
UPR 2.518 - 2.521 (0.0991 - 0.0993) Purple
LWR 2.515 - 2.518 (0.0990 - 0.0991) Pink
67
UPR 2.521 - 2.524 (0.0993 - 0.0994) White
LWR 2.518 - 2.521 (0.0991 - 0.0993) Purple
PBIC1908E
Size Thickness
US 0.25 (0.0098) 2.633 - 2.641 (0.1037 - 0.1040)
