EM-28
< REMOVAL AND INSTALLATION >
[VQ40DE]
INTAKE MANIFOLD
INTAKE MANIFOLD

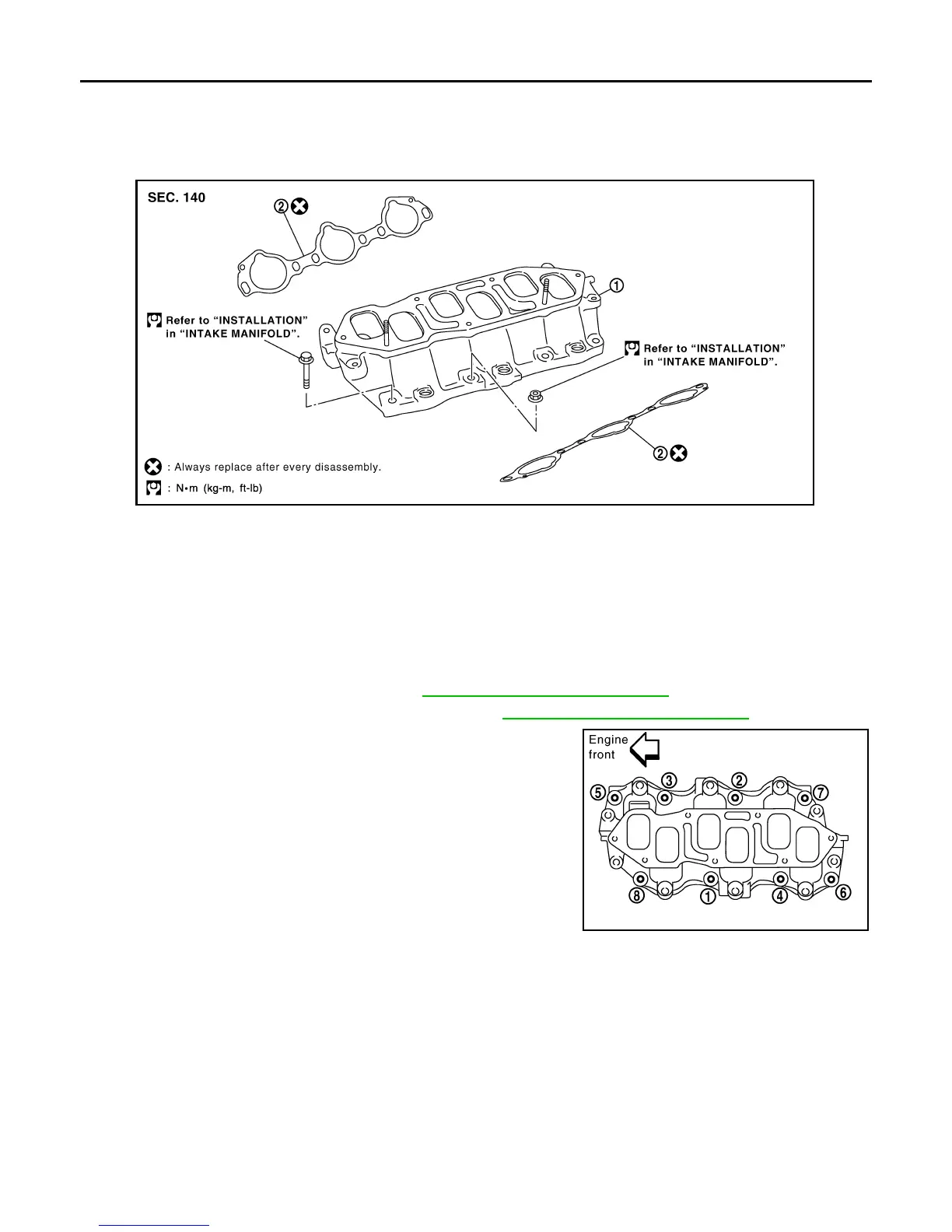

Exploded View INFOID:0000000008798966
Removal and Installation INFOID:0000000008798967
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.
REMOVAL
1. Remove intake manifold collector. Refer to EM-25, "Removal and Installation".
2. Remove fuel tube and fuel injector assembly. Refer to EM-45, "Removal and Installation"
.
3. Loosen nuts and bolts with power tool in reverse order as shown
to remove intake manifold.
4. Remove gaskets.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
INSPECTION AFTER REMOVAL
Surface Distortion
1. Intake manifold 2. Gasket
PBIC2878E
PBIC2879E
Revision: January 2013 2013 Xterra
