Nissan ENGINE - Oil Pan and Oil Strainer Service

EM-34
< REMOVAL AND INSTALLATION >
[VQ40DE]
OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINER

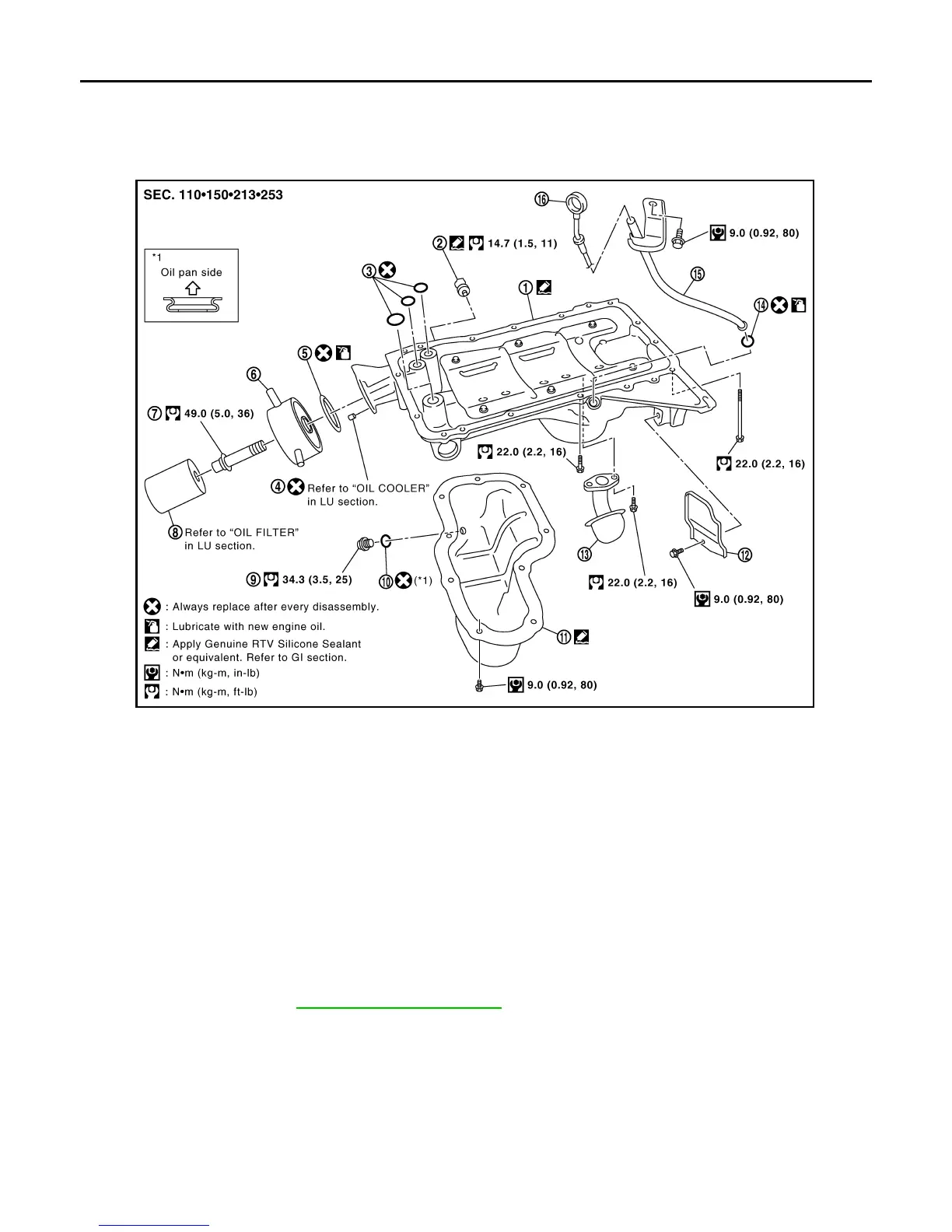

Exploded View INFOID:0000000008798971
Removal and Installation INFOID:0000000008798972
REMOVAL (LOWER)
WARNING:
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove engine under cover.
2. Drain engine oil. Refer to LU-8, "Changing Engine Oil"
.
3. Remove oil pan (lower) as follows:
1. Oil pan (upper) 2. Oil pressure switch 3. O-ring
4. Relief valve 5. O-ring 6. Oil cooler
7. Connector bolt 8. Oil filter 9. Drain plug
10. Drain plug washer 11. Oil pan (lower) 12. Rear cover plate
13. Oil strainer 14 O-ring 15. Oil level gauge guide
16. Oil level gauge
PBIC2883E
Revision: January 2013 2013 Xterra
