EM-40
< REMOVAL AND INSTALLATION >
[VQ40DE]
IGNITION COIL
IGNITION COIL

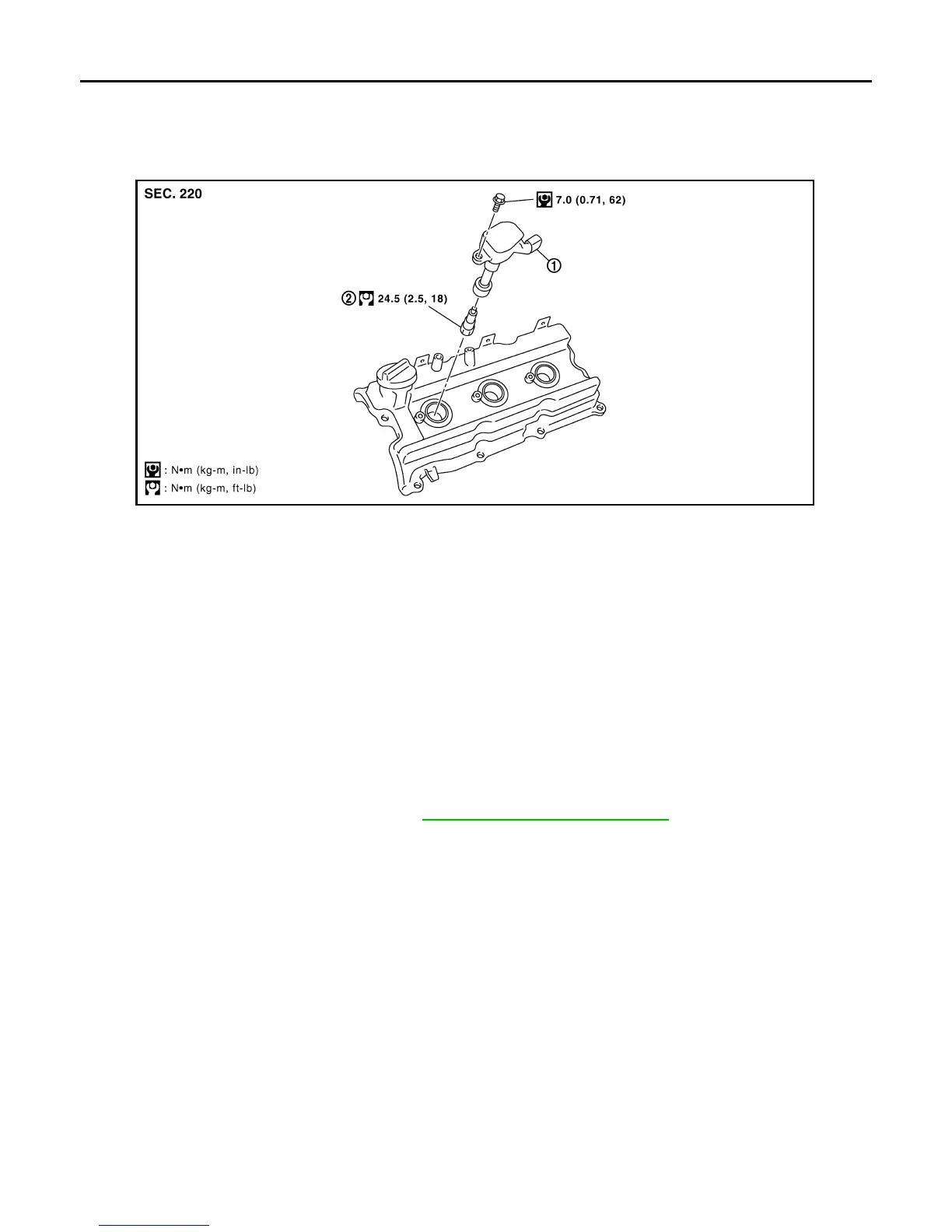

Exploded View INFOID:0000000008798973
Removal and Installation INFOID:0000000008798974
REMOVAL (LH)
1. Move aside harness, harness bracket, and hoses located above ignition coil.
2. Disconnect harness connector from ignition coil.
3. Remove ignition coil.
CAUTION:
Do not shock ignition coil.
INSTALLATION (LH)
Installation is in the reverse order of removal.
REMOVAL (RH)
1. Remove intake manifold collector. Refer to EM-25, "Removal and Installation".
2. Move aside harness, harness bracket, and hoses located above ignition coil.
3. Disconnect harness connector from ignition coil.
4. Remove ignition coil.
CAUTION:
Do not shock ignition coil.
INSTALLATION (RH)
Installation is in the reverse order of removal.
1. Ignition coil 2. Spark plug
PBIC2901E
Revision: January 2013 2013 Xterra
