Nissan ENGINE - Rocker Cover Service

ROCKER COVER
EM-41
< REMOVAL AND INSTALLATION >
[VQ40DE]
C
D
E
F
G
H
I
J
K
L
M
A
EM
N
P
O
ROCKER COVER

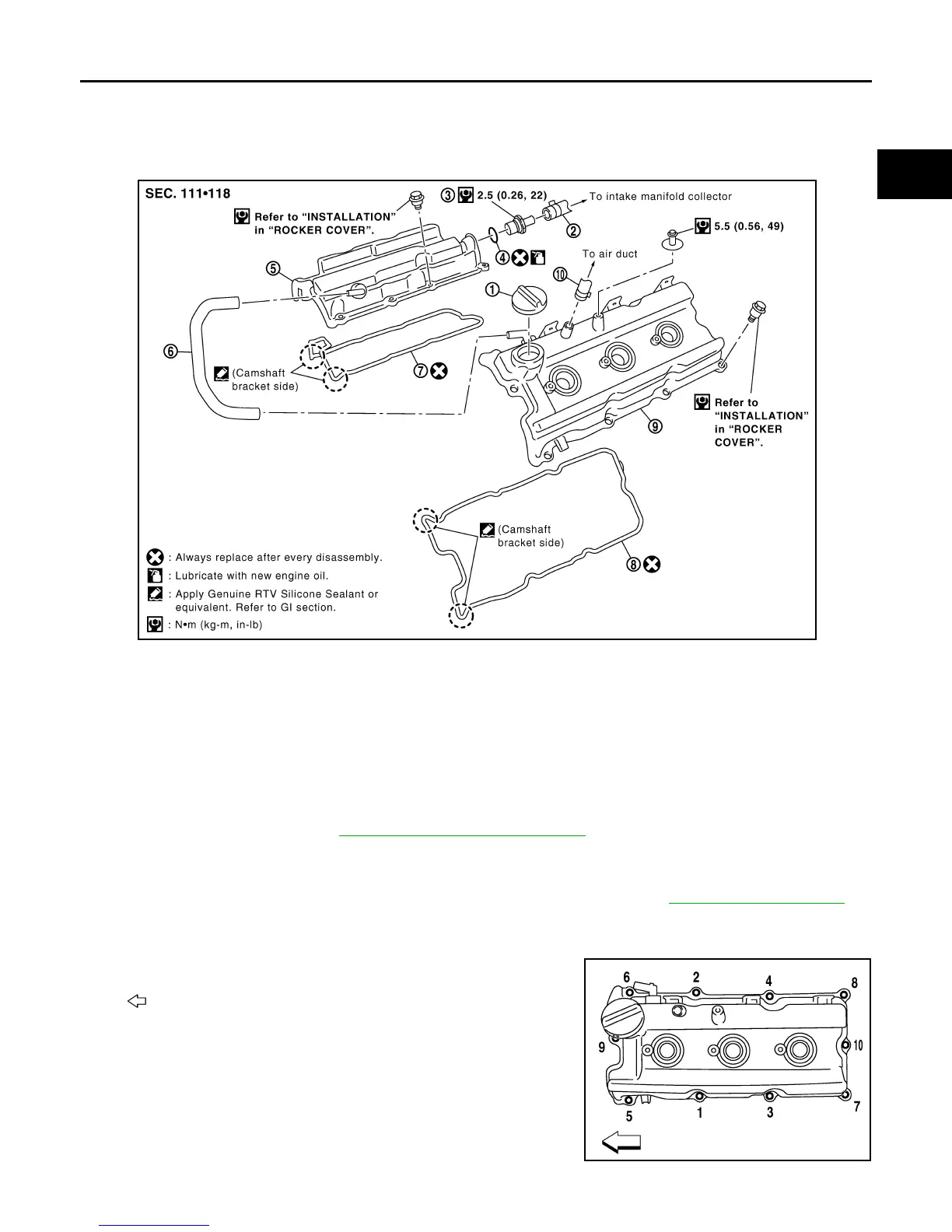

Exploded View INFOID:0000000008798975
Removal and Installation INFOID:0000000008798976
REMOVAL (LH)
1. Remove ignition coils. Refer to EM-40, "Removal and Installation".
2. Separate engine harness removing their brackets from rocker covers.
3. Remove harness bracket from cylinder head, if necessary.
4. Disconnect the intake valve timing control solenoid valve (LH bank). Refer to EM-51, "Exploded View"
.
5. Remove PCV hoses from rocker covers.
6. Remove oil filler cap from rocker cover (LH), if necessary.
7. Remove the rocker cover bolts using power tool in reverse order
as shown.
• : Front
1. Oil filler cap 2. PCV hose 3. PCV valve
4. O-ring 5. Rocker cover (RH) 6. PCV hose
7. Rocker cover gasket (RH) 8. Rocker cover gasket (LH) 9. Rocker cover (LH)
10. PCV hose
PBIC2905E
AWBIA0729ZZ
Revision: January 2013 2013 Xterra
