EM-44
< REMOVAL AND INSTALLATION >
[VQ40DE]
ROCKER COVER

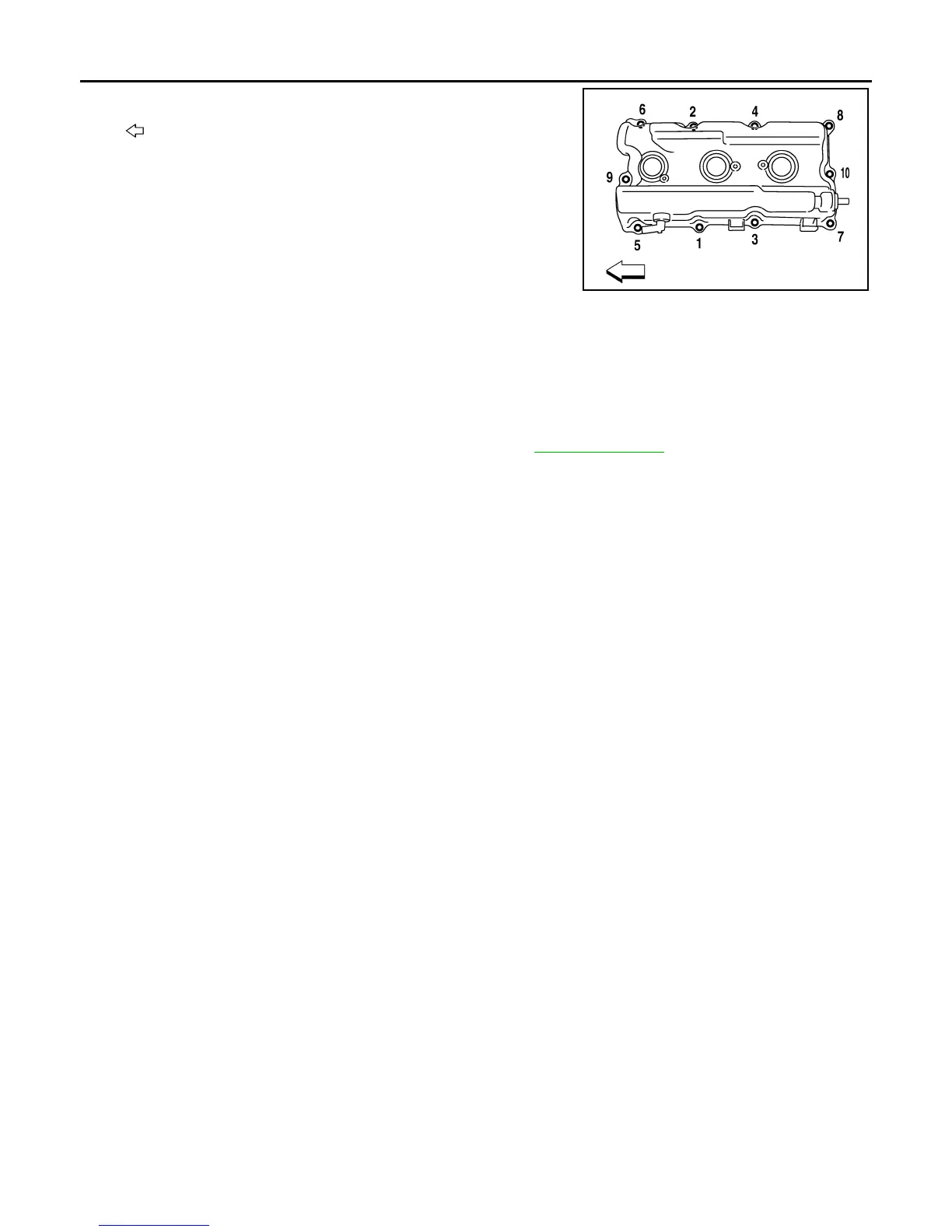

4. Tighten the rocker cover bolts in two steps in numerical order as
shown.
• : Front
5. Install new O-ring and PCV valve to rocker cover (RH), if removed.
CAUTION:
Do not reuse O-ring.
6. Install PCV hose.
• Insert PCV hose by 25 to 30 mm (0.98 to 1.18 in) from connector end.
• When installing, be careful not to twist or come in contact with other parts.
7. Installation of the remaining components is in the reverse order of removal.
• Check engine oil level and adjust as necessary. Refer to LU-7, "Inspection"
.
1st step : 1.96 N·m (0.20 kg-m, 17 in-lb)
2nd step : 8.33 N·m (0.85 kg-m, 74 in-lb)
AWBIA0730ZZ
Revision: January 2013 2013 Xterra
