Nissan ENGINE - Page 69

TIMING CHAIN TENSIONER
EM-69
< REMOVAL AND INSTALLATION >
[VQ40DE]
C
D
E
F
G
H
I
J
K
L
M
A
EM
N
P
O

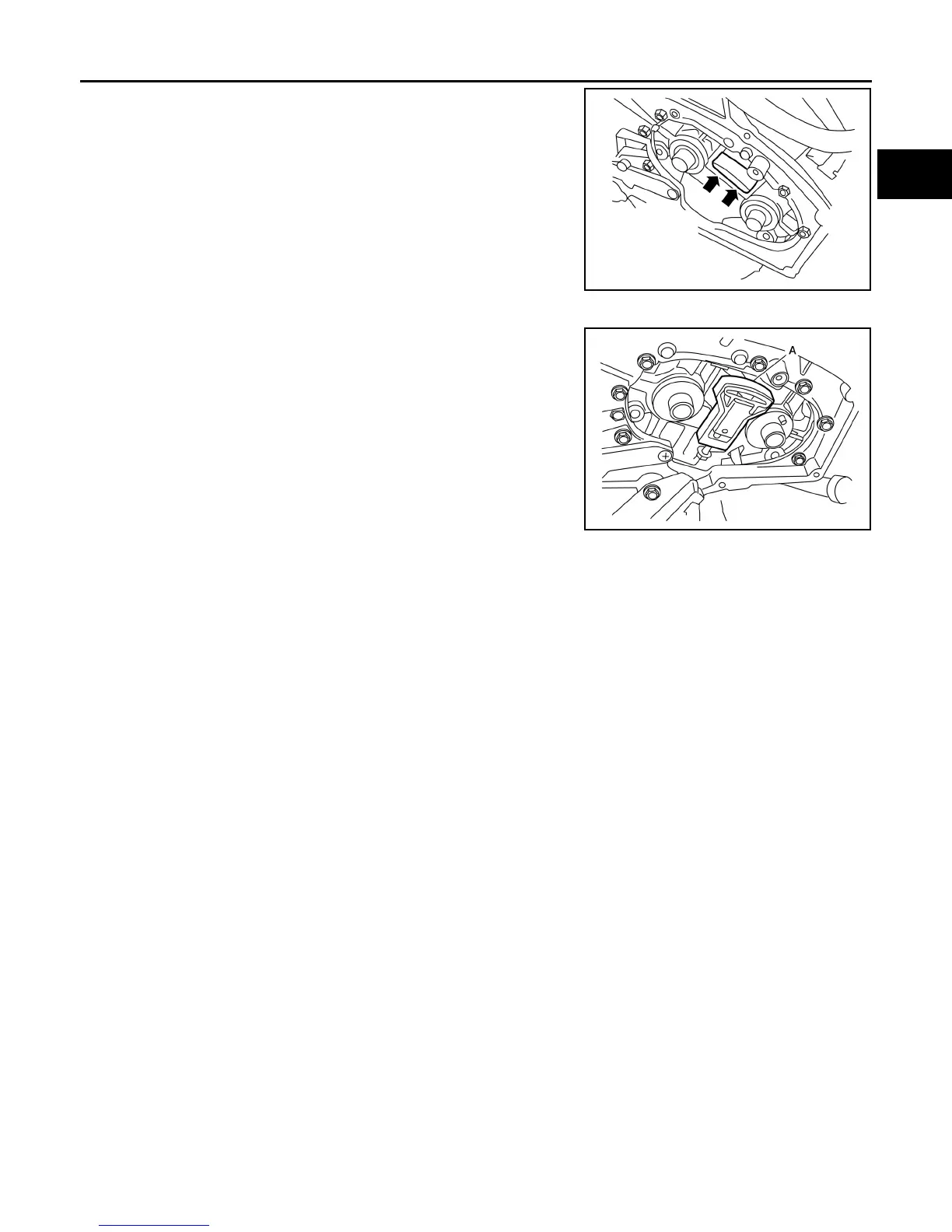

2. Remove the secondary timing chain tensioner shoe by evenly
prying at base of shoe with suitable tool as shown.
INSTALLATION
1. Install new secondary timing chain tensioner shoe using Tool (A)
as shown.
• Tighten the bolt until the secondary timing chain tensioner
shoe is fully seated on the secondary timing chain tensioner.
CAUTION:
Do not overtighten bolt.
2. Installation of the remaining components is in the reverse order
of removal.
ALBIA0676ZZ
Tool number : — (J-50246)
ALBIA0677ZZ
Revision: January 2013 2013 Xterra
