REAR TIMING CHAIN CASE
EM-71
< REMOVAL AND INSTALLATION >
[VQ40DE]
C
D
E
F
G
H
I
J
K
L
M
A
EM
N
P
O

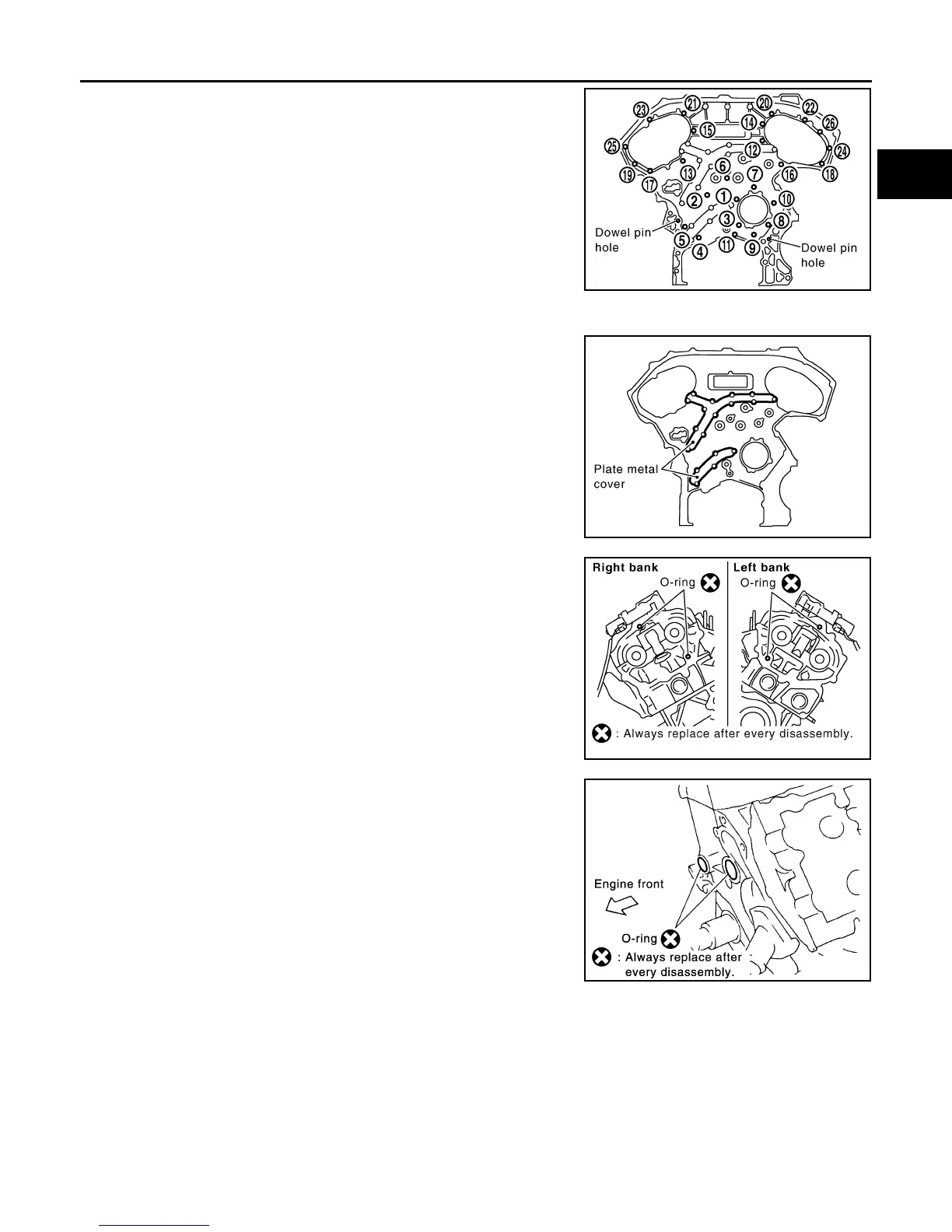

a. Loosen and remove bolts using power tool in reverse order as
shown.
b. Cut liquid gasket using Tool and remove rear timing chain case.
CAUTION:
Do not damage the mating surfaces.
CAUTION:
• Do not remove plate metal cover of oil passage.
• After removal, handle rear timing chain case carefully so
it does not twist, bend, or warp under a load.
6. Remove O-rings from cylinder head and camshaft bracket (No.
1).
CAUTION:
Do not reuse O-rings.
7. Remove O-rings from cylinder block.
CAUTION:
Do not reuse O-rings.
Tool number : KV10111100 (J-37228)
PBIC2921E
PBIC2922E
SBIA0496E
PBIC0788E
Revision: January 2013 2013 Xterra
