EM-72
< REMOVAL AND INSTALLATION >
[VQ40DE]
REAR TIMING CHAIN CASE

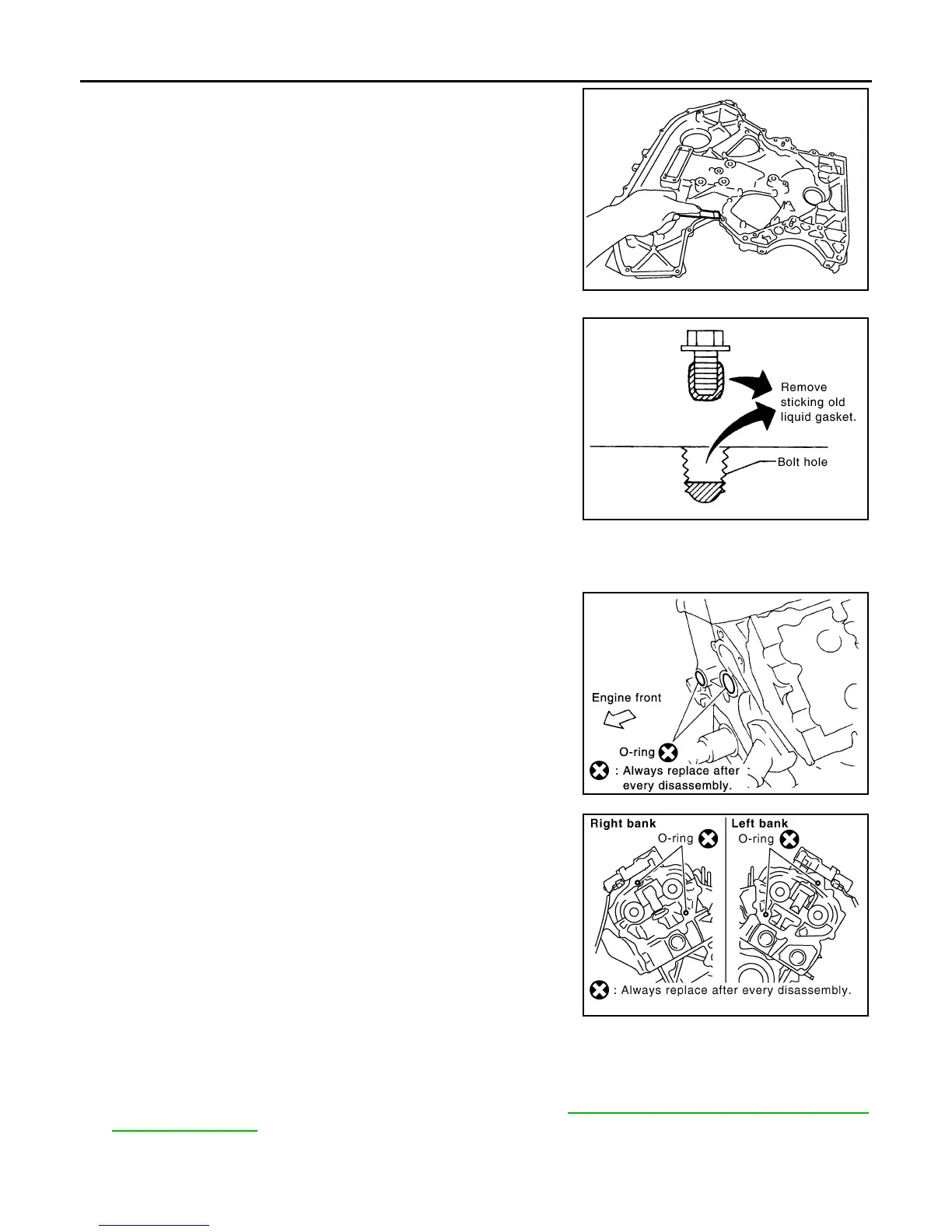

8. Use scraper to remove all traces of old liquid gasket from rear
timing chain case, and opposite mating surfaces.
• Remove old liquid gasket from bolt hole and thread.
INSTALLATION
1. Install rear timing chain case as follows:
a. Install new O-rings onto cylinder block.
CAUTION:
Do not reuse O-rings.
b. Install new O-rings to cylinder head and camshaft bracket
(No. 1).
CAUTION:
Do not reuse O-rings.
c. Apply liquid gasket using Tool to rear timing chain case back side as shown.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-17, "Recommended Chemical Prod-
ucts and Sealants".
CAUTION:
• For “A”, completely wipe off liquid gasket covering the area shown.
PBIC2910E
PBIC2084E
PBIC0788E
SBIA0496E
Tool number : WS39930000 ( — )
Revision: January 2013 2013 Xterra
