Nissan ENGINE - Camshaft Service

CAMSHAFT
EM-75
< REMOVAL AND INSTALLATION >
[VQ40DE]
C
D
E
F
G
H
I
J
K
L
M
A
EM
N
P
O
CAMSHAFT

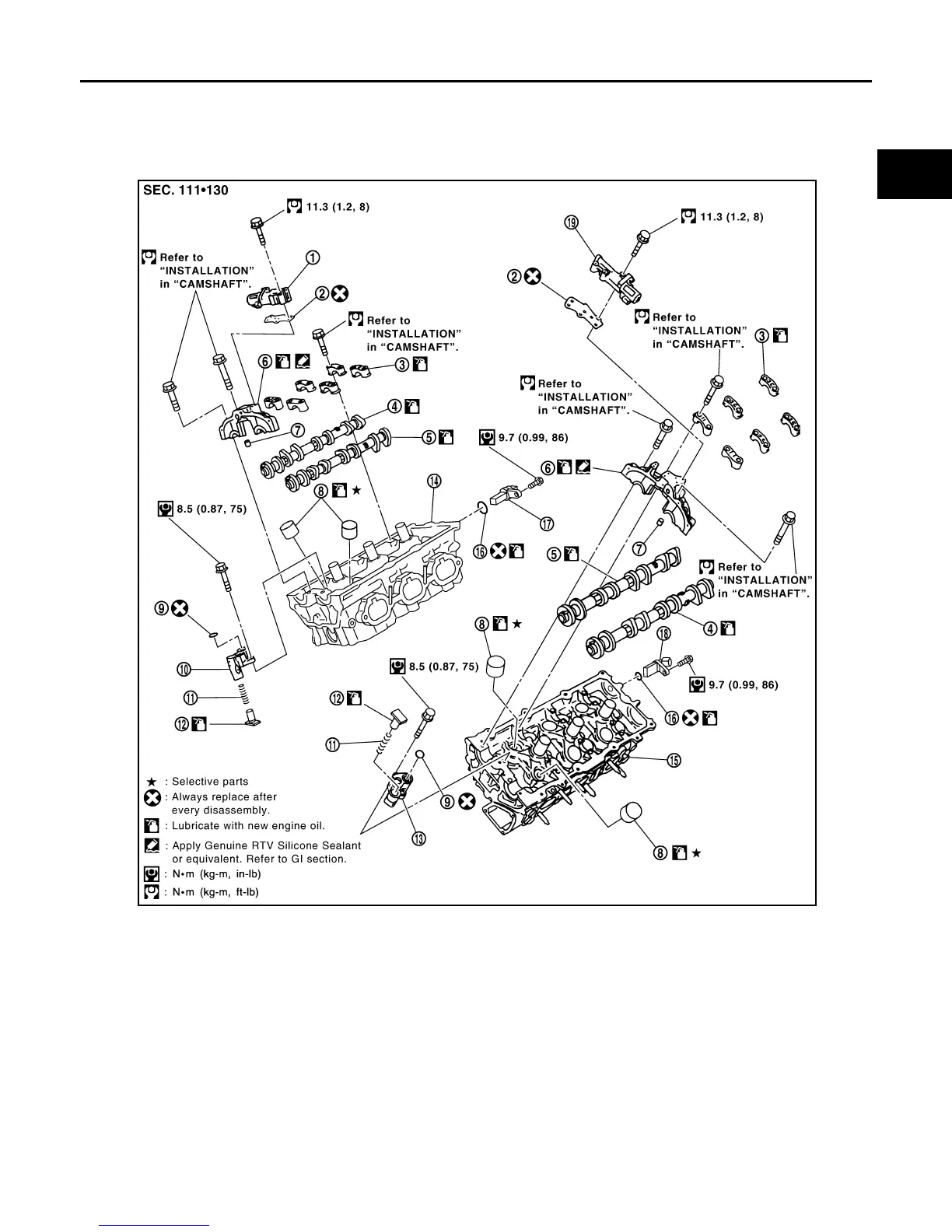

Exploded View INFOID:0000000008798991
1.
Intake valve timing control solenoid
valve (RH bank)
2. Gasket 3. Camshaft bracket (No. 2 to 4)
4. Camshaft (EXH) 5. Camshaft (INT) 6. Camshaft bracket (No. 1)
7. Dowel pin 8. Valve lifter 9. O-ring
10.
Timing chain tensioner (secondary)
(RH bank)
11. Spring 12. Plunger
13.
Timing chain tensioner (secondary)
(LH bank)
14. Cylinder head (RH bank) 15. Cylinder head (LH bank)
16. O-ring 17.
Camshaft position sensor (PHASE)
(RH bank)
18.
Camshaft position sensor (PHASE)
(LH bank)
19. Intake valve timing control solenoid
valve (LH bank)
PBIC2930E
Revision: January 2013 2013 Xterra
