EM-86
< REMOVAL AND INSTALLATION >
[VQ40DE]
OIL SEAL

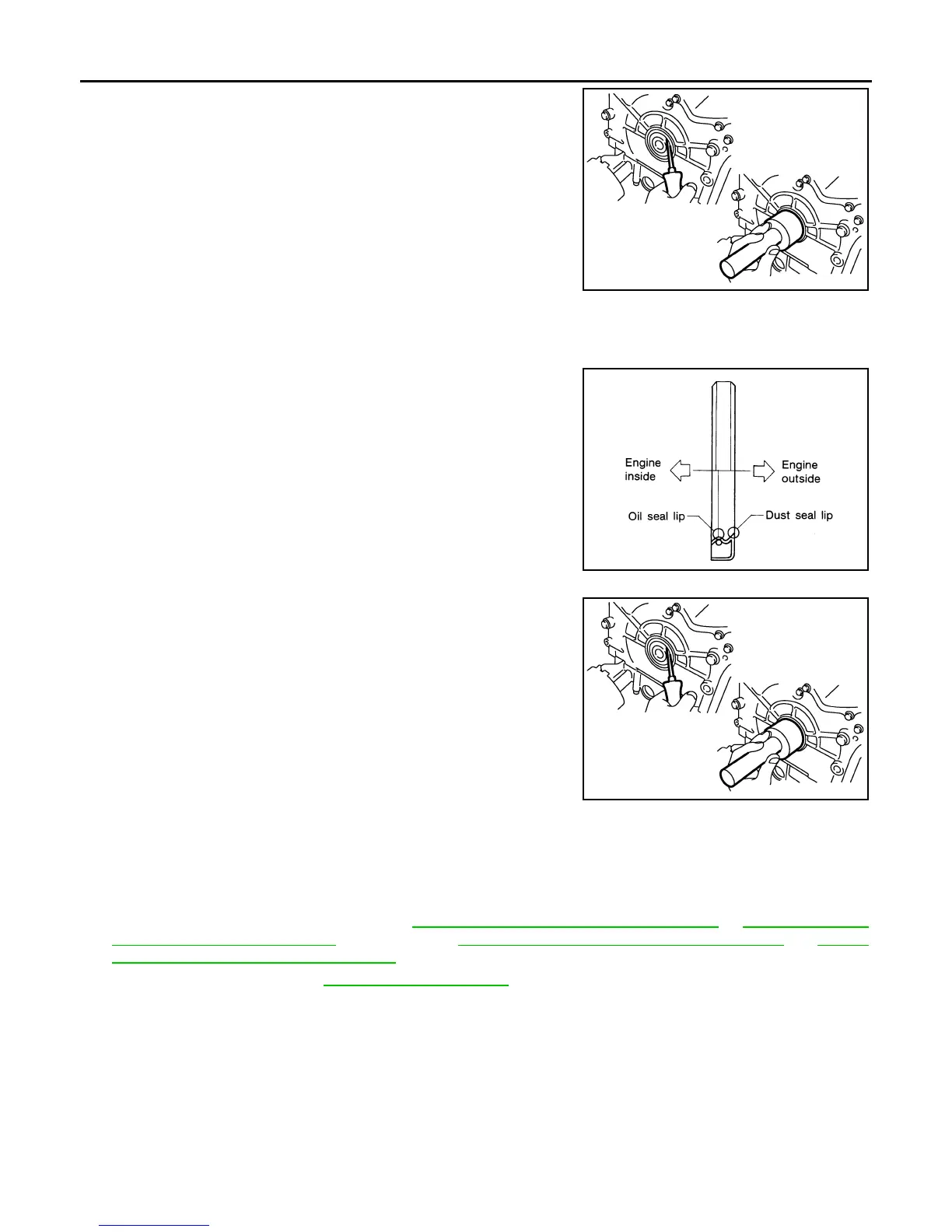

5. Remove front oil seal using suitable tool.
CAUTION:
Be careful not to damage front timing chain case and crank-
shaft.
INSTALLATION
1. Apply new engine oil to both oil seal lip and dust seal lip of new front oil seal.
2. Install front oil seal.
• Install front oil seal so that each seal lip is oriented as shown.
• Press-fit until the height of front oil seal is level with the mount-
ing surface using suitable tool.
- Suitable drift: outer diameter 60 mm (2.36 in), inner diameter
50 mm (1.97 in).
CAUTION:
• Be careful not to damage front timing chain case and
crankshaft.
• Press-fit straight and avoid causing burrs or tilting oil
seal.
3. Installation is in the reverse order of removal after this step.
Removal and Installation of Rear Oil Seal INFOID:0000000008798995
REMOVAL
1. Remove transmission assembly. Refer to TM-248, "Removal and Installation (2WD)" or TM-21, "Removal
and Installation from Vehicle"(2WD models), TM-250, "Removal and Installation (4WD)" or TM-21,
"Removal and Installation from Vehicle"(4WD models).
2. Remove drive plate. Refer to EM-102, "Exploded View"
.
PBIC2931E
SEM715A
PBIC2931E
Revision: January 2013 2013 Xterra
