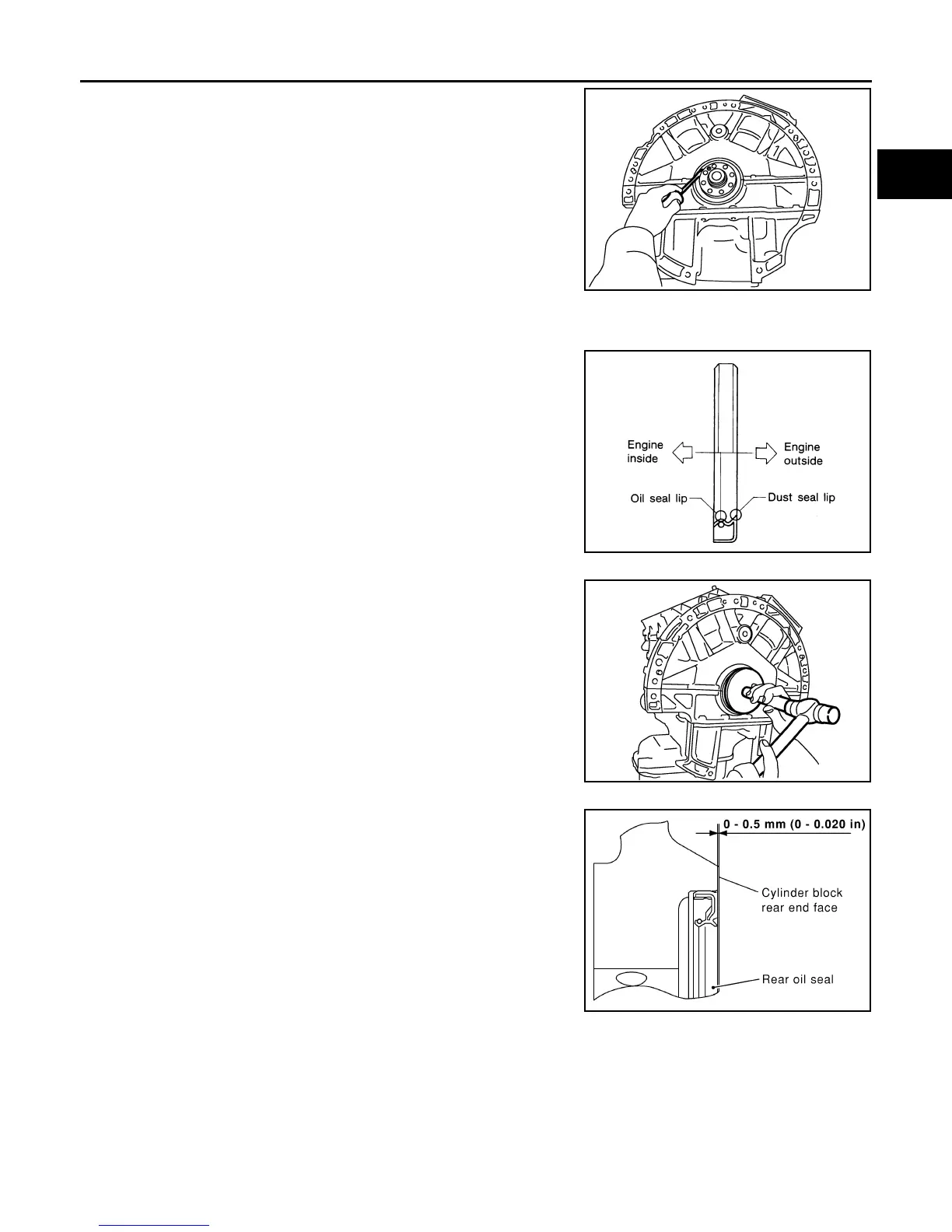

3. Remove rear oil seal with a suitable tool.
CAUTION:
Be careful not to damage crankshaft and cylinder block.
INSTALLATION
1. Apply new engine oil to new rear oil seal joint surface and seal lip.
2. Install rear oil seal so that each seal lip is oriented as shown.
• Install new rear oil seal using Tool.
CAUTION:
• Be careful not to damage crankshaft and cylinder block.
• Press-fit oil seal straight to avoid causing burrs or tilt-
ing.
• Do not touch grease applied onto oil seal lip.
• Press in rear oil seal to the position as shown.
3. Installation of the remaining components is in the reverse order of removal.
CAUTION:
• When replacing an engine or transmission you must make sure the dowels are installed cor-
rectly during reassembly.
• Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of
drivetrain components.
PBIC2932E
SEM715A
Tool number : — (J-49815)
: — (J-8092)
PBIC2933E
SBIA0281E
