[ Edit: 2015/ 7/ 9 Model: F15-D ]

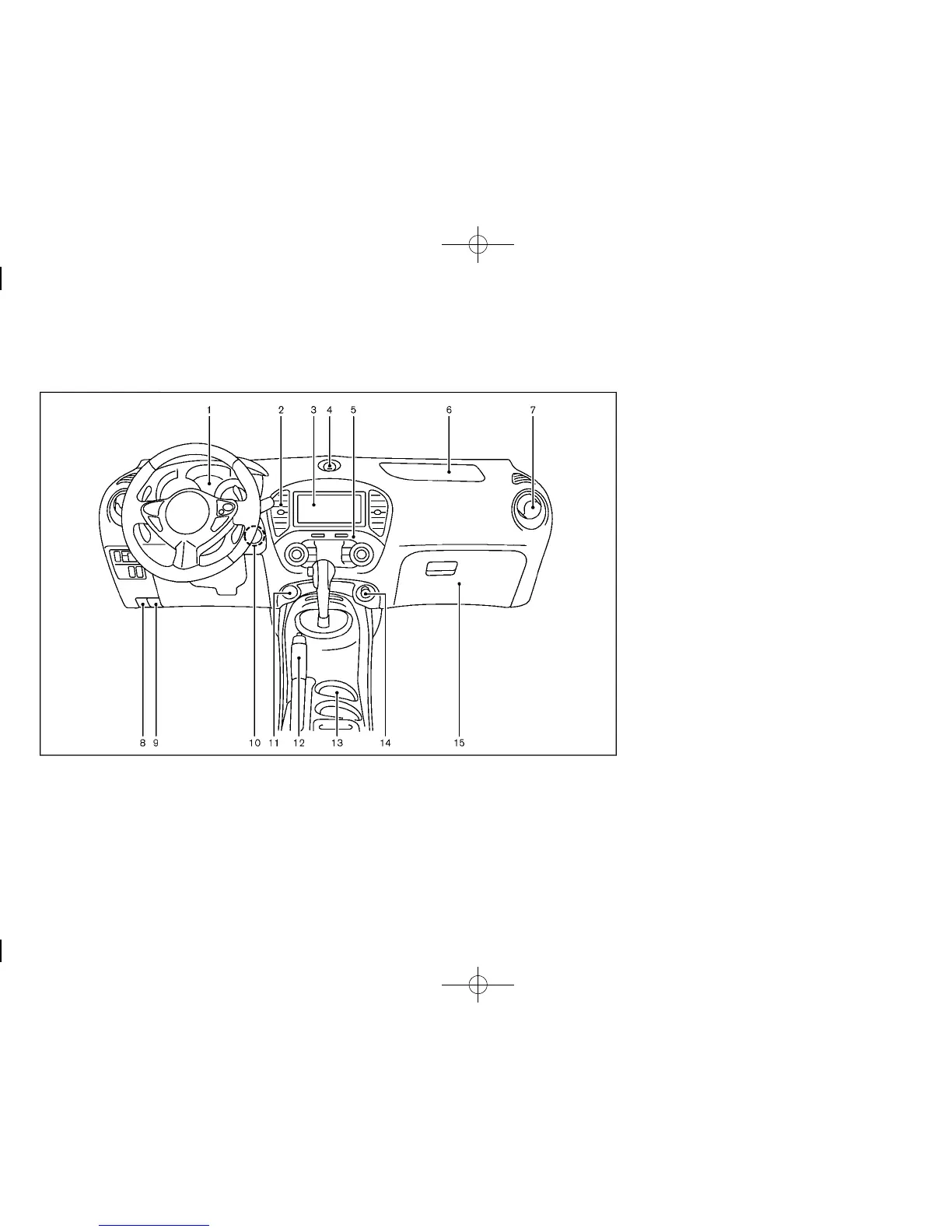

0-8 Illustrated table of contents
GUID-E541DB03-EC76-48F2-8AC1-CDA28F389925
JVC0607X
1. Meters and gauges (P.2-5)
2. Center ventilator (P.4-27)
3. Audio system* or Navigation system** (P.4-35)
4. Hazard warning flasher switch (P.6-2)
5. Integrated Control System* (P.2-24)
— Drive mode (P.5-22)
— Heater and air conditioner control (P.4-28)
— Defroster switch (P.2-37)
5. Heater and air conditioner control (models
without Integrated Control System) (P.4-28)
— Defroster switch (P.2-37)
6. Front passenger supplemental air bag (P.1-38)
7. Side ventilator (P.4-27)
8. Fuel-filler door release handle (P.3-18)
9. Hood release handle (P.3-15)
10. Push-button ignition switch (P.5-9)
11. Auxiliary input jack/USB connection port*
(P.4-38)
12. Parking brake (P.5-25)
13. Cup holder (P.2-46)
14. Power outlet (P.2-45)
15. Glove box (P.2-47)
*: if so equipped
**: Refer to the separate Navigation System Own-
er’s Manual.
INSTRUMENT PANEL
