[ Edit: 2015/ 7/ 9 Model: F15-D ]
GUID-ADD7704B-E089-476F-B602-46E63AF51822
JVC0850X

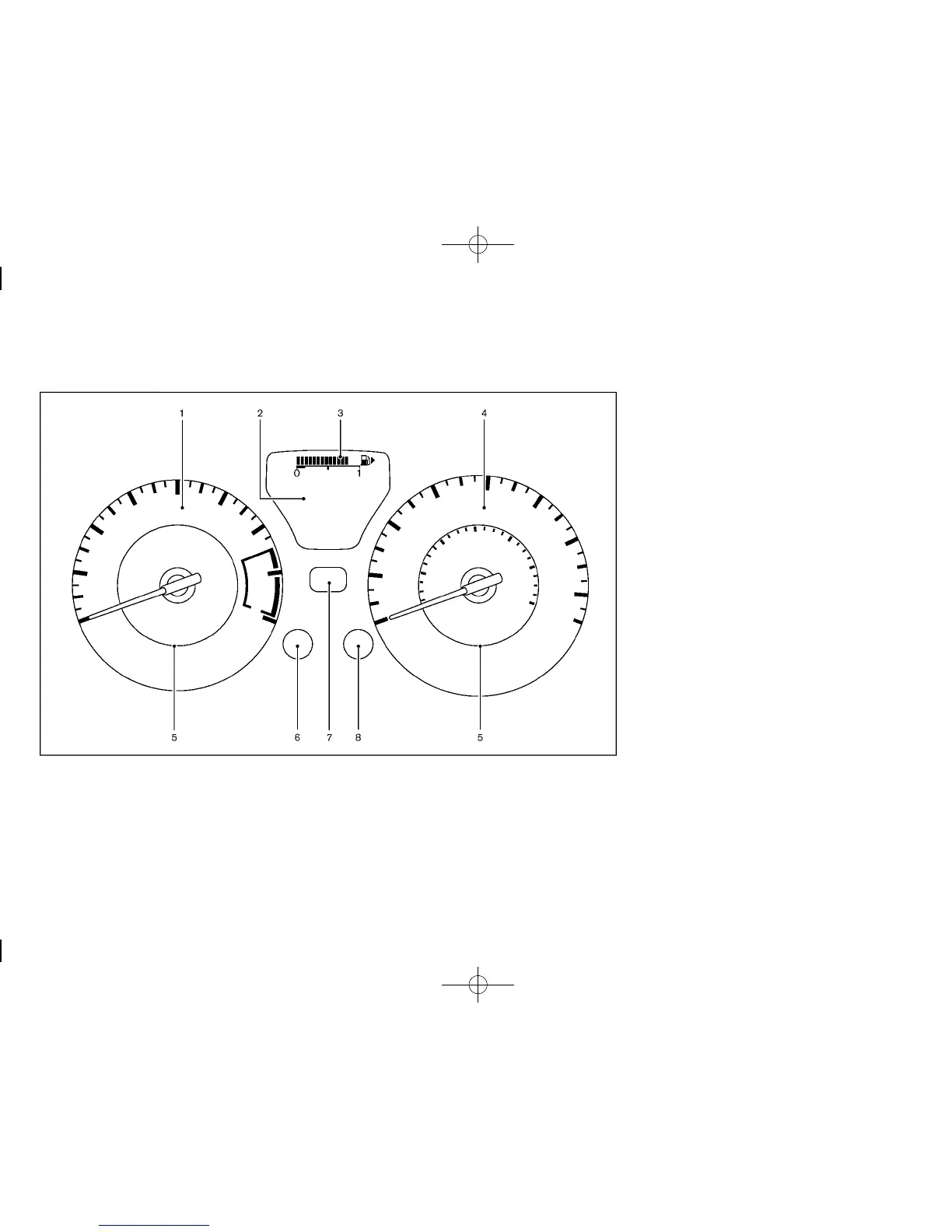

Type A (if so equipped)
1. Tachometer (P.2-9)
2. Vehicle information display (P.2-11)
— Odometer/twin trip odometer (P.2-7)
— Trip computer (P.2-13)
— Torque vectoring AWD (AWD model)
(P.2-14)
— Outside air temperature (P.2-12)
3. Fuel gauge (P.2-11)
4. Speedometer (P.2-7)
5. Warning/indicator lights (P.2-15)
6. Instrument brightness control knob (P.2-42)
7. Continuously Variable Transmission (CVT) posi-
tion indicator* (P.2-12)
8. RESET switch for trip odometer (P.2-7)/Trip
computer mode switch (P.2-13)
*: if so equipped
Illustrated table of contents 0-9
METERS AND GAUGES
