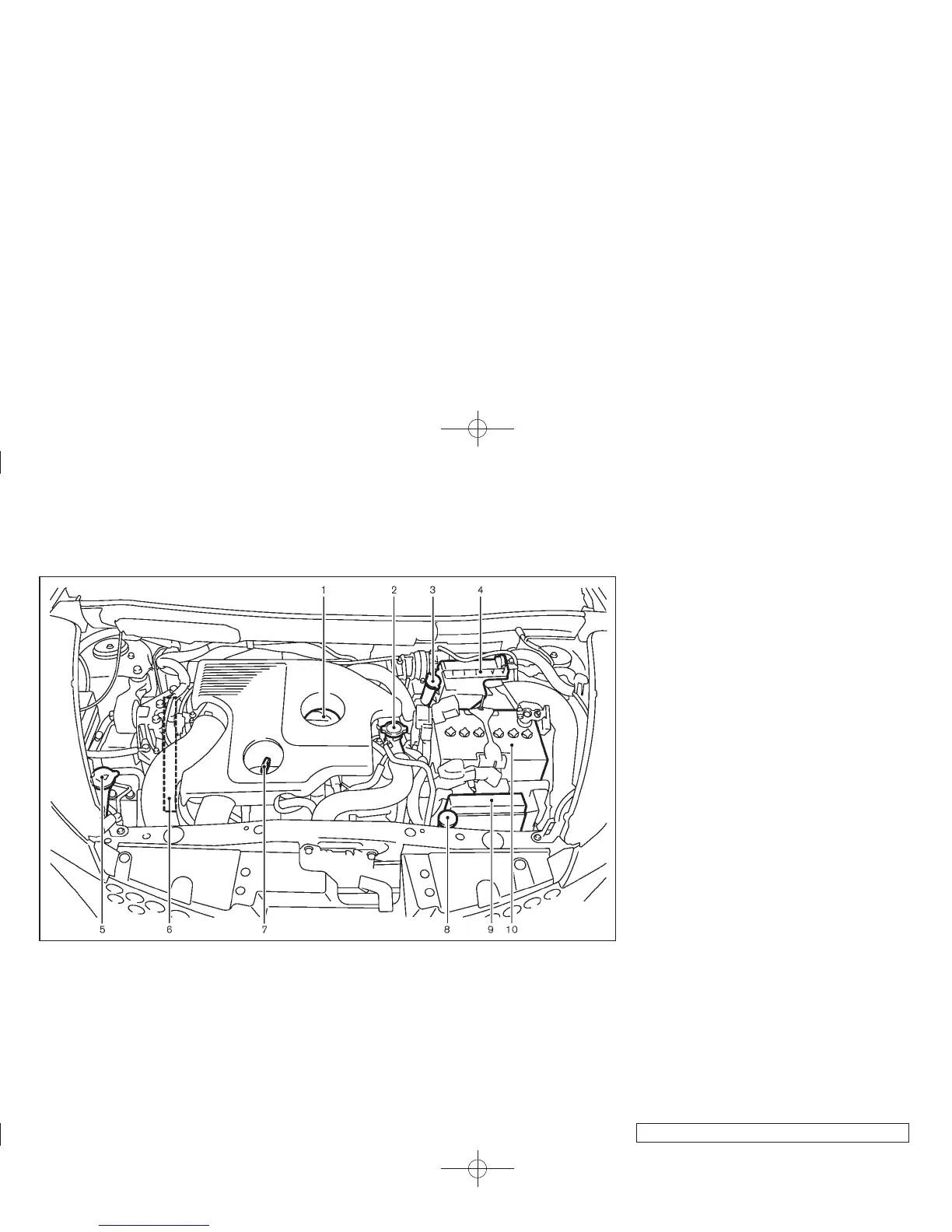

MR16DDT ENGINE
1. Engine oil filler cap (P.8-8)
2. Radiator filler cap (P.8-7)
— Vehicle overheat (P.6-9)
3. Brake and clutch* fluid reservoir (P.8-11)
4. Air cleaner (P.8-16)
5. Window washer fluid reservoir (P.8-12)
6. Engine drive belt location (P.8-14)
7. Engine oil dipstick (P.8-8)
8. Engine coolant reservoir (P.8-7)
9. Fuse/fusible link holder (P.8-19)
10. Battery (P.8-12)
— Jump starting (P.6-7)
*: for Ma nual Transmission (MT) models
ENGINE COMPARTMENT
Illustrated table of contents 0-9
