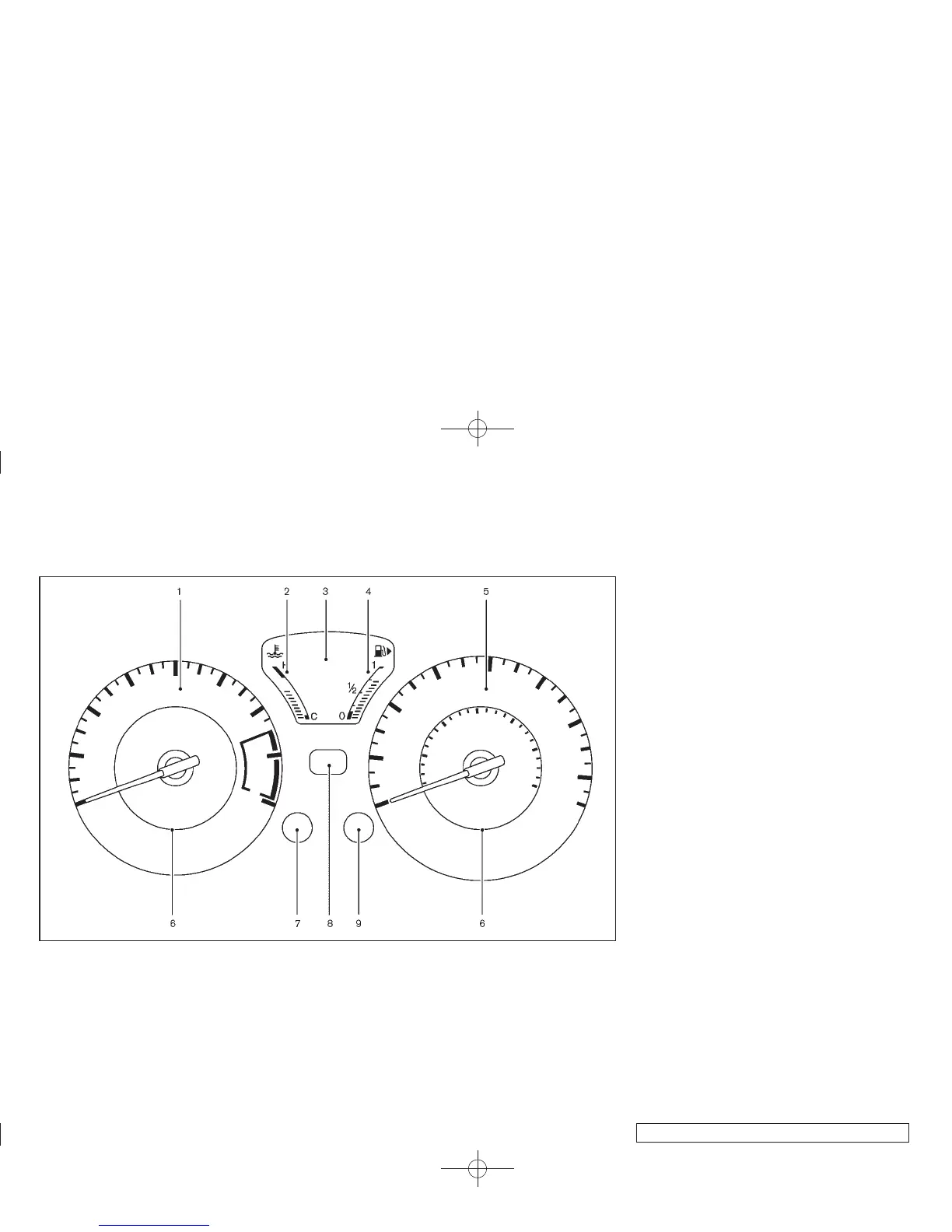

1. Tachometer (P.2-6)
2. Engine coolant temperature gauge (P.2-6)
3. Vehicle information display (P.2-8)
— Odometer/twin trip odometer (P.2-5)
— Trip computer (P.2-8)
— Outside air temperature (P.2-8)
4. Fuel gauge (P.2-7)
5. Speedometer (P.2-5)
6. Warning/indicator lights (P.2-11)
7. Instrument brightness control knob (P.2-36)
8. Continuously Variable Transmission (CVT) posi-
tion indicator* (P.2-8)
9. RESET switch for trip odometer (P.2-5)/Trip
computer mode switch (P.2-8)
*: if so equipped
