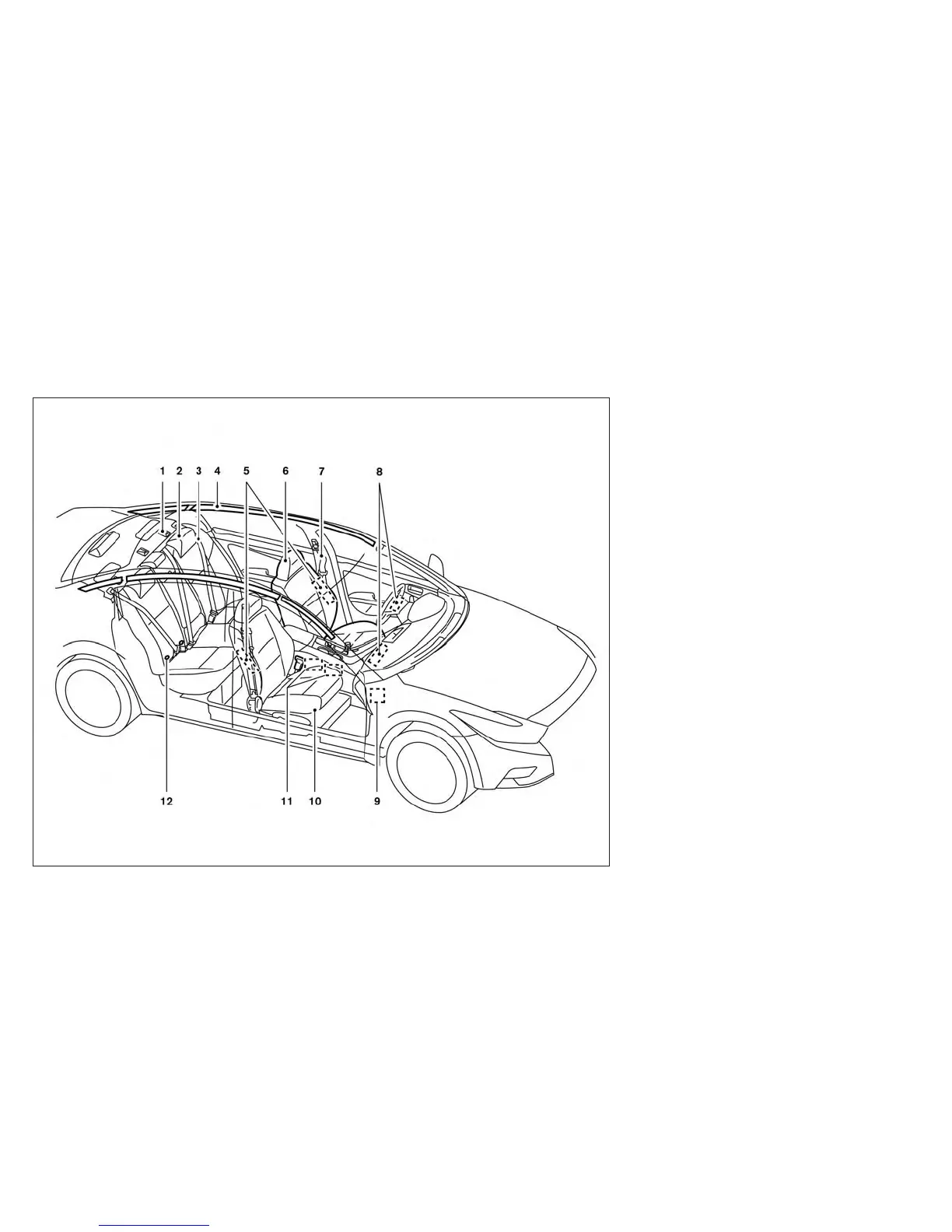

1. Top tether strap anchor (P. 1-21)
2. Rear head restraints/headrests (P. 1-6)
3. Rear seat belts (P. 1-11)
4. Roof-mounted curtain side-impact and
rollover supplemental air bag (P. 1-40)
5. Front seat-mounted side-impact
supplemental air bags (P. 1-40)
6. Front head restraints/headrests (P. 1-6)
7. Front seat belt with pretensioner and
shoulder height adjuster (P. 1-11, 1-40)
8. Supplemental front-impact air bags
(P. 1-40)
9. Door pressure sensor (passenger side
shown, driver’s side similar) (P. 1-40)
10. Seats (P. 1-2)
11. Occupant classification sensor
(weight sensor) (P.1-40)
12. LATCH (Lower Anchors and Tethers for
CHildren) system (P. 1-21)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2293
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2 Illustrated table of contents
