[ Edit: 2016/ 11/ 24 Model: E12-A ]
4-10 Monitor, Heater and air conditioner, and audio system
MANUAL AIR CONDITIONER
E12-A-120227-25D13BD8-07C1-48BA-B9F7-D1C519548620

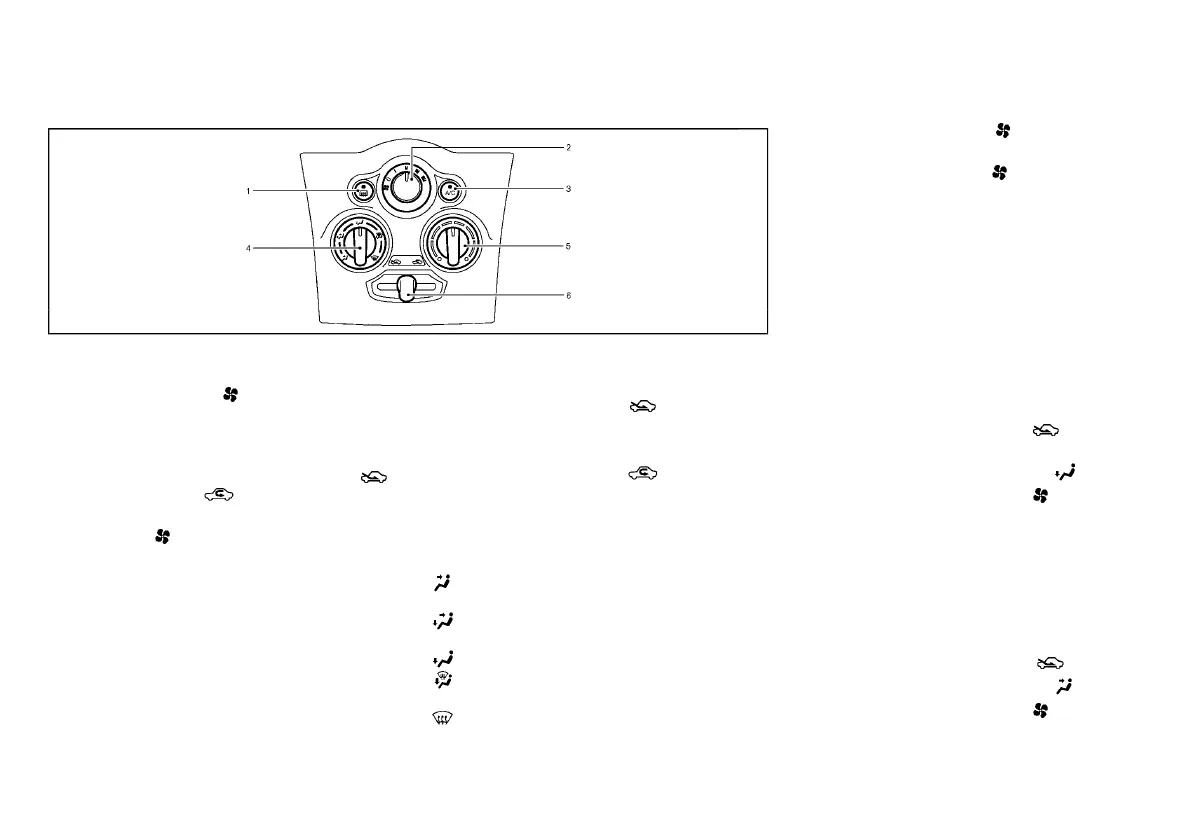

JVH0317X
1. Rear window defogger switch (See “Defogger
switch” (P.2-22).)
2. Fan speed control “
” dial
3. “A/C” (Air Conditioner) button
4. Air flow control dial
5. Temperature control dial
6. Air intake lever (Outside air circulation “
”
/Air recirculation “
”)
To turn off the heater and air conditioner, turn the fan
speed control “
” dial to the “OFF” (0) position.
NOTE:
The idling Stop System will not activate under
the following conditions:
. When the air flow control dial is in the front
defogger position and the fan speed control
dial is on
. When rear window defogger switch is turned
on
Controls
E12-A-120227-5F776D11-132F-4EB4-A15D-58854D597199
Outside air circulation:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
Move the air intake lever to the “ ” position. The air
flow is drawn from outside the vehicle.
Air recirculation:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
Move the air intake lever to the “ ” position. The air
flow is circulated inside the vehicle.
Air flow control:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
Turn the air flow control dial to change the air flow
mode.
— Air flows from the center and side
ventilators.
— Air flows from the center and side
ventilators and foot outlets.
— Air flows mainly from the foot outlets.
— Air flows from the defogger and foot
outlets.
— Air flows mainly from the defogger out-
lets.
Fan speed control:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
Turn the fan speed control “ ” dial clockwise to
increase the fan speed.
Turn the fan speed control “
” dial counterclock-
wise to decrease the fan speed.
Temperature control:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
Turn the temperature control dial to set the desired
temperature. Turn the dial between the middle and the
right position to select the hot temperature. Turn the
dial between the middle and the left position to select
the cool temperature.
Heater operation
E12-A-120227-BC21EB54-322E-4FD9-8651-6D9EEE148487
Heating:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
This mode is used to direct heated air to the foot
outlets.
1. Move the air intake lever to the “
” position for
normal heating.
2. Turn the air flow control dial to the “
” position.
3. Turn the fan speed control “
” dial to the
desired position.
4. Turn the temperature control dial to the desired
position between the middle and the hot (right)
position.
Ventilation:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
This mode directs outside air to the side and center
ventilators.
1. Move the air intake lever to the “
” position.
2. Turn the air flow control dial to the “
” position.
3. Turn the fan speed control “
” dial to the
desired position.
4. Turn the temperature control dial to the desired
position.
Condition:
