[ Edit: 2016/ 11/ 24 Model: E12-A ]

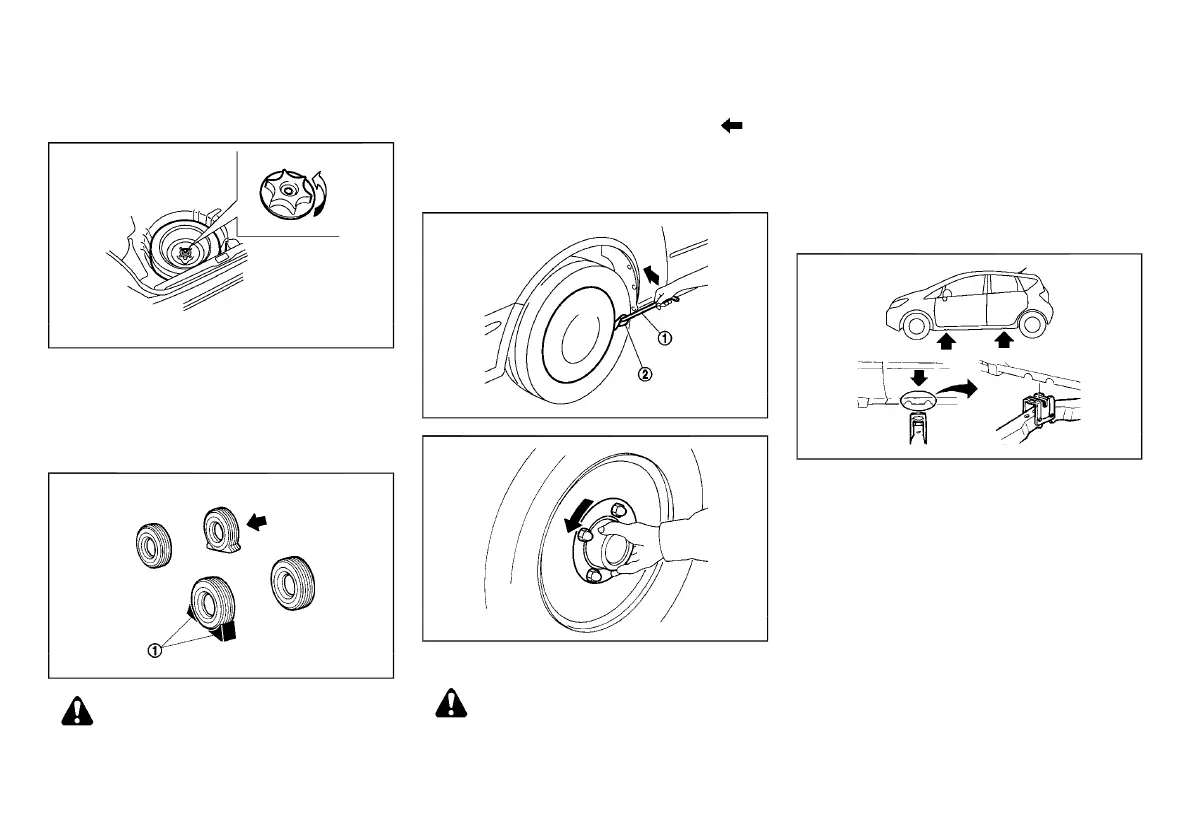

CHANGING FLAT TIRE (for model with spare
tire)
GUID-7CD89948-60AE-4137-BC03-FA17298E4863
SCE0913
Remove the jack, necessary tools and the spare tire
from the storage area.
If spacers are equipped, remove them before removing
the spare tire.
Blocking wheels
E12-A-120227-806C4C22-BE3D-4749-97AF-42C5472CE692
MCE0001A
WARNING:
Be sure to block the appropriate wheel to
prevent the vehicle from moving, which may
cause personal injury.
Place suitable blocks
*
1
at both the front and back of
the wheel diagonally opposite the flat tire
to
prevent the vehicle from moving when it is jacked up.
Removing tire
E12-A-120227-12FA0C13-4C9F-4E42-8735-BBF46287944D
Removing wheel cover (if equipped):
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
SCE0630
Type A
SCE0637
Type B
Type A:
WARNING:
Never use your hands to remove the wheel
cover. This may cause personal injury.
To remove the wheel cover, use the jack rod
*
1
as
illustrated.
Apply cloth
*
2
between the wheel and jack rod to
prevent damaging the wheel and wheel cover.
Type B:
Remove the center wheel cap as illustrated.
Jacking up vehicle:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
JVE0056X
jack-up points
In case of emergency 6-3
Condition:
